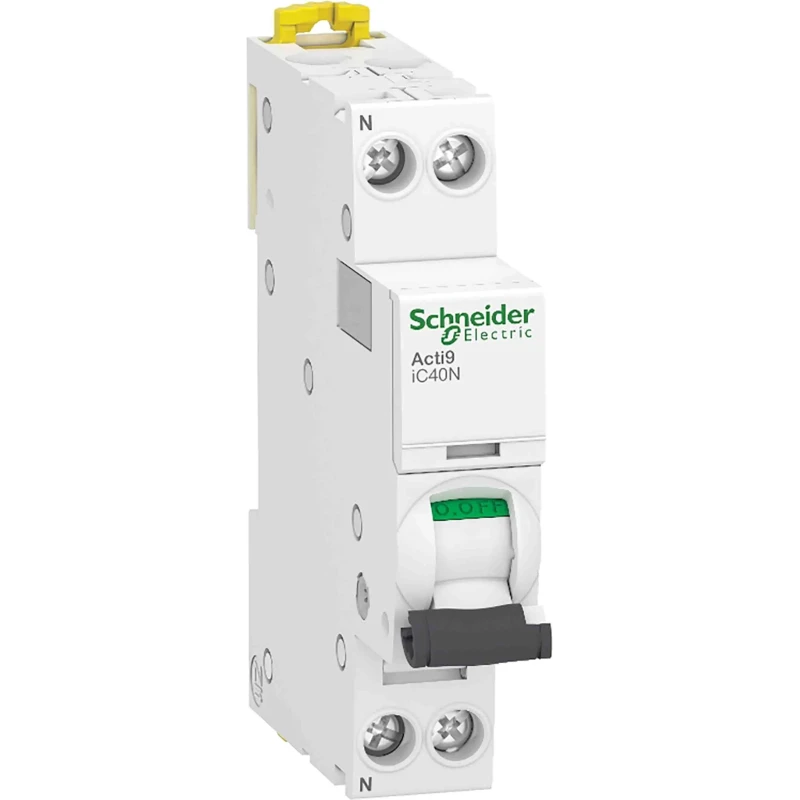

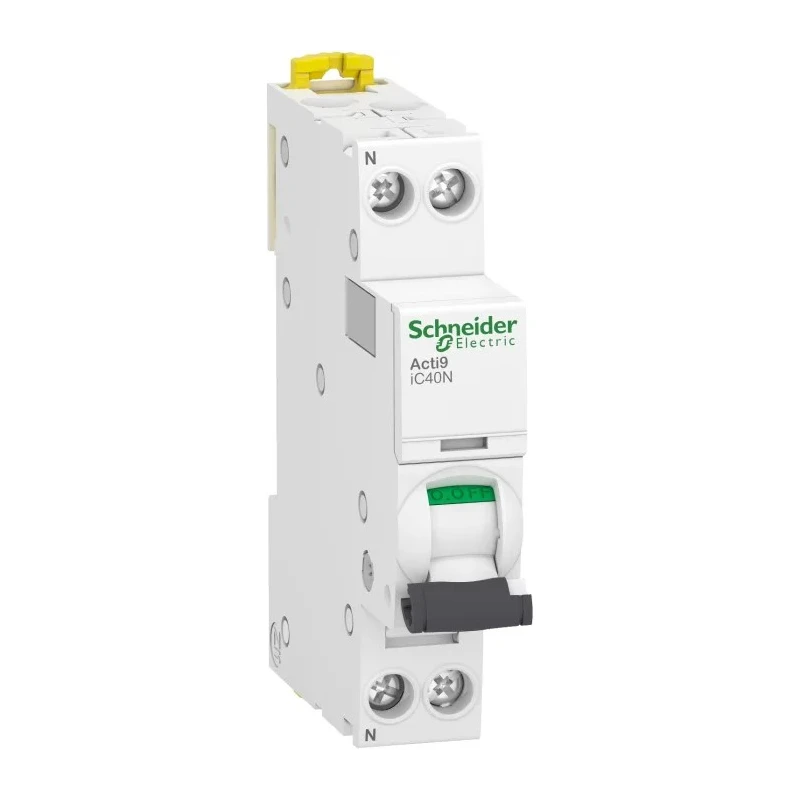

Schneider Electric Miniature Circuit Breaker, 1-Pole, 10A, Type AC, 230V AC, 6 kA Breaking Capacity Acti9

Schneider Electric A9P44610 model Acti9 Miniature Circuit Breaker (MCB) is a robust electrical protection device with a current rating of 10A, engineered to safely interrupt fault currents and protect electrical circuits. It operates at a rated voltage of 230V AC and exhibits a breaking capacity of 6 kA, making it suitable for a wide range of low voltage electrical applications.

This single pole breaker incorporates a thermal magnetic tripping mechanism. The thermal element protects against overload conditions by heating and bending a bimetallic strip, while the magnetic component provides rapid response to short circuits with instantaneous tripping. The mechanical toggle switch actuator allows manual switching and resetting after trip occurrences.

The breaker features tunnel type terminals which ensure reliable and secure conductor connections, compatible with DIN rail mounting systems, facilitating easy installation and maintenance in distribution boards and control panels. Its compact dimensions of 85mm height, 74mm depth, and 18mm width make it ideal for space-constrained electrical enclosures. The device meets multiple international standards including BV, CE, DNV, EN IEC 60898-1, and EN IEC 60947-2 ensuring compliance with safety and performance benchmarks.

The IP rating of IP40 on the front and IP20 on other sides provides protection against solid foreign objects and limited ingress of dust, improving reliability and longevity in indoor and controlled environments. This Miniature Circuit Breaker is primarily designed for industrial, commercial, and residential electrical distribution systems, ensuring efficient protection for wiring and connected equipment from damage due to overcurrent.

The breaker offers DIN rail mounting for installation convenience. Thermal magnetic tripping mechanism ensures dual protection for overload and short circuit. Toggle switch actuator facilitates manual reset and operation.

Compact footprint with precise dimensions supports panel integration. Complies with international electrical safety and quality standards. IP40/IP20 ratings protect against ingress of solid particles. Breaking capacity of 6 kA ensures interruption of high fault currents.

Tunnel type terminals enable secure conductor connections. Single pole design supports circuit segregation and safety. Suitable for diverse electrical distribution and protection applications. Explore further Schneider Electric circuit breakers and other premium electrical protection products on EnvMart for industrial and residential installations.
