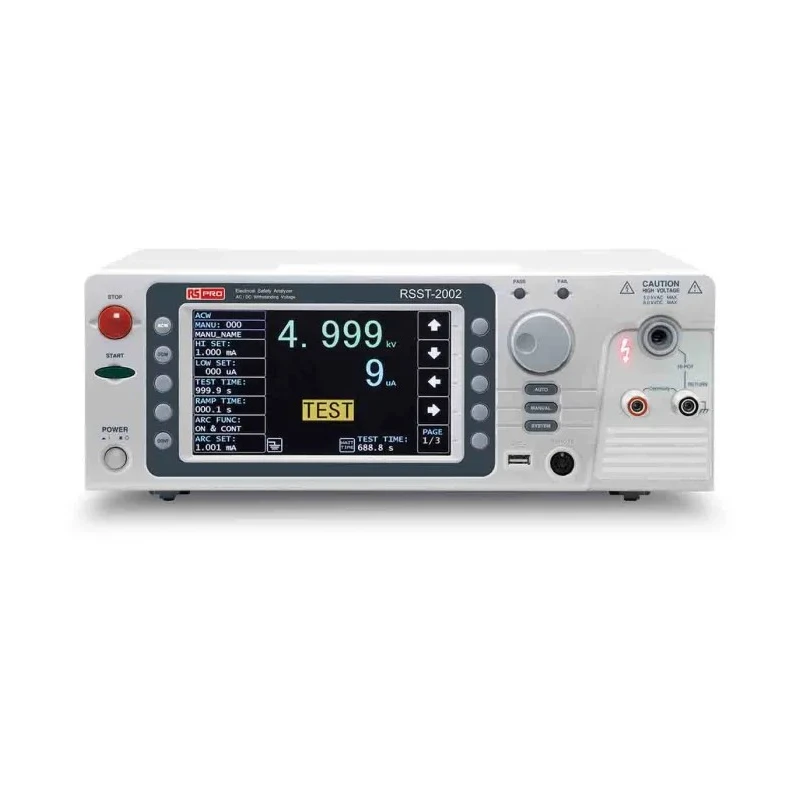

RS PRO Insulation Tester 50 V Min, 5000 V DC Max, 50 GΩ, LCD Backlight, CAT I RSST-2003

RS PRO RSST-2003 Insulation Tester is an advanced device designed for precise and reliable electrical safety analysis, suitable for industrial, laboratory, construction, and electrical maintenance contexts. Operating with a minimum test voltage of 50 V and a maximum test voltage of 5000 V DC, this model supports insulation resistance testing up to 50 GΩ and features an LCD backlight display for enhanced visibility.

The tester utilizes a high-efficiency PWM amplifier to maintain stable high voltage output regardless of fluctuating input voltages or distorted waveforms, ensuring accuracy and safety. With compliance to IEC 61010-2-034 standards, the double insulation design enhances user protection during high-voltage testing processes.

The device operates effectively within ambient temperatures of 0°C to 40°C, powered by a CR2032 battery with an expected life of two years, supporting reliable field use. Its compact dimensions (148 mm height, 380 mm width) and 13 kg gross weight make it suitable for both stationary and portable applications.

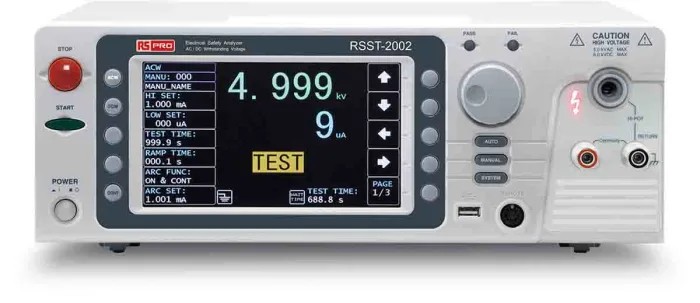

The RSST-2003 includes a 7-inch color TFT LCD which offers a clear interface for viewing test results and settings. The tester's functionality includes AC and DC withstanding voltage tests, ground bond tests, and grounding continuity tests, catering to comprehensive electrical safety assessments.

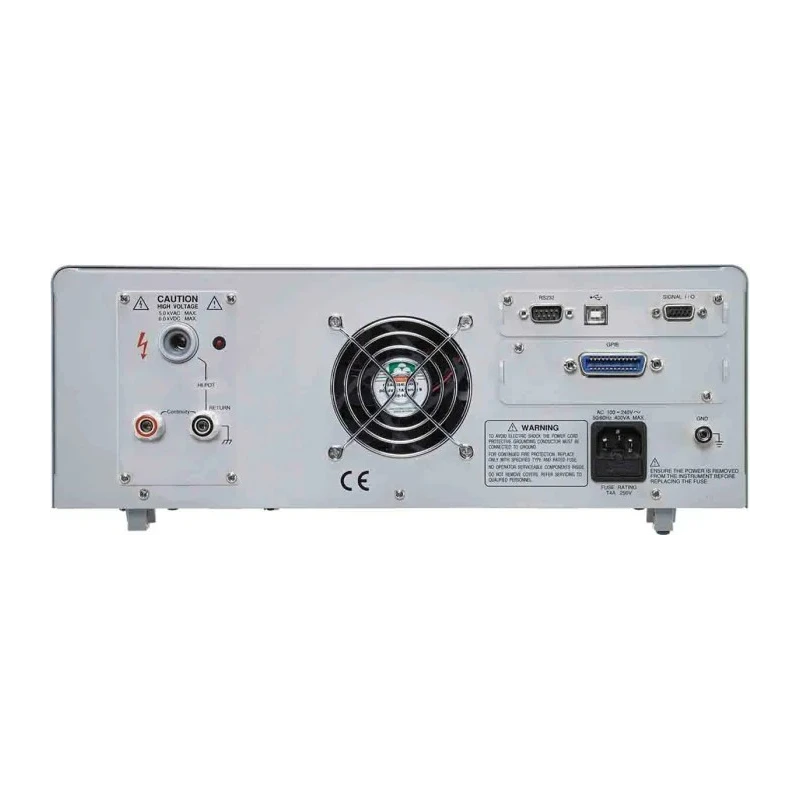

Additional features include 100 sets of manual test memory to store different test configurations and settings, rear output terminal for system integration, and front panel remote control terminal mount/rear. LED illumination and high-volume audio indicators provide essential alerts during ongoing tests and for test result judgments.

Equipped with a clear LCD backlight for easy readability. Supports testing voltages ranging from 50 V to 5000 V DC. Includes 40 mA test current capacity for accurate measurements. Battery powered with CR2032 for a lifespan of up to 2 years.

Operates effectively between 0°C to 40°C temperature range. Designed to comply with IEC 61010-2-034 double insulation safety standards. High-efficiency PWM amplifier ensures stable high-voltage output. Includes 7-inch color TFT LCD for clear test results display.

Features manual test memory for storing 100 test sets. Provides LED and audio indicators for test status and warnings.

This Insulation Tester is essential for electrical safety testing in industrial machines, HVAC systems, manufacturing, and electrical maintenance environments. To explore more products in insulation testing and electrical test measurement, browse the RS PRO collection and EnvMart's comprehensive range of measuring instruments.
