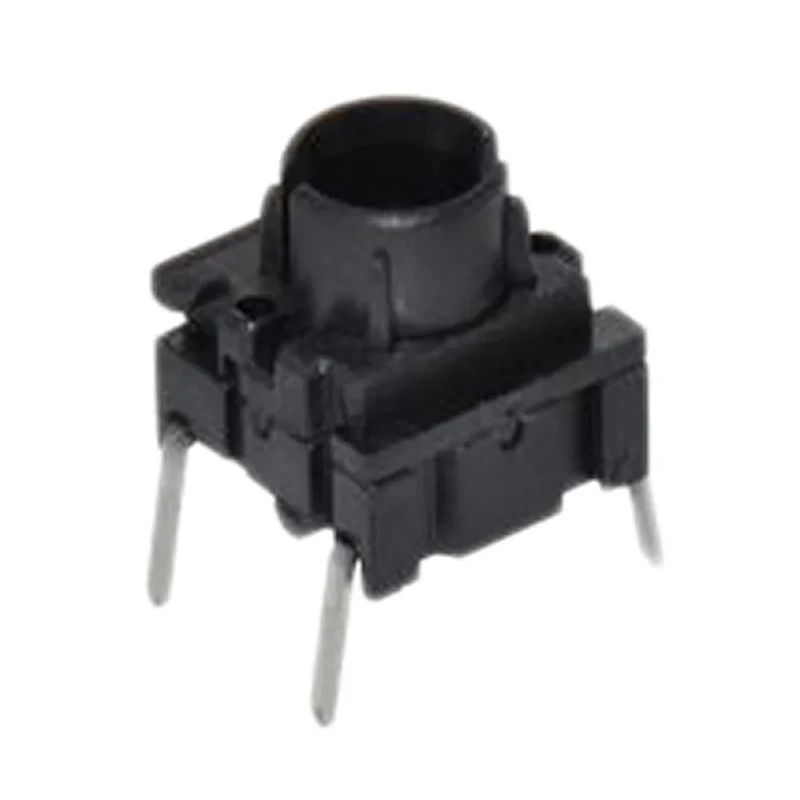

MEC IP67 Red Tactile Switch Side Cap, SPST, 50mA 24V DC Momentary PCB Mount

MEC 3FTH980 IP67 Red Tactile Switch Side Cap is a high-quality single-pole single-throw (SPST) momentary switch designed for printed circuit board (PCB) mounting. It is engineered for applications requiring reliable tactile feedback and robust environmental protection. The switch features a red-colored side cap actuator with a straight orientation that facilitates easy actuation. The design ensures a sealed IP67 rating which confirms its resistance against dust ingress and temporary water immersion, making it suitable for harsh industrial environments.

Operating specifications include a switch contact current rating of 50mA at 24 V DC, making it ideal for low voltage and low current circuits. The temperature range capability is from -40°C minimum to 160°C maximum, allowing usage in a wide variety of ambient conditions. The compact mechanical dimensions of length 12.5mm, width 10.4mm, and height 10mm support efficient space utilization on densely packed PCBs. The actuator requires an operating force of 3.5N, providing a consistent tactile feel. The mechanical life expectancy is rated at 10,000,000 operations guaranteeing long-term durability and performance reliability. The switch complies with RoHS standards ensuring environmentally responsible manufacturing. The product is part of MEC’s multimec® 3F series and is manufactured in Denmark, reflecting quality engineering and stringent manufacturing controls.

Red side cap actuator with straight orientation. SPST momentary operation for precise control. IP67 sealed for dust and water protection. Operating temperature range from -40°C to 160°C. Mechanical life of 10 million operations ensures long durability.

Compact size (12.5 x 10.4 x 10 mm) for PCB mounting. Operating force of 3.5N provides tactile feedback. Complies with RoHS environmental standards. Manufactured in Denmark under multimec® 3F series.

This tactile switch is well-suited for use in industrial automation, electrical control panels, consumer electronics, and other applications requiring reliable momentary switching with environmental resistance. Explore comprehensive ranges of Tactile Switches and electrical control components on EnvMart for all your industrial and electronic assembly needs.
