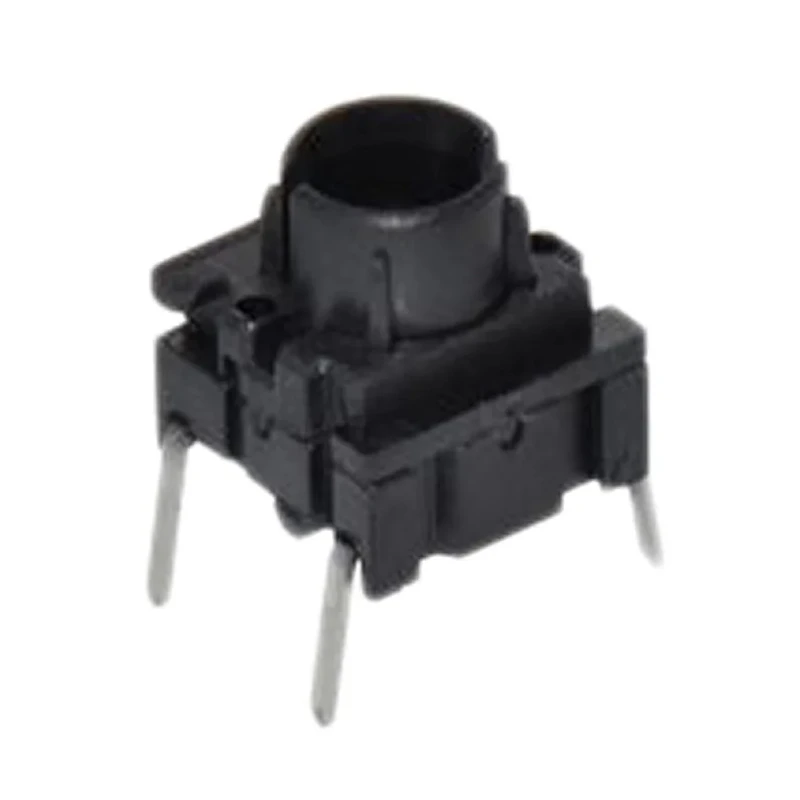

MEC IP67 Yellow Tactile Switch Side Cap, SPST 50mA 24V DC, PCB Mount
Specifications
| Country of Origin | Denmark |
|---|---|
| Brand | MEC |
| Height | 10mm |
| Length | 12.5mm |
| Model | IP67 |
| IP Rating | IP67 |
| Width | 10.4mm |
| Mount Type | PCB |
| Series | 3F |
| Maximum Operating Temperature | 160°C |
| Contact Configuration | SPST |
| Switch Configuration | (On)-Off |
| Minimum Operating Temperature | -40°C |
| Terminal type | Terminal |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Yellow |
| Contact DC Voltage | 24V dc |
| Actuator Style | Side Cap |
| Actuator Orientation | Straight |
| Switch Contact Current | 50mA |
| Operating Force | 3.5N |
| Mechanical Life | 10000000Operations |
Key Features
- The switch features a side cap actuator with a yellow color for easy identification.
- It has a Single Pole Single Throw (SPST) contact configuration supporting a current rating of 50mA.
- Designed to operate within a temperature range from -40°C to 160°C with IP67 ingress protection rating.
- The actuator is straight oriented, mounted on PCB, and has an operating force of 3.5N.
- The mechanical life expectancy of the switch is 10 million operations ensuring long-term reliability.
- It is illuminated and sealed for use in harsh environments.
Product Description
MEC 3FTH940 Yellow Tactile Switch is a high-quality, IP67 rated tactile switch with a side cap actuator specifically designed for PCB mounting applications.
This momentary switch provides reliable SPST (Single Pole Single Throw) operation with a contact current rating of 50mA at 24V DC, suitable for low voltage electronic devices and control panels.
The switch is illuminated and designed to withstand harsh industrial and automation environments, featuring a robust mechanical life of 10 million cycles and an operating force of 3.5 Newtons for consistent tactile feedback.
Operating temperature ranges from -40°C to a maximum of 160°C, making it suitable for both commercial and industrial electronics exposed to extreme conditions. Its IP67 sealing ensures dust-tight protection and resistance to water ingress, enhancing durability and longevity in demanding settings.
The compact form factor measures 12.5mm in length, 10.4mm in width, and 10mm in height, with a straight side cap actuator colored yellow to facilitate easy identification and sorting during assembly.
Manufactured in Denmark, this tactile switch is RoHS compliant and conforms to industry standards for quality and safety. It is ideal for use in various industrial, commercial, automation, electronic manufacturing, and laboratory equipment applications.
The switch features a side cap actuator with a yellow color for easy identification. It has a Single Pole Single Throw (SPST) contact configuration supporting a current rating of 50mA. Designed to operate within a temperature range from -40°C to 160°C with IP67 ingress protection rating.
The actuator is straight oriented, mounted on PCB, and has an operating force of 3.5N. The mechanical life expectancy of the switch is 10 million operations ensuring long-term reliability. It is illuminated and sealed for use in harsh environments.
Dimensions of the switch are 12.5mm length, 10.4mm width, and 10mm height, compact for PCB integration. Explore the MEC range of Tactile Switches on EnvMart for reliable components suitable for your electronic designs and industrial automation requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a Single Pole Single Throw (SPST) contact configuration.
The maximum operating temperature is 160°C.
The switch has an IP67 ingress protection rating, ensuring dust-tight protection and resistance to water ingress.
The mechanical life expectancy is rated at 10 million operations.
The switch measures 12.5mm in length, 10.4mm in width, and 10mm in height.
The operating force is 3.5 Newtons.
It is designed for PCB mounting.
The contact current rating is 50mA at 24V DC.
This tactile switch is manufactured in Denmark.
The minimum operating temperature is -40°C.
It is RoHS compliant, conforming to industry standards for quality and safety.
It features a side cap actuator colored yellow for easy identification.
