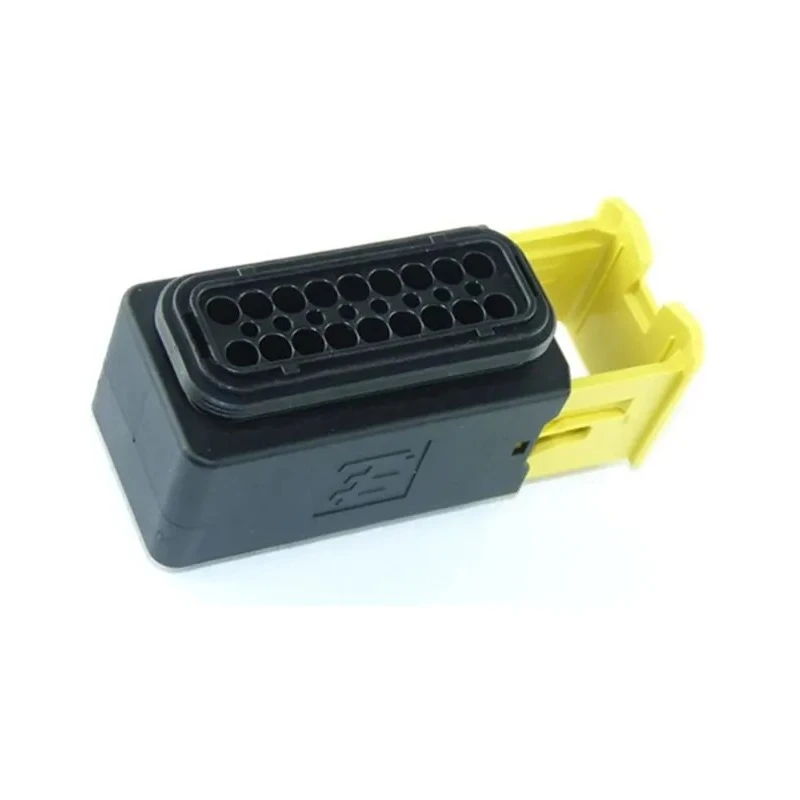

TE Connectivity HDSCS Automotive Connector Female Black Plug-in 18 Way Crimp Termination 40A 1-1563759-1

TE Connectivity 1-1563759-1 HDSCS Automotive Connector is a female black plug-in connector with 18 ways designed for crimp termination, providing reliable electrical connections in harsh automotive environments. Rated for 40A current, this connector features a robust housing made of Polybutylene Terephthalate that withstands operating temperatures from -40°C up to 140°C, ensuring durability and longevity under high vibration and mechanical stress conditions.

The connector includes integrated secondary locking for secure contact retention and a slide locking mechanism that facilitates easy mating and unmating, providing an audible click to confirm full locking engagement. Its design includes polarization and keying features to prevent mismating, and the low mating force enhances usability.

With IP67 and IP6K9K ratings, the connector is protected against dust ingress and water jets, making it suitable for use in commercial vehicles including trucks, buses, off-road, construction, agricultural, mining, emergency, forestry, recreational, marine, and motorcycle applications.

This HDSCS series connector supports wire-to-wire electronic and electrical connections and is compatible with AMP MCP 1.5K crimp contacts, which must be purchased separately. The connector's compact dimensions (height 31.3 mm, width 25.7 mm, depth 67.2 mm) and 2-row configuration make it adaptable to various vehicle wiring harness assemblies.

High reliability in high vibration automotive environments. IP67 and IP6K9K protection for dust and water resistance. Integrated secondary locking for contact retention with audible click. Slide lock facilitates secure mating and unmating.

Polarization and keying prevent mismating errors. Wide operating temperature range from -40°C to 140°C. Compliant with EU ELV and RoHS environmental standards.

These connectors are ideal for industrial, commercial, and off-road vehicle use, contributing to secure electrical systems across a broad range of automotive applications. Browse our selection of TE Connectivity Automotive Connectors on EnvMart for reliable vehicle electrical component solutions.
