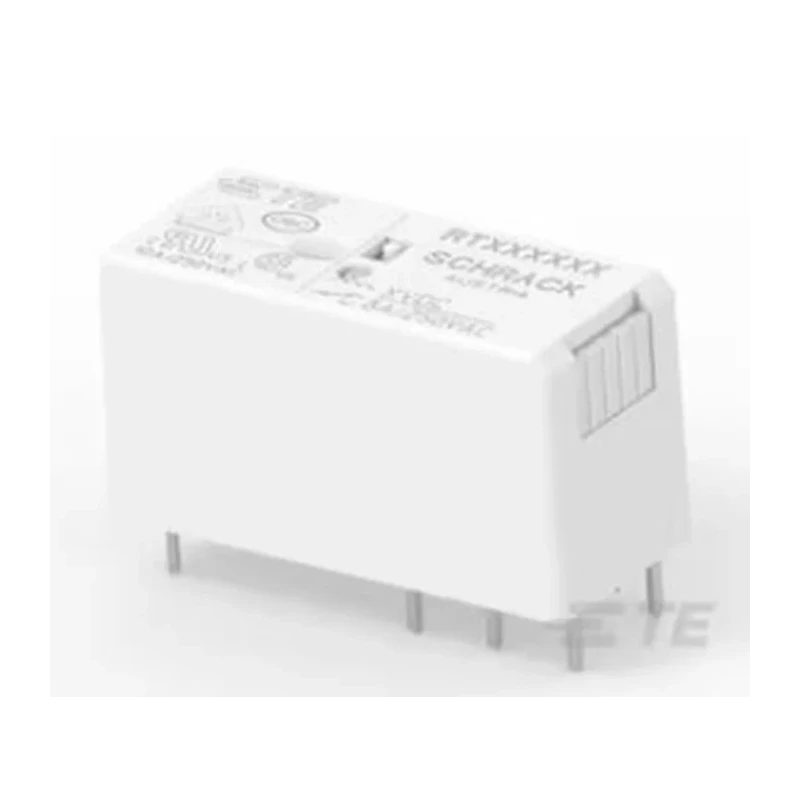

TE Connectivity PCB Power Relay 24V DC Coil 8A Switching Current DPDT RTE24024

TE Connectivity RTE24024 PCB Power Relay 24V DC Coil 8A Switching Current DPDT is designed for reliable switching in automation, domestic heating, security lighting, and various industrial control systems.

This RT2 series non-latching relay actuates with a 24V DC coil voltage and provides durable performance with a contact configuration of DPDT. It features solder-type terminals optimized for PCB mounting, allowing for secure and stable connections.

The relay contacts are made from silver nickel alloy providing excellent conductivity and wear resistance. With a switching capacity of up to 8A and switching AC voltage tolerance of 400V, it fulfills requirements for low power general purpose applications.

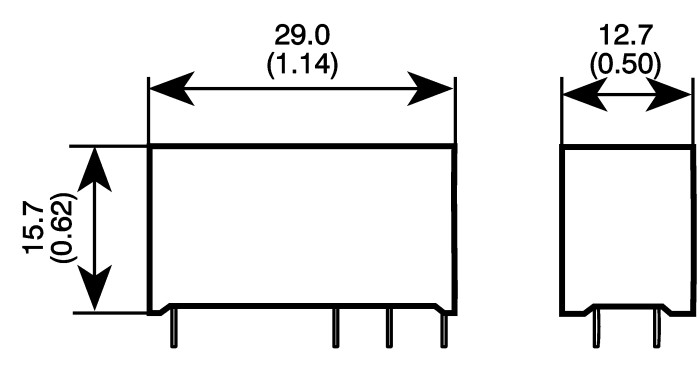

Its compact form factor measures 29mm in length, 12.7mm in width, and 15.7mm in height, making it suitable for space-constrained environments. The device operates reliably in temperatures ranging from -40°C to 85°C and meets RoHS environmental standards, ensuring compliance with current regulations.

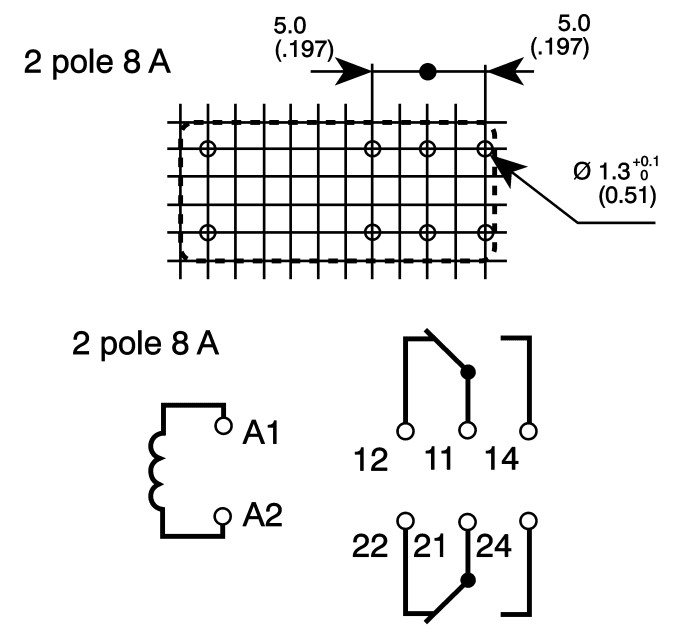

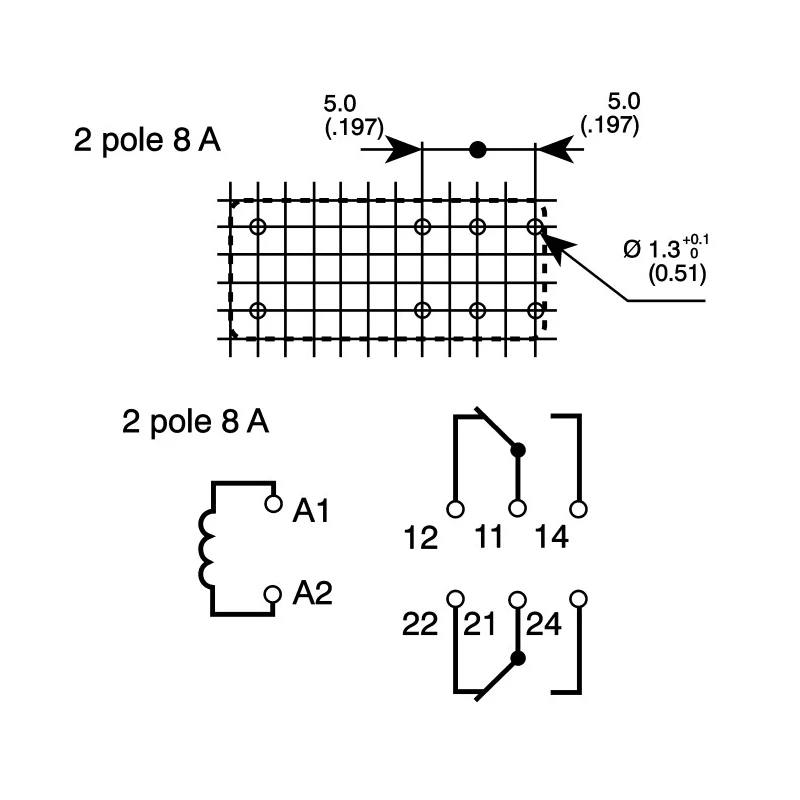

The coil resistance is precisely 1.4kΩ, consuming 400mW of power, ensuring efficient and stable coil excitation. The relay pins follow a 5mm pitch, supporting through-hole PCB mounting techniques for industrial and commercial automation equipment.

Applications include automation control systems, domestic heating equipment, interface modules, and security lighting systems requiring dependable power relay switching. Manufactured in Austria, the product maintains stringent quality controls and approvals including CSA, UL, and VDE certifications.

The relay coil operates at 24V DC voltage with a coil resistance of 1.4kΩ. It features a double-pole double-throw (DPDT) contact configuration with silver nickel alloy contacts. The relay supports a switching current of 8A and an AC switching voltage up to 400V.

Its compact dimensions of 29mm length, 12.7mm width, and 15.7mm height ensure easy integration on PCBs. Operational temperature ranges from -40°C minimum to a maximum of 85°C, making it suitable for demanding environments.

Complies with RoHS standards and is manufactured in Austria maintaining high quality. The terminal type is solder, and it has a coil power consumption of 400mW. Its pinning layout uses a 5mm pitch suitable for through-hole mounting applications.
