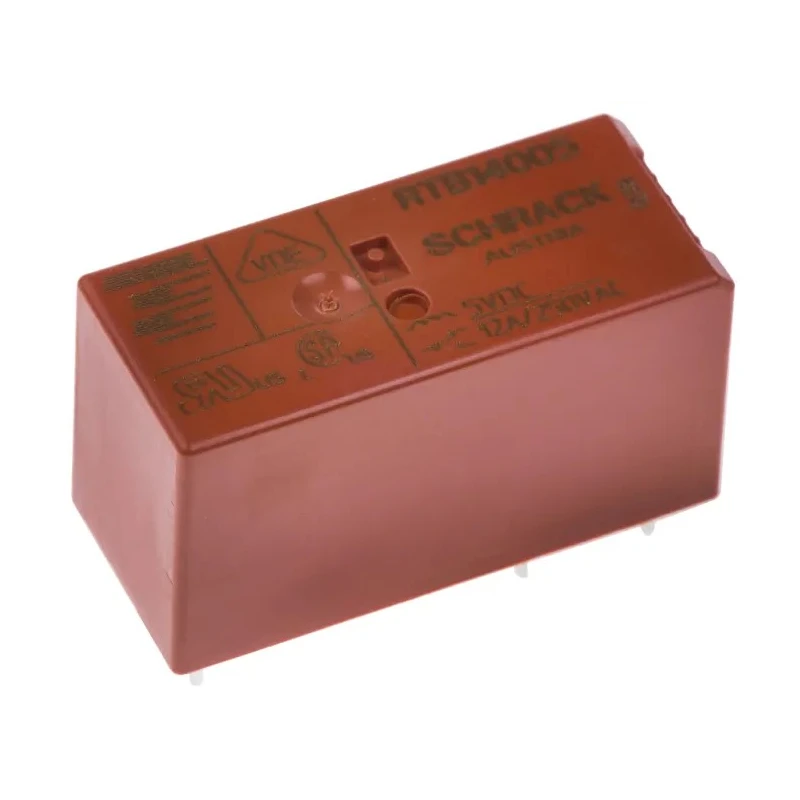

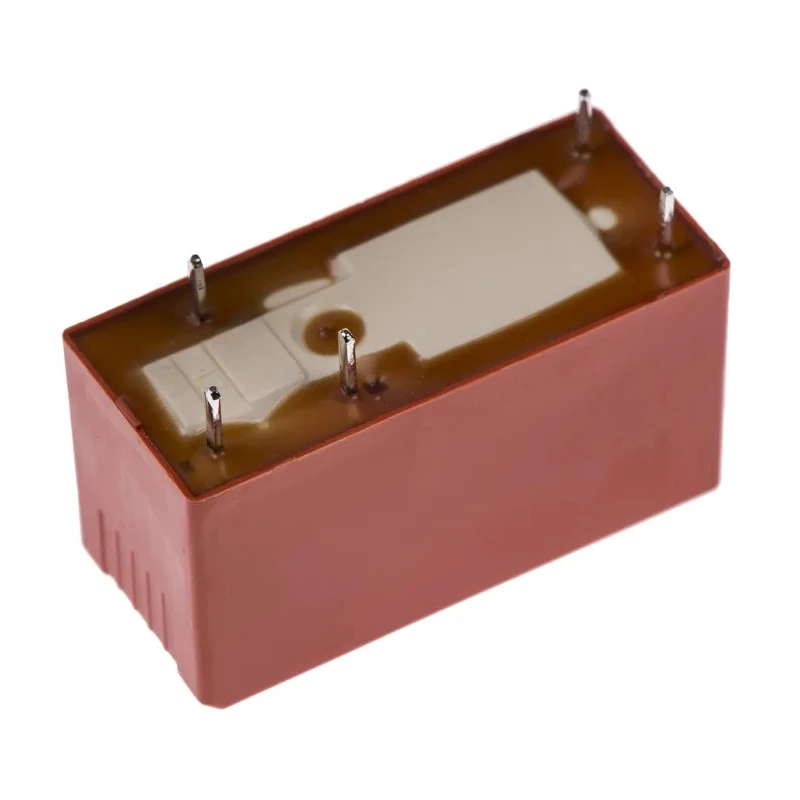

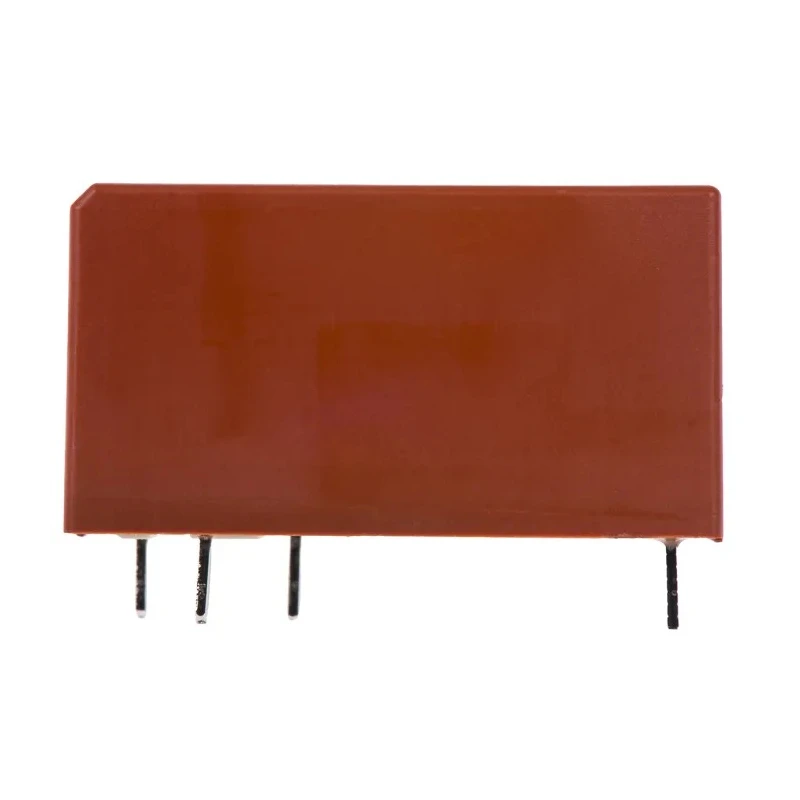

TE Connectivity PCB Power Relay 5V DC Coil 12A Switching Current SPDT RTB14005
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTB14005 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Solder |
| Standards/Approvals | RoHS, IEC 61810 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 198-6927Brand: TE ConnectivityManufacturers Part No.: RTB14005Distrelec Article No.: 301-67-743 |
| Coil Resistance | 62Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 500mW |
Key Features

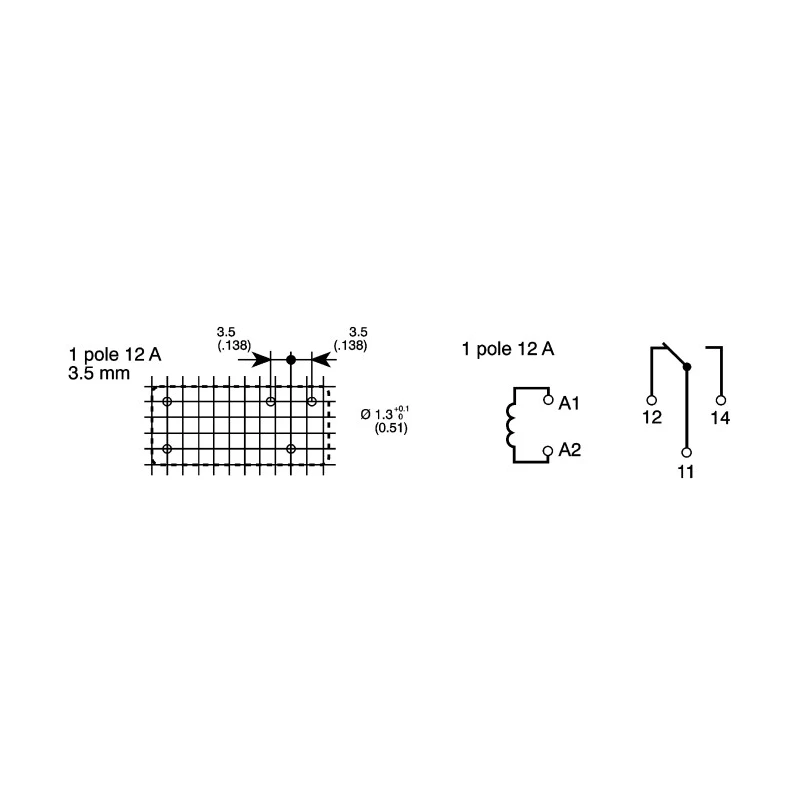

- Designed for through-hole PCB mounting with 3.5mm pin pitch and solder terminals.
- Operates within temperature range from -40°C to 85°C ensuring durable performance.
- Switching power rating up to 3kVA and switching AC voltage up to 400V AC.
- Constructed with silver nickel alloy contacts for reliable conductivity and durability.
- Coil resistance of 62 ohms and coil power consumption of 500 mW for efficient operation.
- Meets RoHS compliance and IEC 61810 standards for quality and environmental safety.
- Applications include interface circuits, automation systems, domestic electronics, security lighting, and heating control.
Product Description
TE Connectivity RTB14005 is a high-quality PCB power relay designed for reliable switching applications requiring a 5V DC coil voltage and 12A switching current capacity. The Single Pole Double Throw (SPDT) contact configuration allows versatile circuit control on printed circuit boards.
This relay belongs to the RT1 series, characterized by through-hole mounting with 3.5mm pin spacing and solder terminal type, making it suitable for automated assembly processes. Its compact size, with dimensions measuring 29mm length, 15.7mm height, and 12.7mm width, ensures compatibility with space-constrained designs.
It operates efficiently across a wide temperature range from -40°C to 85°C, suitable for industrial, laboratory, HVAC, manufacturing, and automation environments. The coil resistance of 62 ohms and coil power of 500 mW make the relay energy-efficient.
The relay contacts, made of silver nickel alloy, provide consistent conductivity and durability. Rated for switching power up to 3 kVA and AC switching voltage up to 400V AC, it is ideal for interface circuits, security lighting control, heating systems, and various domestic electronic applications.
This product complies with RoHS directives and IEC 61810 standards, ensuring environmental friendliness and reliability under standard conditions. The relay is made in Austria, guaranteeing quality manufacturing standards.
Designed for through-hole PCB mounting with flux proof pinning. Wide operating temperature range for versatile applications. High switching current and power capabilities support demanding loads. Silver nickel alloy contacts ensure long-term reliability.
Compact form factor enables easy PCB integration. Compliant with international standards for safety and environmental protection. Applicable across industrial automation, domestic use, and heating control systems. Explore the full range of TE Connectivity Power Relays at EnvMart for efficient electronics and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RTB14005 relay has a switching current capacity of 12A.
This model operates with a coil voltage of 5V DC.
The dimensions of this relay are 29mm in length, 15.7mm in height, and 12.7mm in width.
The maximum switching AC voltage for the RTB14005 is 400V AC.
It features a Single Pole Double Throw (SPDT) contact configuration.
The coil resistance of this relay is 62 ohms.
The coil power consumption is 500 mW.
It operates within a temperature range from -40°C to 85°C.
The contacts are constructed from silver nickel alloy, ensuring reliable conductivity.
Yes, it meets RoHS compliance and IEC 61810 standards for quality and environmental safety.
This relay is designed for through-hole PCB mounting with a 3.5mm pin pitch.
It is suitable for interface circuits, automation systems, domestic electronics, security lighting, and heating control.
