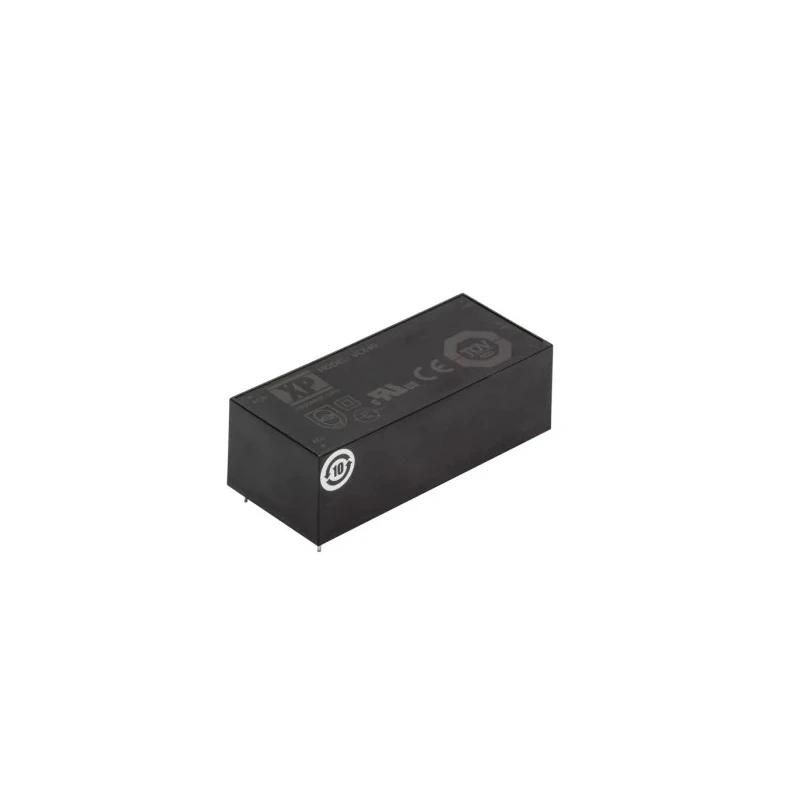

XP Power Switching Power Supply 48V dc 40W PCB Mount VCE40US48

XP Power VCE40US48 Switching Power Supply is a 48V dc, 40W output PCB mount power supply designed for low cost Information Technology Equipment (ITE), industrial, and domestic uses. It supports a broad input voltage range of 85 to 305 VAC making it versatile for global applications. Its efficient design achieves 85% efficiency with reliable single output power of 820mA current.

This power supply operates safely within a wide temperature range from -25°C to 70°C allowing stable operation under different environmental conditions. The physical dimensions are compact with length 87.9mm, width 38.1mm, and depth 28.5mm, making it suitable for PCB mounting and space-constrained assemblies.

Designed according to world-wide safety standards including IEC 60950-1, IEC 60335-1, EN 62368-1, and UL 62368-1, the unit adheres to requirements for both industrial and household applications. Its Class II construction and immunity compliant with EN55035 ensure electromagnetic compatibility and user safety.

Weighing only 190 grams, the VCE40US48 can be easily integrated into diverse equipment requiring a reliable DC power source. Its open frame and encapsulated PCB options provide flexibility for different designs and levels of protection.

Typical use cases include industrial instruments, household electronic devices, and low cost IT equipment. The product is manufactured in China under XP Power’s VCE40 series known for dependable performance in switching power supplies.

Delivers a maximum output voltage of 48V dc and power rating of 40W. Single output with SMPS output current of 820mA. Wide input voltage range of 85 to 305 VAC for versatility. Compact PCB mount type for small footprint applications.

Works reliably from -25°C to 70°C operating temperature range. Certified to multiple international standards ensuring safety and quality. High efficiency of 85% reduces energy usage and thermal stress. Lightweight, weighing 190g for easy installation.

Class II power supply with EN55035 immunity. Suitable for industrial, domestic, and ITE applications. Explore more XP Power Switching Power Supplies and related products at EnvMart to find the ideal power solution for your industrial or commercial needs.
