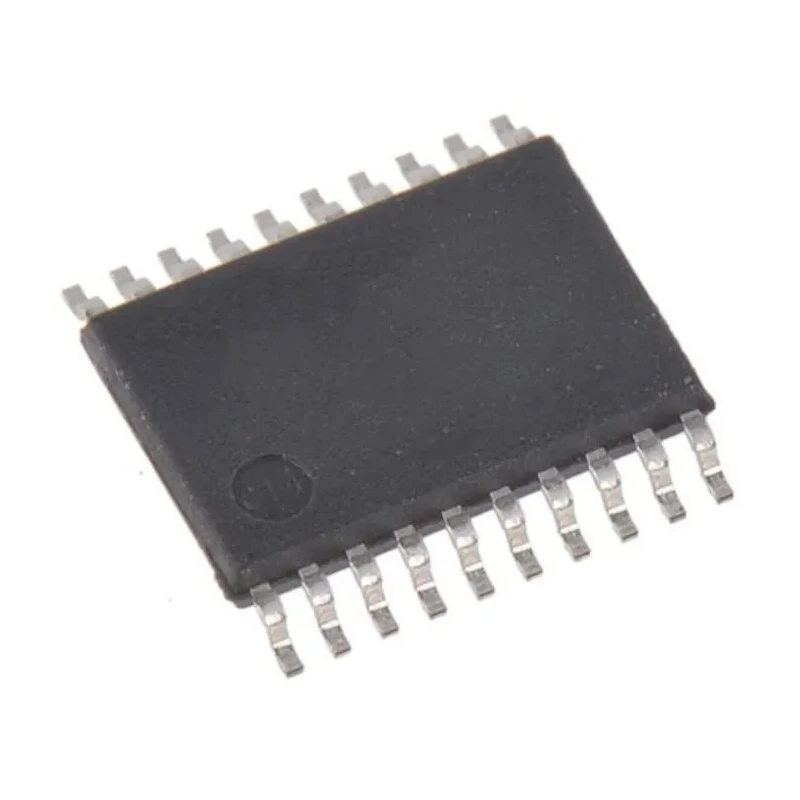

STMicroelectronics 32-Bit ARM Cortex M0+ Microcontroller 32 MHz 32kB Flash 20-Pin TSSOP STM32L031F6P6

STMicroelectronics STM32L031F6P6 is a 32-bit ARM Cortex M0+ microcontroller operating at 32 MHz designed for embedded system applications requiring low power consumption and high performance. This STM32L0 series MCU comes in a 20-pin TSSOP package with compact dimensions of 6.6mm length, 4.5mm width, and 1.05mm height, suitable for space-constrained electronics designs.

The device integrates 32kB of Flash program memory, 1kB of RAM, and 1kB data EEPROM to support a variety of software implementations with memory protection and flexibility. It operates on a supply voltage range from 1.65V up to 3.6V enabling efficient power management for battery-operated and portable equipment.

This microcontroller includes two analogue comparators, a 12-bit ADC with hardware oversampling, and a variety of timers such as one low-power timer (LPTIM) and three general-purpose 16-bit timers, making it well-suited for precision measurement, sensor interface, and timing control applications. Its 38 programmable I/Os enable diverse peripheral connectivity and configuration.

Designed with an ARM Cortex M0+ core using RISC architecture, the unit delivers efficient processing performance at 32 MHz while maintaining ultra-low power consumption. It supports standard industrial operating temperatures from -40°C to 85°C, assuring robust operation in harsh environments.

Power dissipation is rated to a maximum of 333mW under typical operating conditions. The package and mounting type are surface mount (TSSOP), facilitating easy integration into modern PCB assembly workflows.

Manufactured in the Philippines, the STM32L031F6P6 conforms to industry standards but does not carry specific automotive certification. It is ideal for applications in industrial control, consumer electronics, medical devices, and IoT systems needing compact, low power, and flexible microcontrollers.

High-performance ARM Cortex M0+ core at 32 MHz frequency. 32kB Flash memory with 1kB RAM plus 1kB data EEPROM. Two analogue comparators and 10 channels of 12-bit ADC with oversampling. Multiple timers including low-power and general purpose options.

Wide operating voltage range (1.65V to 3.6V) and temperature range (-40°C to 85°C). 38 programmable I/Os for versatile interface capabilities. Compact 20-pin TSSOP package, surface mount technology. Maximum power dissipation of 333mW for efficient thermal management.

Designed and manufactured in the Philippines ensuring quality standards. Explore more Microcontrollers similar to STM32L031F6P6 in the semiconductor category on EnvMart for your electronic design and prototyping needs.
