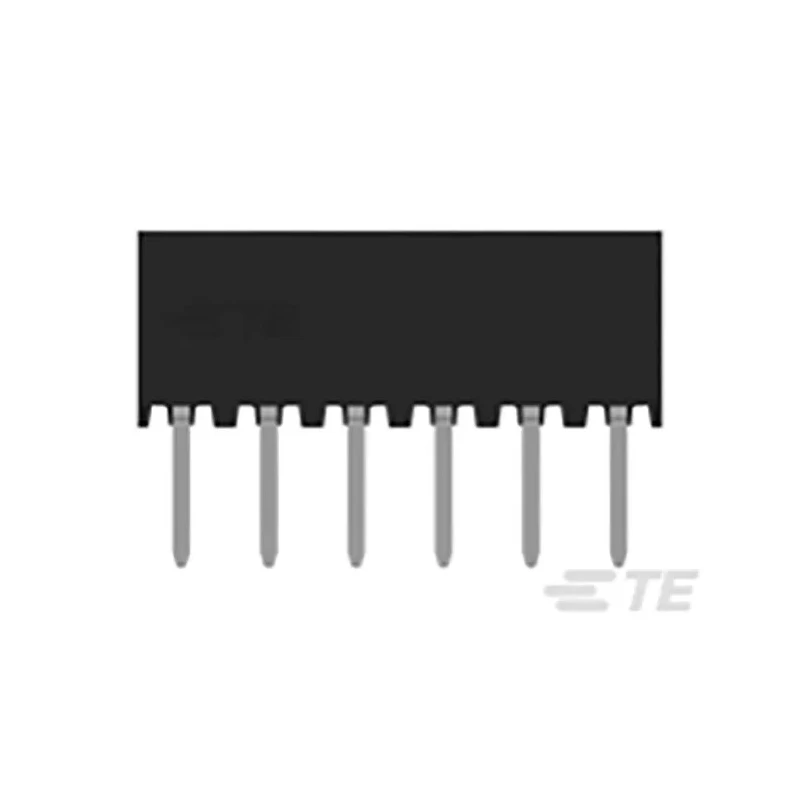

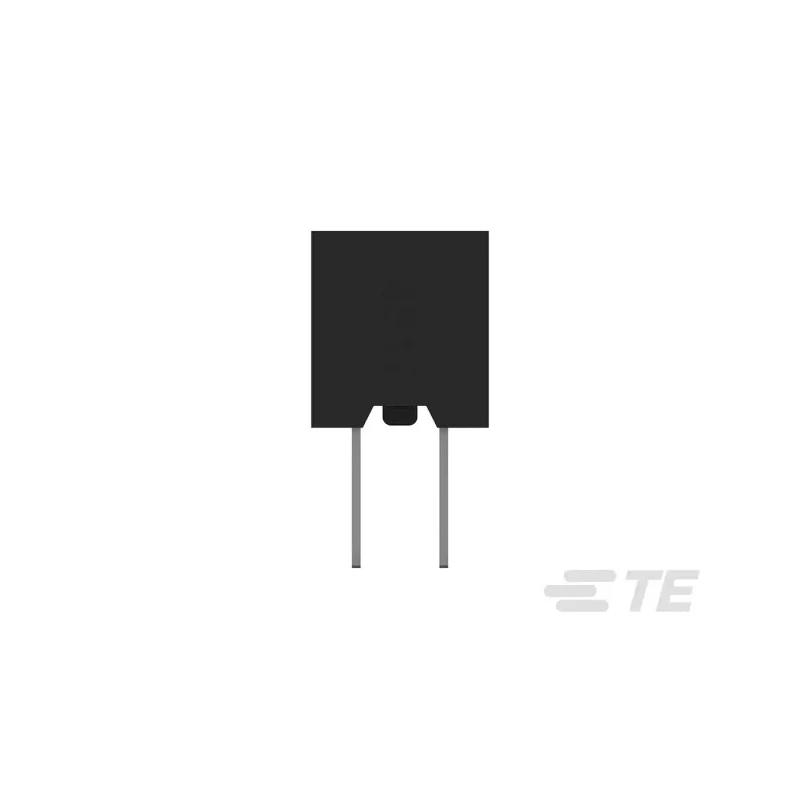

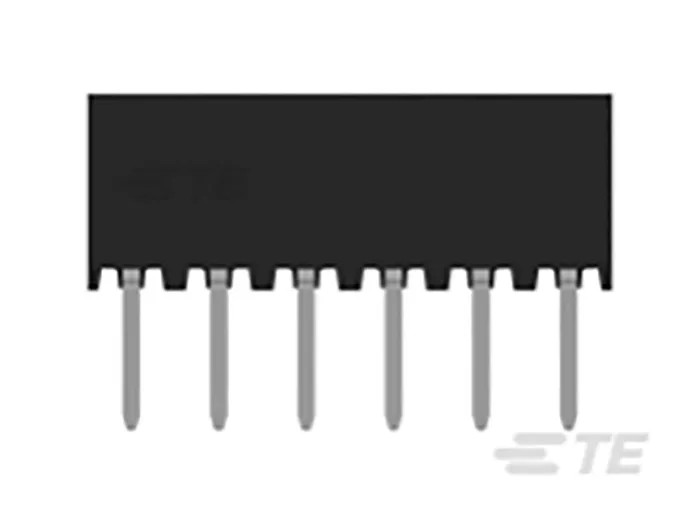

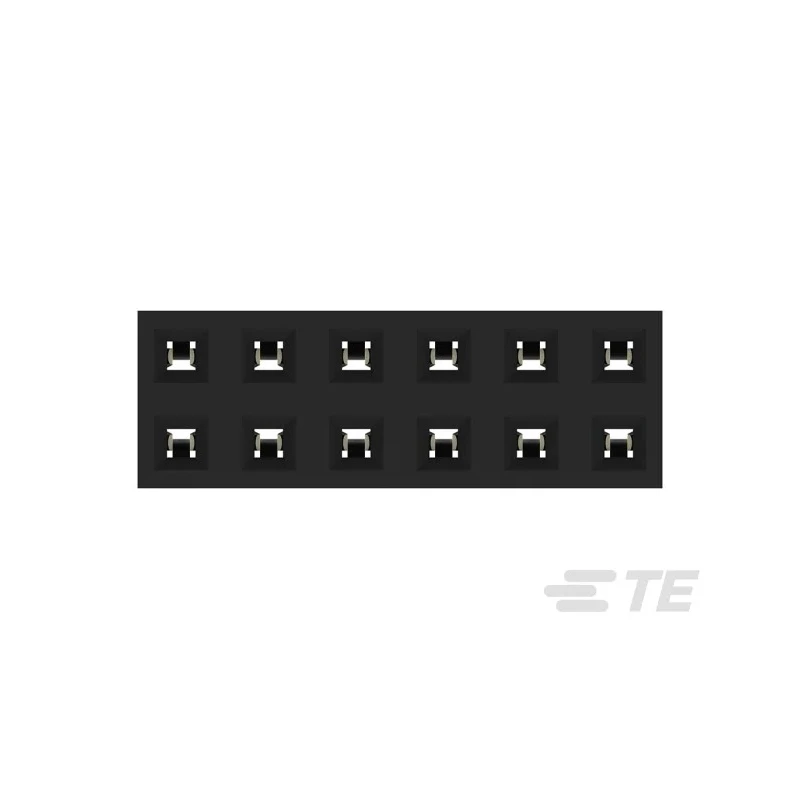

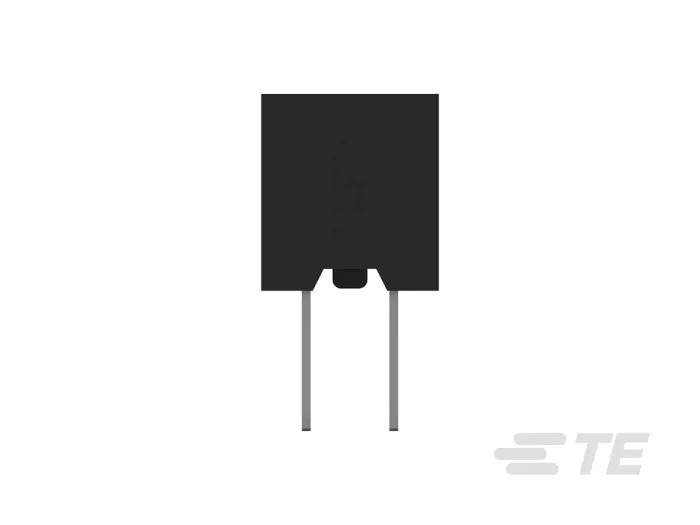

TE Connectivity AMPMODU Series Straight Through Hole PCB Socket 14-Contact 2 Row 2 mm Pitch Solder 1-2314820-4

TE Connectivity 1-2314820-4 AMPMODU Series Straight Through Hole PCB Socket is a 14-contact, 2-row, 2 mm pitch connector designed for solder termination on printed circuit boards. It is built with a durable Liquid Crystal Polymer housing and features dual beam receptacle contacts for enhanced electrical stability.

This PCB socket supports a voltage rating up to 650V and current capacity of 12A, making it suitable for a wide range of industrial and electronics applications including PLCs, servo drives, industrial controls, and instrumentation equipment. It is designed for through hole mounting with a straight orientation and a compact 2.00 mm centerline pitch that occupies 38% less space on the PCB compared to the more common 2.54 mm pitch connectors.

The contact parts are made of bronze with nickel and tin plating to ensure corrosion resistance and solid electrical performance over time. Operating temperature ranges from -65°C to 105°C, offering reliability in extreme environments. The product meets environmental standards with halogen-free and low halogen materials.

Its board-to-board connector system compatibility allows for flexible and secure assembly with other headers and receptacles. The AMPMODU series includes options for vertical and horizontal receptacle assemblies suitable for various PCB thicknesses between 1.6 mm and 2.4 mm.

This PCB socket is available in multiple packaging options including tube, tape, and reel, accommodating up to 25 positions per row in single or dual-row configurations. The socket features dual beam receptacle contacts for dependable electrical connection.

Liquid Crystal Polymer housing ensures high mechanical and thermal stability. Supports 12A current capacity and 650V operating voltage. Temperature range from -65°C to 105°C suits broad application environments. Compact 2 mm pitch reduces PCB space usage by 38% compared to 2.54 mm pitch.

Nickel and tin plating on bronze contacts provides corrosion resistance. Halogen-free design meets environmental regulations. Compatible with board-to-board connector systems for flexible assembly.

This TE Connectivity AMPMODU PCB Socket is ideal for use in industrial automation, manufacturing, test & measurement, and instrumentation sectors. It supports automated surface-mount and through-hole-reflow manufacturing processes. For sourcing precision, durability, and performance in PCB connections, this product is a reliable choice. Explore more range of PCB Sockets and related components at EnvMart.
