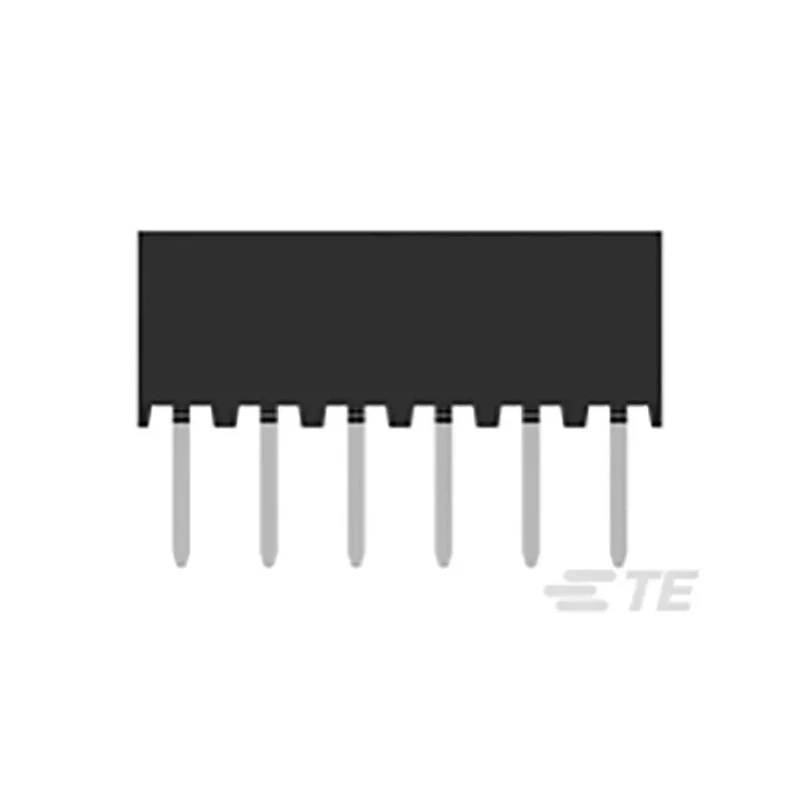

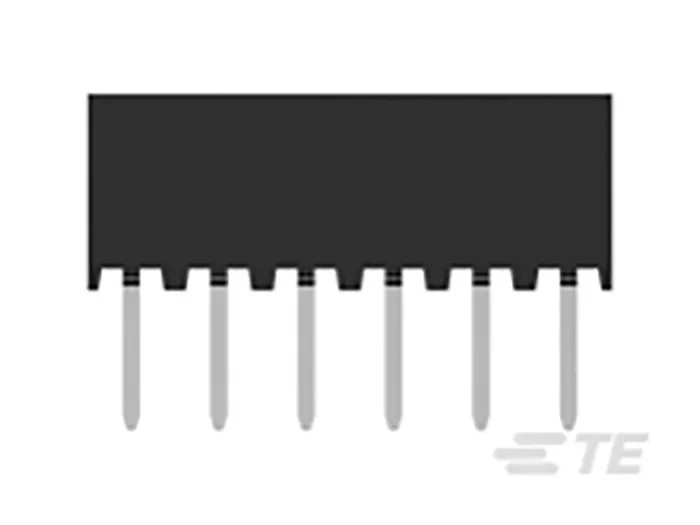

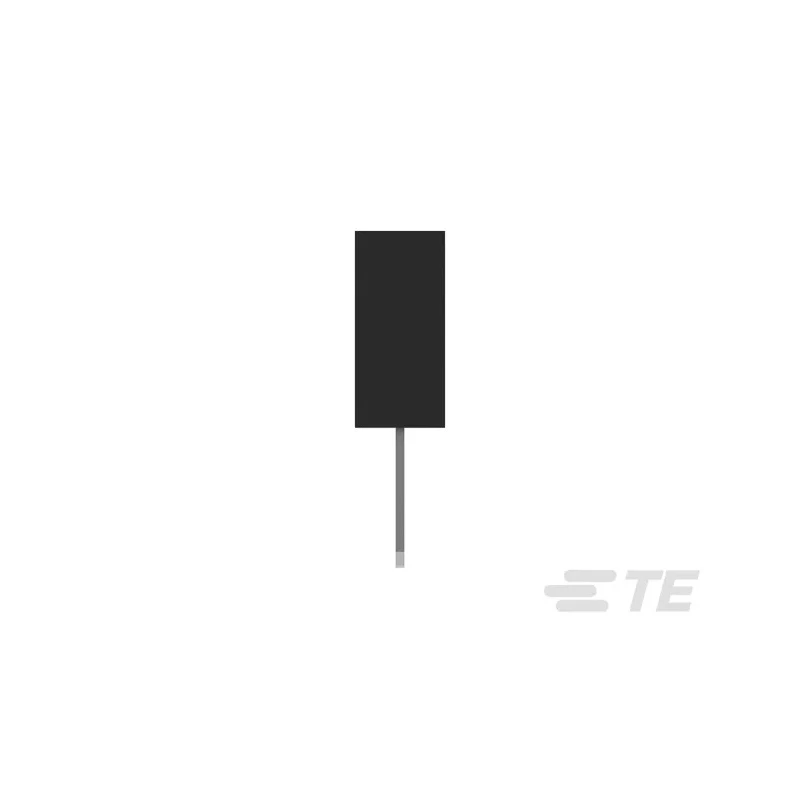

TE Connectivity AMPMODU Series Straight Through Hole PCB Socket 6-Contact 1 Row 2 mm Pitch Solder 2314878-6

TE Connectivity 2314878-6 AMPMODU Series Straight Through Hole PCB Socket is a high-quality electronic component designed for industrial and manufacturing applications requiring reliable board-to-board connections. This 6-contact, single-row socket features a 2 mm pitch and is terminated via through-hole soldering, offering robust mechanical stability and excellent electrical contact integrity.

The connector's housing is constructed from liquid crystal polymer (LCP), known for its exceptional thermal resistance and mechanical durability. Its contacts are bronze with nickel plating, complemented by tin plating on the contact surfaces, providing superior corrosion resistance and consistent performance under demanding conditions.

Rated for a voltage capacity of 650 V and a maximum continuous current of 12 A, this socket supports demanding electrical requirements. The device operates effectively within a temperature range from -65°C to 125°C, making it suitable for use in a broad set of environmental conditions often encountered in industrial controls, servo drives, PLC systems, and instrumentation equipment.

With its compact 2 mm pitch, this connector optimizes PCB real estate, occupying 38% less space compared to traditional 2.54 mm centerline connectors. Its straight orientation and AMPMODU series compatibility enable flexible board-to-board stacking and modularity in design.

The product is halogen free and low halogen, aligning with environment-friendly manufacturing standards. Packaging options include tubes, tape, and reel, supporting efficient automated assembly processes.

Applications for the 2314878-6 PCB socket span multiple industrial sectors including automation, instrumentation, manufacturing, and building automation technologies. Its reliable two-point electrical stability ensures secure header and receptacle interconnections for system longevity and performance.

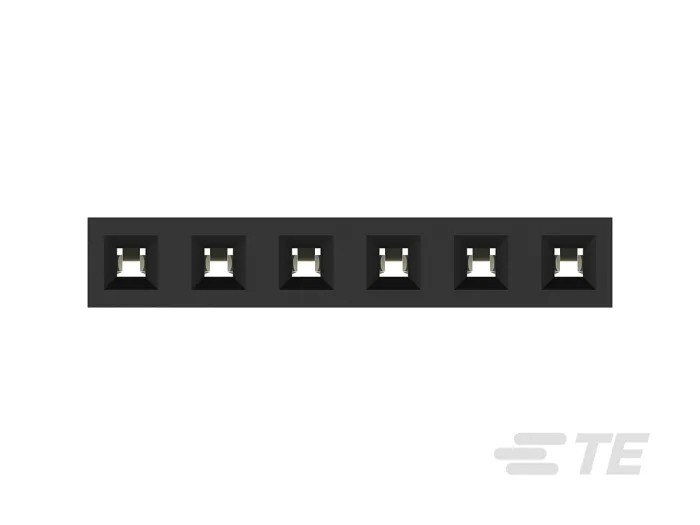

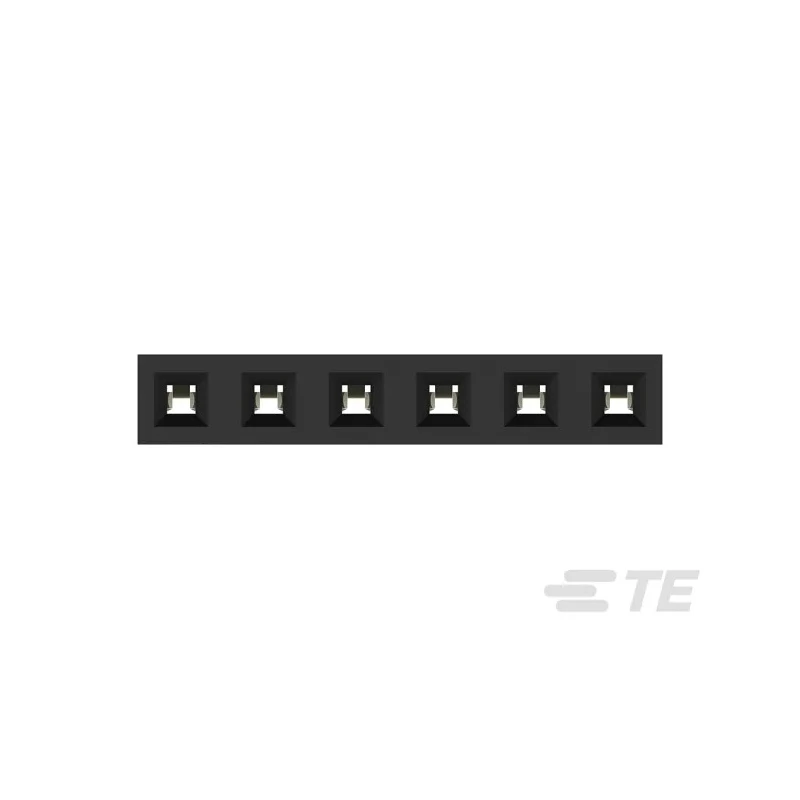

The connector features six female contacts arranged in a single row. It has a 2 mm pitch suitable for close spacing on printed circuit boards. Housing is made of durable liquid crystal polymer offering high thermal stability.

Termination is via through-hole soldering ensuring secure mechanical and electrical connection. Rated voltage is up to 650 V and current rating is 12 A for stable power delivery. Operating temperature range is from -65°C to 125°C for harsh environment use.

Contacts are made of bronze with nickel and tin plating for corrosion resistance. Designed for AMPMODU series applications supporting board-to-board connector systems. Environmental compliance includes halogen free and low halogen materials.

Its straight orientation and single-row design optimize PCB space utilization. For more industrial-grade connectors and PCB Sockets, explore the range available at EnvMart, offering trusted components for electronics assembly and manufacturing.
