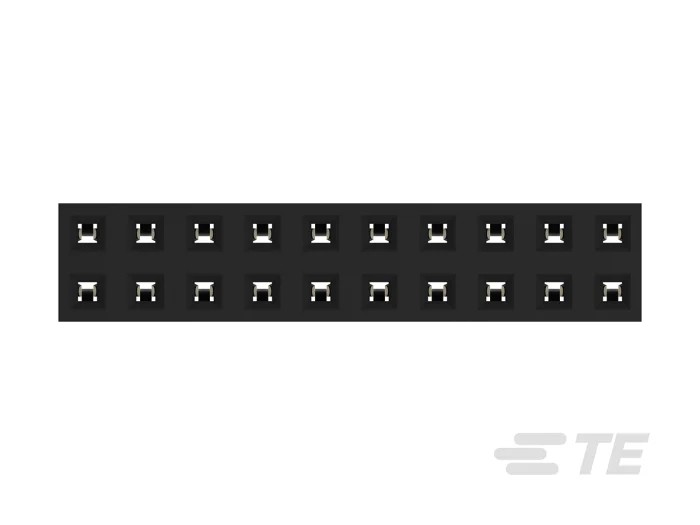

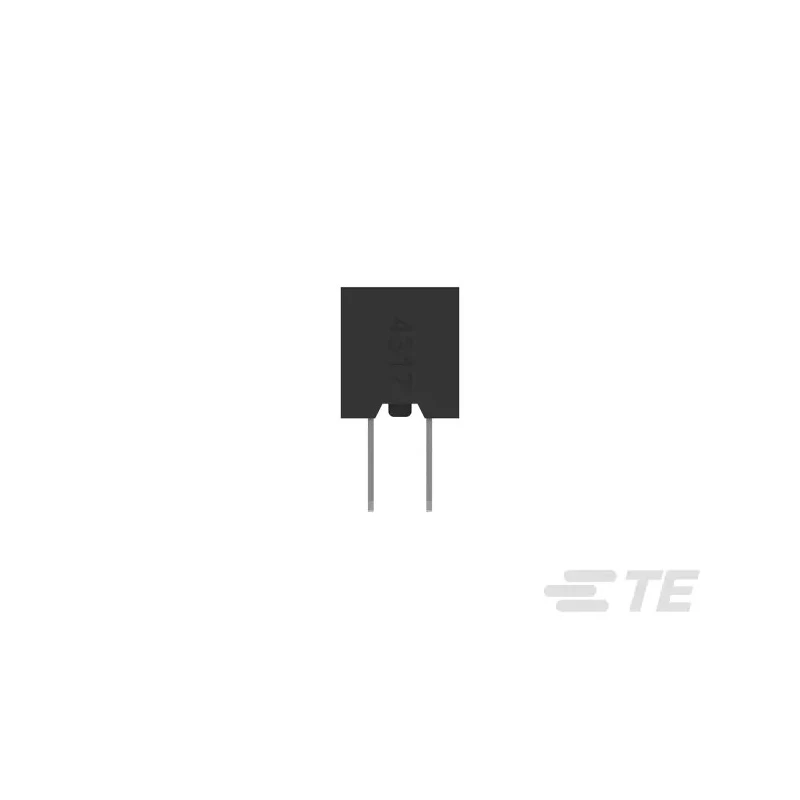

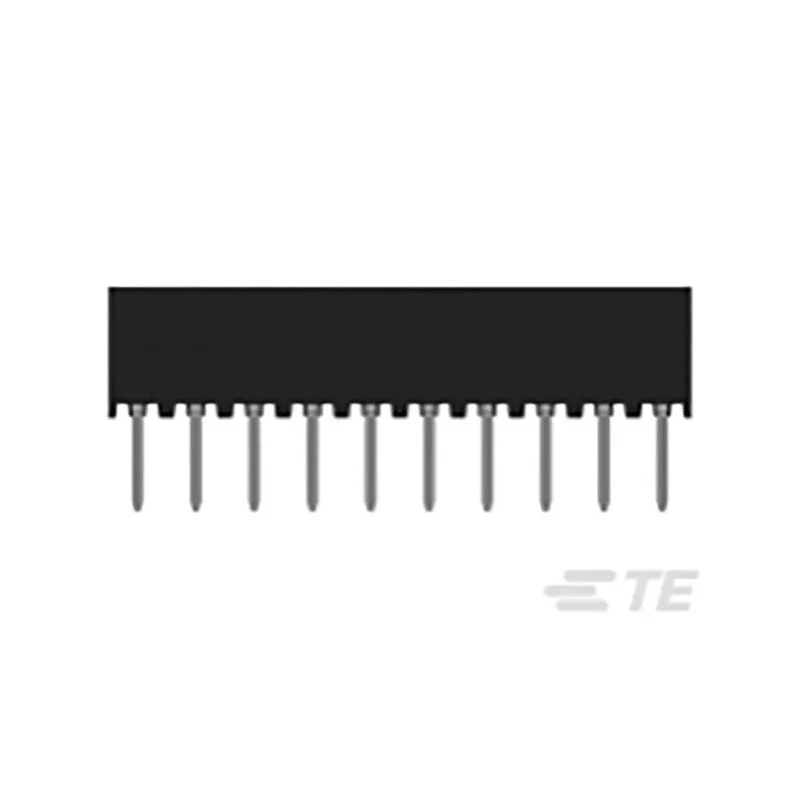

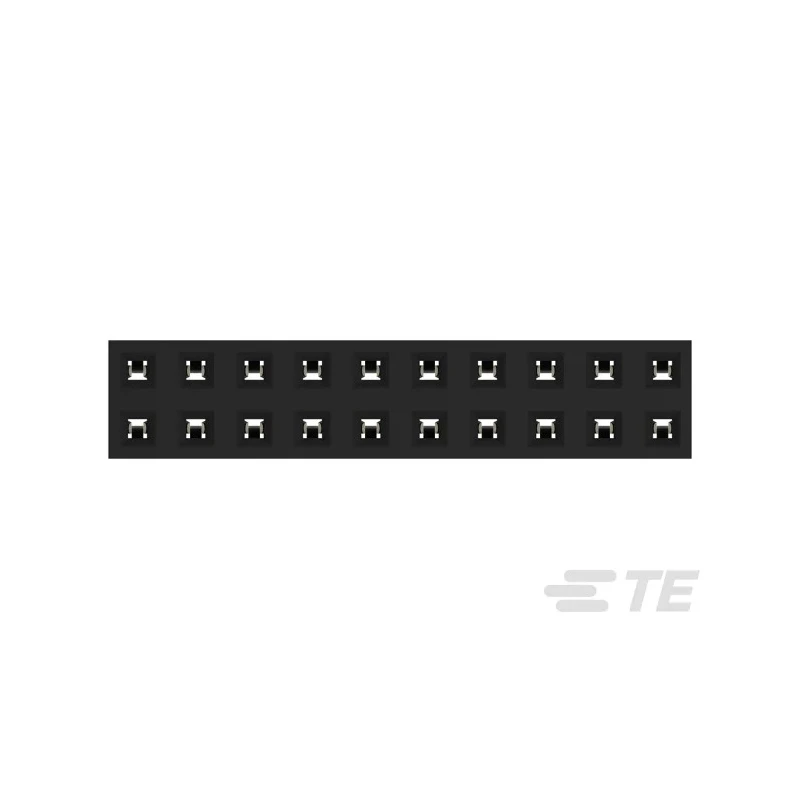

TE Connectivity AMPMODU Series Straight Through Hole PCB Socket 20-Contact 2 Row 2 mm Pitch Solder 2-2314820-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 650V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | AMPMODU |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Receptacle |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Environmental | halogen free / low halogen |
| Pitch | 2mm |
| Contact Plating | Tin, Nickel Plated |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Centerline | 2.00mm [0.079"] |
Key Features
- Features 20 contacts arranged in 2 rows with 2 mm pitch for compact PCB design.
- Constructed with liquid crystal polymer housing for high-temperature resistance.
- Supports a current rating of 12A and voltage rating of 650V for versatile applications.
- Termination via solder through-hole mounting ensures secure electrical connection.
- Operates reliably between -65°C and 125°C suitable for industrial conditions.
- Contact material is bronze with tin and nickel plating for corrosion resistance.
- Designed as a female connector with straight orientation for board-to-board systems.
- Complies with AMPMODU series standards and is halogen free for environmental safety.
Product Description
TE Connectivity 2-2314820-0 AMPMODU Series Straight Through Hole PCB Socket is a high-performance 20-contact receptacle connector with 2 rows at 2 mm pitch, designed for board-to-board applications. The socket features a liquid crystal polymer housing ensuring durability under extended operating temperatures from -65°C up to 125°C, suitable for harsh industrial environments.
The bronze contacts with tin and nickel plating provide excellent electrical conduction and corrosion resistance. This female connector is designed with a straight orientation and through-hole solder termination, allowing reliable mounting on PCBs with thickness ranging from 1.6 mm to 2.4 mm. The 2.00 mm centerline enables compact PCB layouts saving 38% space compared to traditional 2.54 mm pitch connectors, allowing for extended board functionality.
Key attributes include a current rating of 12A and voltage rating of 650V, suitable for a variety of industrial and automation applications including programmable logic controllers (PLCs), servo drives, industrial controls, instrumentation, and building automation systems. Its halogen-free construction complies with environmental safety standards.
The socket is compatible with multiple solder tail lengths and is available in automated packaging formats such as tube, tape, and reel for streamlined manufacturing assembly, supporting efficient production processes through surface-mount and through-hole reflow techniques.
20-Contact AMPMODU Series PCB Socket with 2 rows at 2 mm pitch. Liquid crystal polymer housing for high thermal stability. 12 Ampere current and 650 Volt voltage ratings. Solder termination through-hole mount type with straight orientation.
Operating temperature range from -65°C to 125°C for industrial use. Bronze contacts plated with tin and nickel for durability. Compact 2.00 mm centerline reduces PCB space usage by 38% compared to 2.54 mm pitch. Halogen free construction supporting environmental compliance.
Ideal for PLCs, servo drives, instrumentation, and building automation. Explore our comprehensive category of PCB Sockets at EnvMart for reliable connectors designed to meet stringent industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The socket supports a current rating of 12A and a voltage rating of 650V, making it suitable for various industrial applications.
It operates reliably between -65°C and 125°C, which is suitable for harsh industrial environments.
This connector features a 2 mm pitch and has 20 contacts arranged in 2 rows.
The housing is made from liquid crystal polymer, while the contacts are bronze with tin and nickel plating for corrosion resistance.
It features a solder termination type with through-hole mounting, ensuring a secure electrical connection.
This model has a straight orientation, designed for board-to-board systems.
Yes, it is halogen-free, complying with environmental safety standards.
It is suitable for various applications including programmable logic controllers (PLCs), servo drives, industrial controls, instrumentation, and building automation systems.
The centerline measurement is 2.00 mm, which helps in reducing PCB space usage by 38% compared to traditional connectors with a 2.54 mm pitch.
It can be mounted on PCBs with thicknesses ranging from 1.6 mm to 2.4 mm.
It is available in automated packaging formats such as tube, tape, and reel, facilitating efficient manufacturing assembly.
This socket is designed as a board-to-board connector system.
