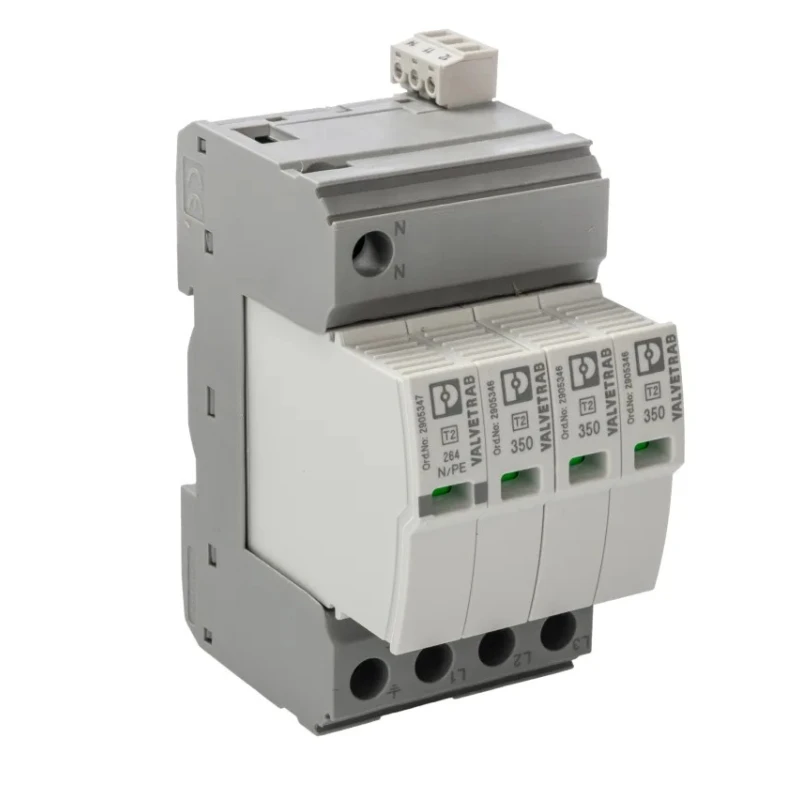

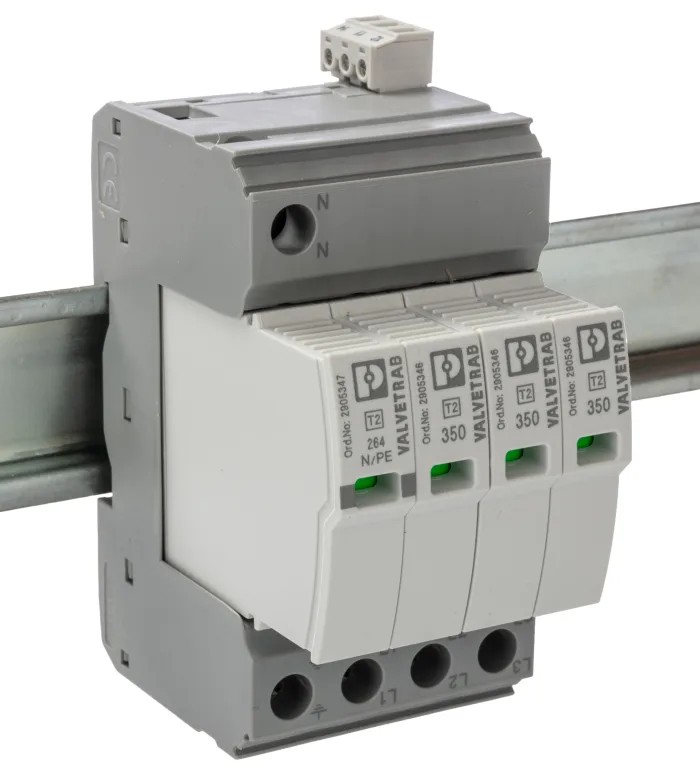

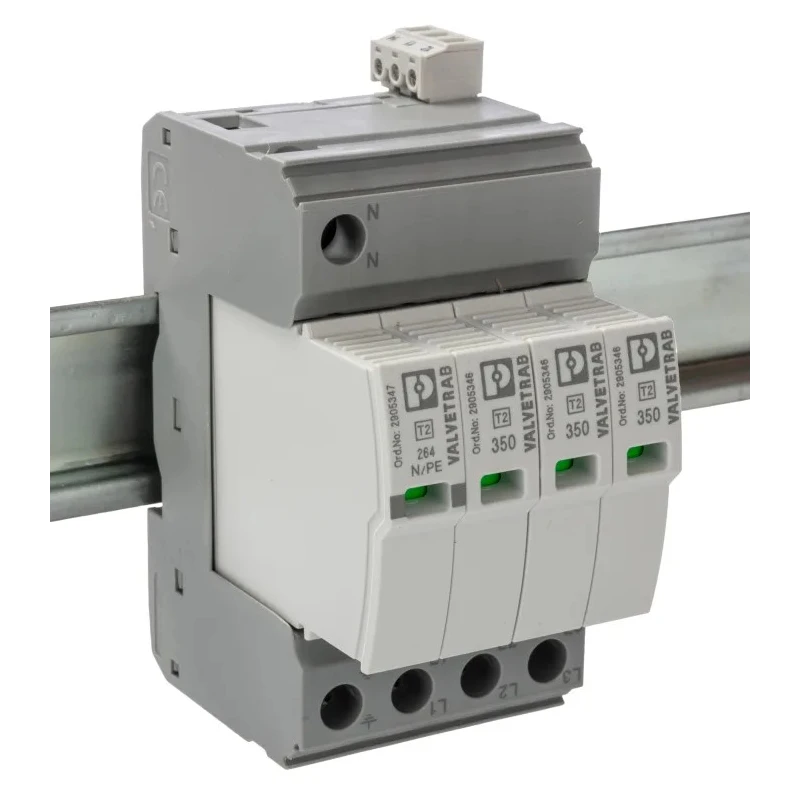

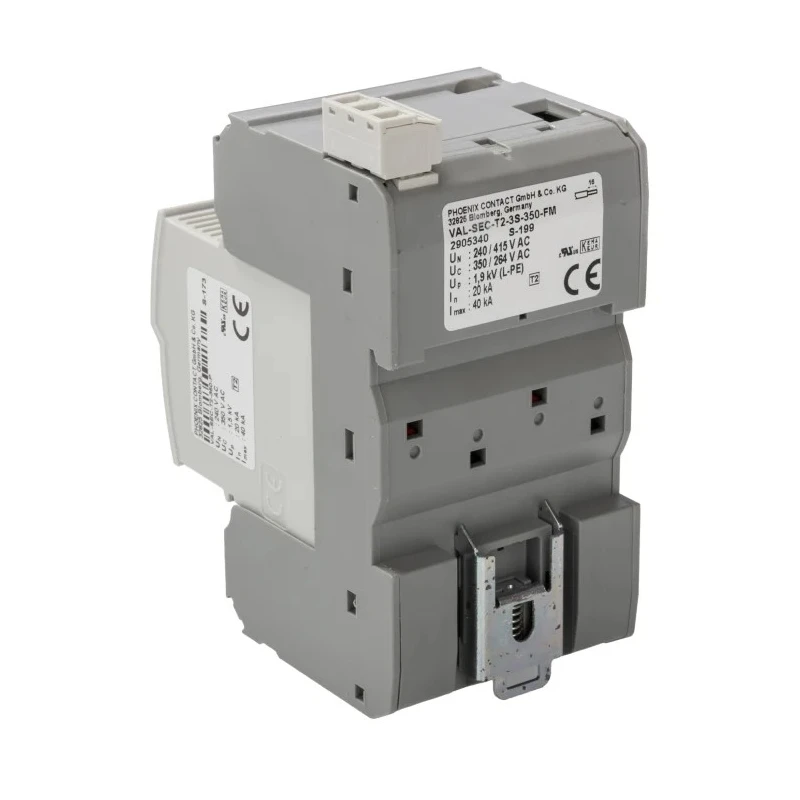

Phoenix Contact 3 Phase Surge Protector, 50 kA Maximum Surge Current, 1.9 kV Voltage Protection Rating, DIN Rail 2905340
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Phoenix Contact |
| Length | 97.9mm |
| Model | 2905340 |
| Depth | 74.5mm |
| IP Rating | IP20 |
| Width | 49.2mm |
| Mount Type | DIN Rail |
| Series | VAL-SEC-T2-3S-350-FM |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| Electrical Phase | 3 |
| Standards/Approvals | UL |
| Maximum Surge Current | 50kA |
| Voltage Protection Rating | 1.9kV |
| Impulse Discharge Current | 40kA |
| Industrial Surge Protector, 120kA, 250 V ac, DIN Rail MountBrand | Phoenix Contact |
Key Features
- Provides protection against voltage surges up to 1.9 kV.
- Supports a maximum surge current capacity of 50 kA for robust defense.
- Designed for three-phase electrical systems.
- Compact size with dimensions 49.2mm (W) x 97.9mm (L) x 74.5mm (D) to save space.
- Suitable for harsh environments with operating temperature range -40°C to +80°C.
- Mounts on a standard 35mm DIN rail for ease of installation.
- Includes IP20 rating ensuring safe handling without shock risk.
- Screw connection design enables quick and tool-less wiring.
Product Description
Phoenix Contact 2905340 is a 3 Phase Surge Protector with a 50 kA maximum surge current and a voltage protection rating of 1.9 kV. Designed to be mounted on a DIN rail, this device protects sensitive three-phase electrical equipment from damaging power surges and voltage spikes.
This surge protector is built to withstand harsh industrial conditions with an operating temperature range from -40°C to 80°C, providing durable performance in demanding environments. Its compact dimensions of 49.2 mm width, 97.9 mm length, and 74.5 mm depth offer space-saving installation in control panels.
Featuring a screw connection for quick wiring and an IP20 rating for safe handling, installation is both secure and straightforward. Indicator lights and remote contact options allow easy system monitoring and maintenance.
Phoenix Contact's surge protector conforms to UL standards, assuring safety and compliance in electrical installations. It is ideal for industrial, commercial, manufacturing, and HVAC applications where protection of three-phase motors or other sensitive equipment is critical.
Provides robust three-phase surge protection with 50 kA maximum surge current. Missions a voltage protection rating of 1.9 kV for reliable defense against voltage spikes. Compact design with dimensions of 49.2 x 97.9 x 74.5 mm.
Mounts easily on standard 35 mm DIN rails. Operates reliably between -40°C and +80°C. IP20 rated for enhanced user safety. Quick screw connection wiring system. UL certified for safety and performance.
Ensure protection of sensitive electrical installations in industrial plants, manufacturing lines, and automation systems with the Phoenix Contact VAL-SEC-T2-3S-350-FM surge protector model 2905340.
Explore EnvMart's extensive range of Surge Protection Devices and Phoenix Contact products for your electrical safety needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum surge current capacity of this surge protector is 50 kA.
The voltage protection rating of this model is 1.9 kV.
This unit has dimensions of 49.2 mm (W) x 97.9 mm (L) x 74.5 mm (D).
It operates reliably within a temperature range of -40°C to +80°C.
This device is designed to be mounted on a standard 35 mm DIN rail for ease of installation.
It has an IP20 rating, ensuring safe handling without shock risk.
This model conforms to UL standards, assuring safety and compliance in electrical installations.
It is designed for three-phase electrical systems.
Yes, it includes indicator lights and remote contact options for easy system monitoring and maintenance.
The impulse discharge current rating is 40 kA.
It is ideal for industrial, commercial, manufacturing, and HVAC applications where protection of sensitive equipment is critical.
It features a screw connection design that enables quick and tool-less wiring.
