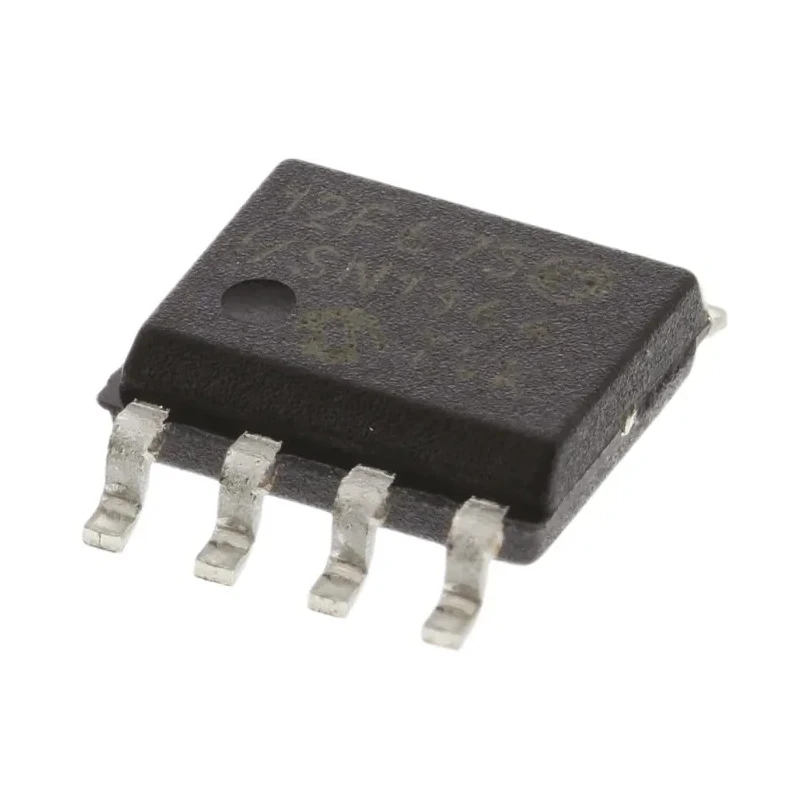

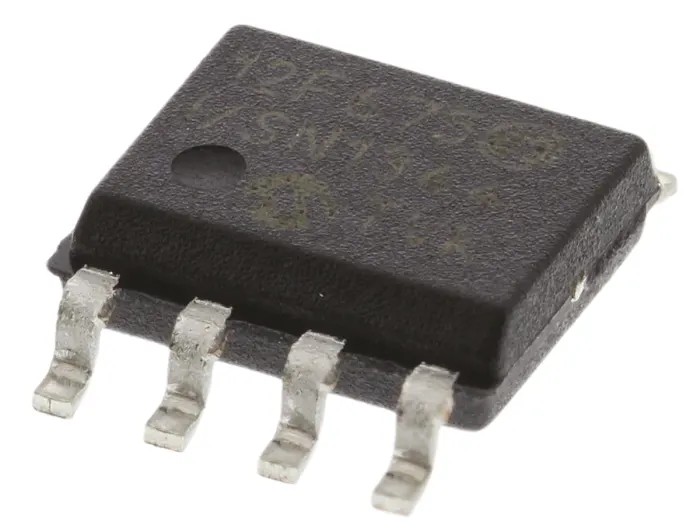

Microchip 8 Bit PIC Microcontroller 20 MHz 1.75kB FLASH 8-Pin SOIC PIC12F675-I/SN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 4.9mm |
| Model | PIC12F675-I/SN |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | PIC12F |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 64bit |
| Interface Type | SPI |
| Pin Count | 8 |
| Automotive Standard | ISO/TS 16949 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 1.75kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 6 |
| Analogue Comparators | 1 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 4 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates with SPI interface and 8-bit data bus width.
- Supports a maximum supply voltage of 5.5 V and minimum supply voltage of 2 V.
- Includes 6 programmable I/O pins and 64-byte RAM.
- Equipped with one analogue comparator and a 4-channel 10-bit ADC.
- Offers two timers, one 8-bit and one 16-bit for versatile timing applications.
- Designed for industrial temperatures ranging from -40°C to 85°C operation.
- Features RISC instruction set with 35 instructions and 8-level hardware stack.
Product Description
Microchip PIC12F675-I/SN is an 8-bit PIC microcontroller designed for embedded applications requiring compact size and efficient processing. It operates at a maximum frequency of 20 MHz and includes a 1.75 kB FLASH program memory, providing ample space for firmware. The device comes in an 8-pin SOIC surface mount package, ideal for space-constrained designs.
Featuring a RISC architecture with 35 instructions and an 8-level hardware stack, this microcontroller delivers reliable performance up to 5 MIPS. It incorporates a 4 MHz internal RC oscillator with ±1% accuracy, facilitating stable clocking without external components.
The PIC12F675-I/SN offers six programmable I/O pins configured for flexible interfacing, alongside two timers - a 16-bit timer and an 8-bit timer - to support complex timing tasks. It includes a single analogue comparator and a 4-channel 10-bit analogue-to-digital converter specific to this variant, supporting precision sensor measurement and signal processing.
Operating voltage ranges from 2 V minimum up to 5.5 V maximum with a power dissipation limit of 800 mW. The device's temperature rating from -40°C to +85°C suits applications in industrial and automotive environments. The small form factor (4.9 mm × 3.9 mm × 1.5 mm) facilitates integration in compact electronic assemblies.
This microcontroller complies with the ISO/TS 16949 automotive standard, underscoring suitability for automotive system development and industrial control. Program memory is of FLASH type, enabling easy in-circuit serial programming (ICSP) and firmware updates.
Operates within automotive and industrial temperature ranges. RISC-based PIC architecture ensures efficient instruction execution. Surface mount SOIC package provides a compact footprint. Integrated ADC and analogue comparator enable mixed-signal functionality.
In-circuit serial programming supports flexible development and deployment.
This PIC12F675-I/SN microcontroller is suitable for embedded control applications, sensor interfacing, consumer electronics, and automotive electronics. It provides performance, flexibility, and compactness for modern electronic design requirements.
Explore additional Microchip Microcontrollers and semiconductor products in the Electronics & Electricals category at EnvMart for comprehensive industrial and development solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PIC12F675-I/SN operates at a maximum clock frequency of 20 MHz.
It features a program memory size of 1.75 kB, which is of FLASH type, allowing for easy in-circuit serial programming.
This microcontroller supports a minimum supply voltage of 2 V and a maximum supply voltage of 5.5 V.
The PIC12F675-I/SN includes six programmable I/O pins for flexible interfacing.
It is designed to operate within a temperature range of -40°C to 85°C, suitable for industrial applications.
This model includes two timers: one 8-bit timer and one 16-bit timer for versatile timing applications.
It is equipped with one analogue comparator and a 4-channel 10-bit analogue-to-digital converter (ADC).
The device comes in an 8-pin SOIC surface mount package with dimensions of 4.9 mm x 3.9 mm x 1.5 mm.
The maximum power dissipation limit for this microcontroller is 800 mW.
It complies with the ISO/TS 16949 automotive standard, making it suitable for automotive system development.
The PIC12F675-I/SN utilizes a RISC instruction set architecture with 35 instructions and an 8-level hardware stack.
The device includes a RAM size of 64 bytes, providing memory for temporary data storage during operation.
