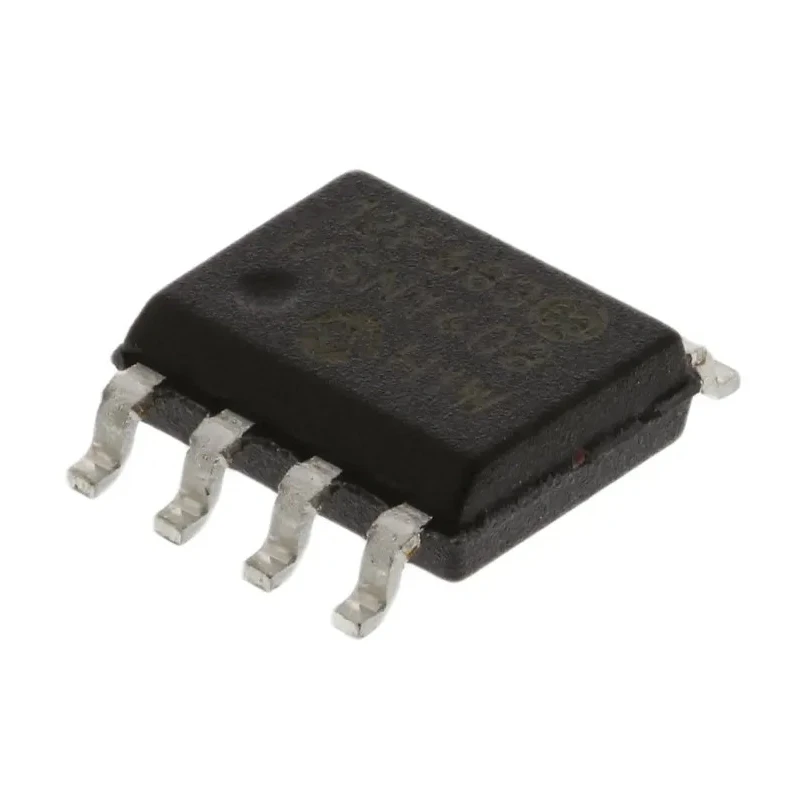

Microchip 8 bit PIC Microcontroller 20 MHz 256B FLASH 8-Pin SOIC PIC12F683-I/SN

Microchip PIC12F683-I/SN is an 8-bit PIC microcontroller operating at a maximum clock frequency of 20 MHz with 256B of FLASH program memory and 128-bit RAM designed for versatile embedded applications. It is housed in an 8-Pin SOIC surface mount package, suitable for compact electronic designs requiring low power consumption and reliable operation.

This microcontroller features a RISC instruction architecture with 35 instructions and an 8-level hardware stack. It supports a configurable internal RC oscillator ranging from 31 kHz to 32 MHz, providing timing flexibility for various system requirements.

It includes 28 programmable input/output pins, making it ideal for interfacing with sensors, actuators, and communication interfaces. With built-in peripherals such as 3 timers, 4-channel 10-bit ADC, comparator, capture/compare/PWM modules, and SPI interface, it supports sophisticated control and signal processing tasks within industrial, commercial, and consumer electronic systems.

Operating voltage ranges from 2 V to 5.5 V ensure compatibility with standard power supply architectures, and the device maintains power dissipation up to 1 W. The microcontroller's operational temperature range is -40°C to 85°C, enabling deployment in harsh environments including automotive and industrial electronics.

The dimensions of 4.9 mm length, 3.9 mm width, and 1.5 mm height enable integration into dense PCB layouts. Manufactured in Thailand, this microcontroller adheres to high reliability and quality standards.

The microcontroller integrates 35 instructions and an 8-level hardware stack for efficient program execution. It features an internal RC oscillator configurable for frequencies from 31 kHz up to 32 MHz. Includes programmable I/O pins suitable for flexible hardware interfacing.

In-Circuit Serial Programming (ICSP) capability facilitates convenient programming and debugging. Equipped with multiple timers and ADC channels for complex timing and sensing applications. Compact surface mount SOIC package supports efficient PCB designs.

Designed for broad industrial and electronic applications requiring low power and high performance. Explore our comprehensive Microcontroller category for more advanced semiconductor components suitable for embedded system development on EnvMart.
