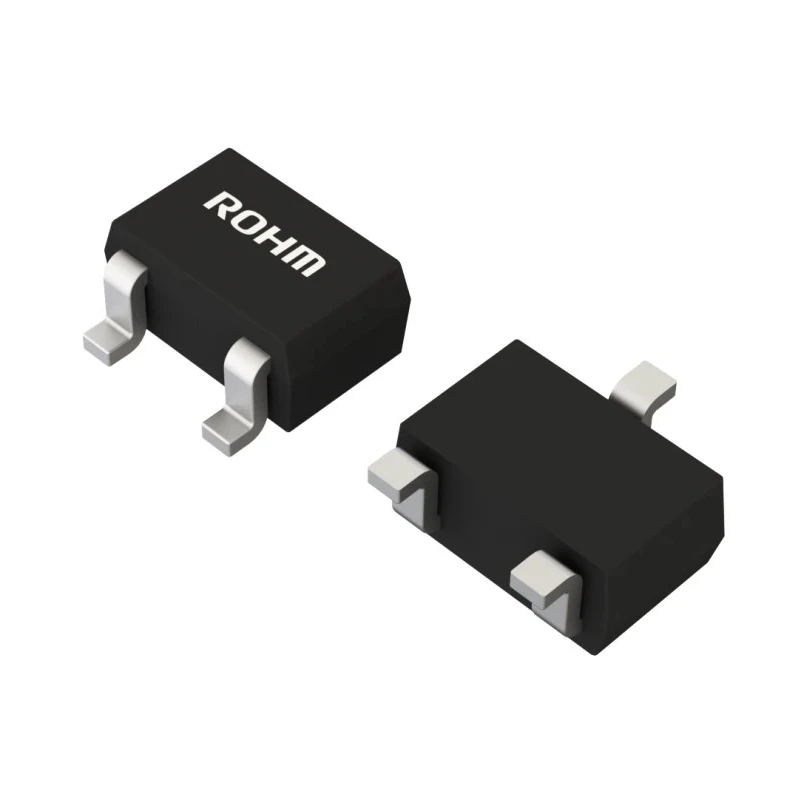

ROHM 40 V 30 mA Schottky Barrier Diode 3-Pin SOT-323 Surface Mount RB715FM-40FHT106
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.9mm |
| Length | 2mm |
| Model | RB715FM-40FHT106 |
| Width | 2.1mm |
| Mount Type | Surface |
| Package Type | SOT-323 |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 30mA |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | 2x Common Cathode Pair |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 0.2A |
| Maximum Forward Voltage Vf | 0.37V |
Key Features
- This diode operates with a maximum continuous forward current of 30 mA.
- Its peak reverse repetitive voltage is rated at 40 V.
- The maximum forward voltage drop is 0.37 V ensuring low power loss.
- Features a 2x common cathode pair diode configuration.
- Peak non-repetitive forward surge current is 0.2 A for transient tolerance.
- Compact dimensions measuring 2 mm length, 2.1 mm width, and 0.9 mm height.
- Complies with RoHS standards and is AEC-Q101 automotive qualified.
- Offers ultra-low forward voltage and high reliability for surface mount applications.
Product Description
ROHM RB715FM-40FHT106 Schottky Barrier Diode is engineered for efficient low-voltage rectification in compact surface mount packages. It utilizes a SOT-323 3-pin form factor for easy mounting on printed circuit boards in electronic assemblies.
This semiconductor diode supports a maximum continuous forward current of 30 mA and can withstand peak reverse repetitive voltages up to 40 V, making it suitable for power supply rectification and switching applications in industrial and automotive electronics.
Its maximum forward voltage of 0.37 V minimizes conduction losses, enhancing device efficiency in power sensitive circuits. The diode configuration includes a 2x common cathode pair, accommodating design flexibility in rectifier bridges and protection circuits.
With peak non-repetitive forward surge current capability of 0.2 A, the diode withstands brief overloads typical in transient events. Its compact 2 mm x 2.1 mm x 0.9 mm outline fits space-restricted designs, while compliance with RoHS and AEC-Q101 automotive standards ensures reliability and environmental safety.
The device operates reliably across -55°C to 150°C, supporting a broad range of environmental conditions from industrial machinery to automotive electronics. Its ultra-low forward voltage characteristic further optimizes power dissipation and heat generation.
This diode operates with a maximum continuous forward current of 30 mA. Its peak reverse repetitive voltage is rated at 40 V. The maximum forward voltage drop is 0.37 V ensuring low power loss. Features a 2x common cathode pair diode configuration.
Peak non-repetitive forward surge current is 0.2 A for transient tolerance. Compact dimensions measuring 2 mm length, 2.1 mm width, and 0.9 mm height. Complies with RoHS standards and is AEC-Q101 automotive qualified. Offers ultra-low forward voltage and high reliability for surface mount applications.
Storage temperature range from -55°C to 150°C supports demanding environments.
This ROHM Schottky diode series is ideal for use in industrial electronic assemblies, automotive control systems, consumer electronics power supplies, and other applications requiring fast switching and efficient rectification.
Explore similar Schottky Diodes and rectifiers in EnvMart’s Electronics & Electricals category for semiconductor devices suited to varied power and signal processing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 30 mA.
It has a peak reverse repetitive voltage rating of 40 V.
This diode measures 2 mm in length, 2.1 mm in width, and 0.9 mm in height.
The maximum forward voltage drop is 0.37 V, which helps ensure low power loss.
The peak non-repetitive forward surge current is rated at 0.2 A.
It supports surface mounting, utilizing a SOT-323 package type.
It features a 2x common cathode pair diode configuration.
This diode complies with the AEC-Q101 automotive standard.
The peak reverse current is rated at 1 μA.
The storage temperature range is from -55°C to 150°C.
Yes, it complies with RoHS standards.
This diode is suitable for applications in industrial electronic assemblies, automotive control systems, and consumer electronics power supplies.
