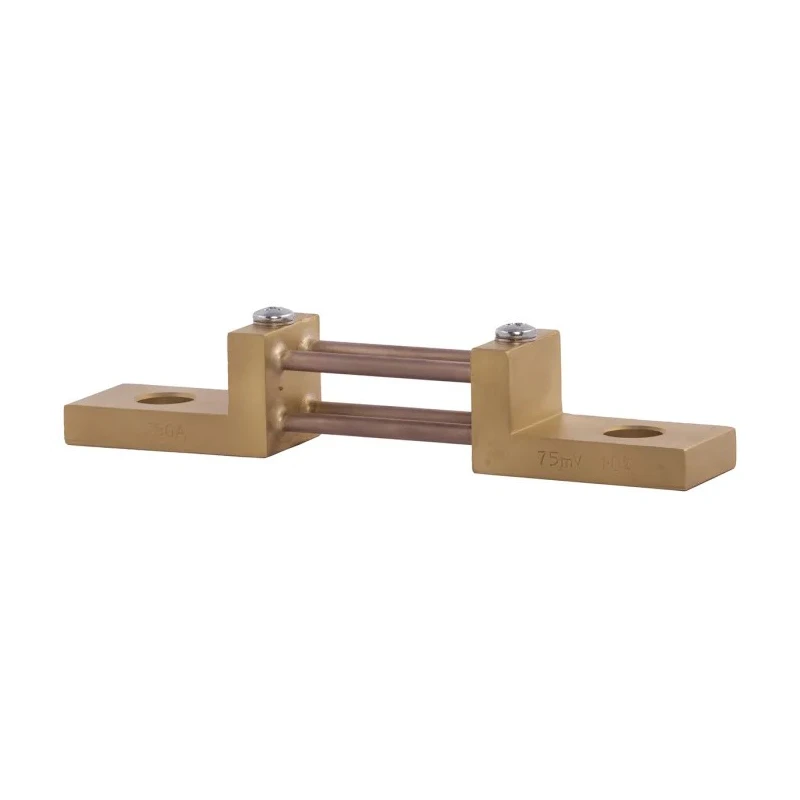

Sifam Tinsley Brass Ended Shunt 250 A Max 75mV ±0.5% Accuracy YN01-22751WS000000

The Sifam Tinsley YN01-22751WS000000 Brass Ended Shunt is a precision electrical component designed for measuring DC current in industrial and process control environments. It supports a maximum current of 250 A and produces a proportional output voltage of 75mV, with an accuracy rating of ±0.5%. The brass-ended design provides excellent conductivity and mechanical robustness, making it suitable for demanding electrical automation and instrumentation systems.

This shunt operates by generating a voltage drop proportional to the DC current flowing through it. When connected to a moving coil ammeter or similar measuring instruments, the device allows for accurate and reliable monitoring of high current values. It is especially effective in extending the measuring range of lower rating ammeters.

The shunt features precision class 0.5 accuracy and belongs to the Kappa series. It is manufactured in India and is commonly used in applications involving ammeter measuring, overload protection circuits, and control devices requiring accurate current readings.

In addition to industrial manufacturing and electrical automation, it finds utilization within HVAC, water treatment plants, and various electrical control gear systems where precise current measurement and monitoring are critical.

Designed for accurate DC current measurement with a voltage drop proportional to current. Provides an output voltage of 75mV for current up to 250 A. Brass ended construction ensures durability and conductivity. Accuracy class of ±0.5% for precision measurements.

Ideal for driving ammeters, overload protection, and control devices. Enables extension of DC current measurement ranges of moving coil ammeters. Suitable for industrial, electrical, and process control applications.

For buyers seeking reliable and precise current measurement shunts, the Sifam Tinsley YN01-22751WS000000 is a high-quality choice in the field of electrical automation and control gear. Explore more products in the Process Control category for complementary automation solutions on EnvMart.
