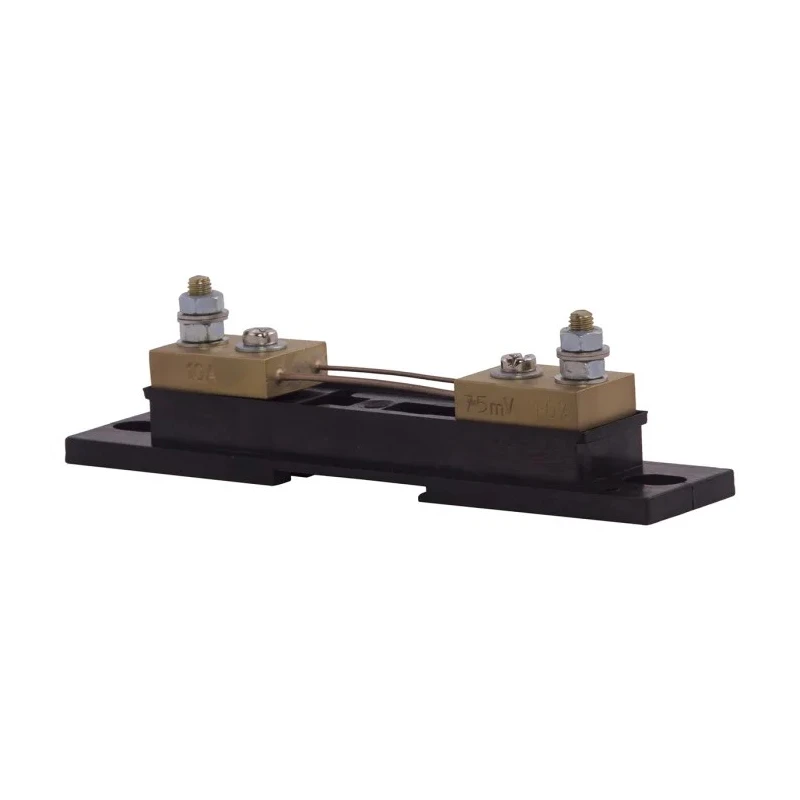

Sifam Tinsley Brass Ended Shunt 10A Maximum Current 75mV Output Voltage ±0.5% Accuracy YN01-04751BS000000

Free Delivery in India | Lowest Global Shipping Charges

Sifam Tinsley Brass Ended Shunt 10A Maximum Current 75mV Output Voltage ±0.5% Accuracy YN01-04751BS000000

Name: Sifam Tinsley Brass Ended Shunt 10A Maximum Current 75mV Output Voltage ±0.5% Accuracy YN01-04751BS000000
Brand: Sifam Tinsley
SKU: 266762
Price: 43.84 USD
Availability: InStock



Category Process Control Brand Sifam Tinsley Condition New

Specifications

Country of Origin	India
Accuracy	±0.5 %
Brand	Sifam Tinsley
Model	YN01-04751BS000000
Series	Kappa
Maximum Current	10A
Output Voltage	75mV
Shunt Type	Brass Ended

Key Features

The shunt provides a voltage drop proportional to the DC current for precision ammeter readings.
It features a brass-ended construction ensuring durability and reliable electrical contact.
The device offers ±0.5% accuracy suitable for industrial process control applications.
Compatible with moving coil ammeters and overload protection systems.
Mounts easily on a 35mm DIN rail with an isolating base for safe installation.
Part of the Kappa series designed specifically for current measuring ranges between 1A to 25A.
Manufactured in India maintaining quality standards for industrial use.

Product Description

Sifam Tinsley YN01-04751BS000000 Brass Ended Shunt is a precision component designed for accurate DC current measurement in industrial and laboratory environments. It operates with a maximum current of 10A and provides an output voltage of 75mV, delivering reliable performance with ±0.5% accuracy. This shunt enables extension of DC current measuring ranges for moving-coil ammeters, offering precise voltage drops proportional to the current flow.

The brass-ended design ensures robust electrical connection and durability under prolonged use. The shunt is mounted on an isolating base which is adaptable for installation on standard 35mm DIN rails, facilitating easy integration into existing control panels and automation systems.

This component is part of the Kappa series, tailored for DC current measuring ranges typically from 1A to 25A, making it suitable for a wide variety of applications including process control, overload protection, and instrumentation in electrical automation, manufacturing, and testing environments.

The shunt's accuracy and stable output voltage make it ideal for use with ammeter indicators, protection relays, and control devices that require precise current measurement to maintain safe and efficient operation.

The shunt provides a voltage drop proportional to DC current to enable precise ammeter readings. Brass-ended construction for durability and reliable connections. ±0.5% measurement accuracy for industrial process control.

Compatible with moving coil instruments and overload protection devices. Isolating base suitable for 35mm DIN rail mounting. Designed for current measuring ranges from 1A to 25A. Manufactured in India with quality assurance.

This product is essential for industrial automation and electrical measurement applications where precise current sensing is critical. Explore other high-quality Process Control instruments at EnvMart for your automation and control gear needs.
