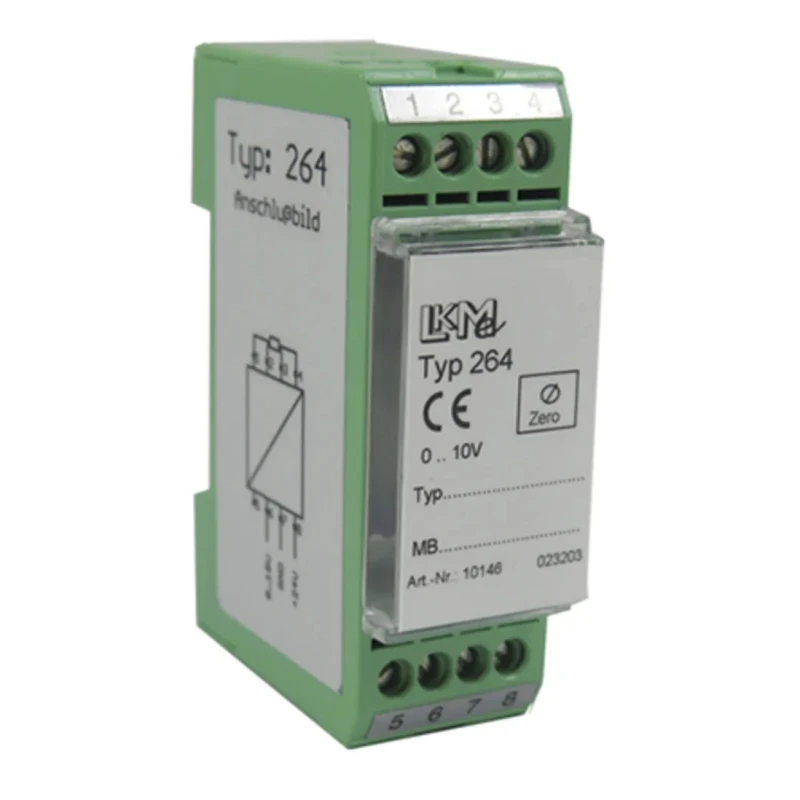

Electrotherm 264 Digital Transducer PT100 to PT1000 Input 35V Operating Temperature -25 to 70°C

Electrotherm LKM 264 is a digital programmable measuring transducer designed for resistance temperature sensors such as PT100 and PT1000. It features a 0 to 10 V current output and is engineered for professional industrial applications.

The device supports a wide temperature input range from -200°C to 850°C depending on sensor type and is capable of accommodating sensors including Ni100 and Ni1000. It offers programmable zero and span adjustments for precise sensor calibration.

Operating voltage is up to 35 V with low power consumption, and the transducer is polarity-safe with a measuring rate of 2 readings per second. The housing is made from durable polycarbonate measuring 75x25x53 mm, suitable for mounting on a 35 mm DIN rail, facilitating easy installation in control panels.

Linearisation accuracy is 0.1 K with a resolution of 14-bit ensuring high precision. The transducer incorporates features such as probe break detection with a 10V output and short-circuit detection at 0V output, enhancing reliability in automation processes.

This transducer meets EMC standards EN 61326-1:2006 and EN 61326-2-3:2006, making it compliant for industrial use in temperature control and measurement tasks. Operates within -25 to 70°C ambient temperature range. Supports PT100, PT1000, Ni100, and Ni1000 resistance sensors.

Programmable zero and span for customized calibration. Output voltage range from 0 to 10 V with optional voltage outputs. Mounts easily on a 35mm DIN rail for industrial use. Robust polycarbonate housing with compact dimensions 75x25x53mm.

High linearity accuracy of 0.1% Full Scale for reliable readings. Low current consumption, max 10mA, ideal for continuous operation. Designed to work with 2-, 3-, or 4-wire circuits for flexible sensor connection.

This Electrotherm LKM 264 digital transducer is ideal for industrial automation, Process Control, HVAC monitoring, laboratory equipment, and manufacturing plants requiring precise temperature transduction. Explore more solutions in our Automation & Control Gear category at EnvMart.
