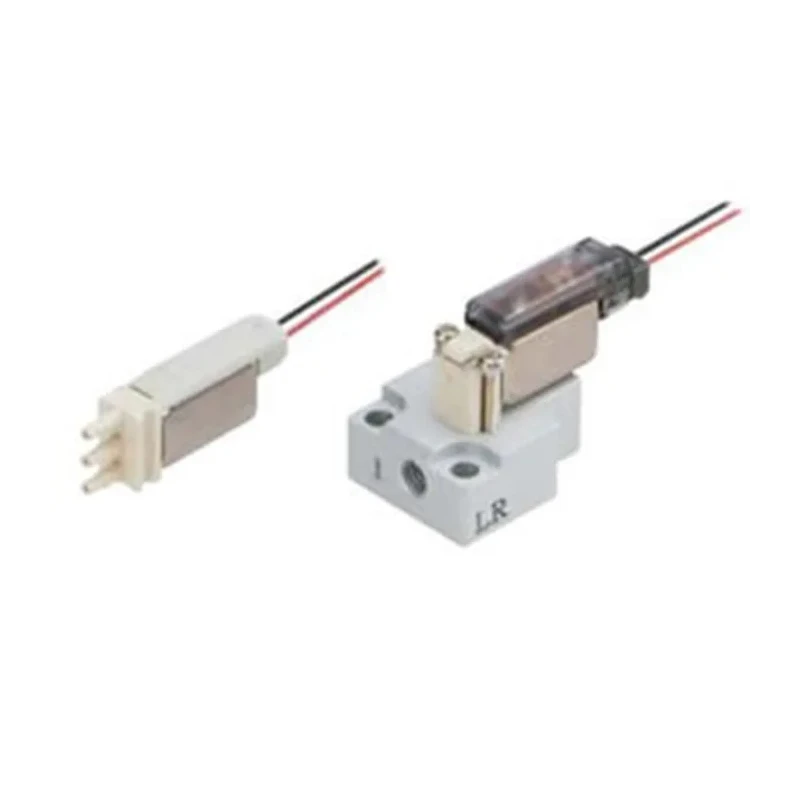

SMC Pneumatic Solenoid Valve Body Ported 3 Ports 24V 0.7 Bar Die Cast Zinc S070C-6AG-32

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve Body Ported 3 Ports 24V 0.7 Bar Die Cast Zinc S070C-6AG-32



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V
Brand	SMC
Body Material	Die Cast Zinc
Maximum Operating Pressure	0.7 bar
Height	12mm
Length	32mm
Model	S070C-6AG-32
Width	7mm
Mount Type	Body Ported
Series	S070
Number Of Ports	3
Maximum Operating Temperature	50°C
Number of Positions	2
Port Size	M5
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Maximum Flow Rate	15L/min
Standards/Approvals	RoHS
Connection Thread Standard	Metric
Minimum Pilot Pressure	0.25bar
Electrical Connection Type	Grommet
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	0.35W

Key Features

The valve is constructed from durable die cast zinc material ensuring strength and longevity.
Compact design with width 7mm, height 12mm, and length 32mm for easy integration in tight spaces.
Operates within temperature range from -10°C to 50°C, suitable for various industrial environments.
Consumes low power of 0.35W standard solenoid power for energy efficiency.
Features female port gender with M5 port size and metric connection thread standard.
Offers a maximum flow rate of 15 L/min enabling efficient pneumatic control.
Electrical connection uses a grommet type for reliable solenoid actuation.
Designed as a single solenoid type with 2 positions for controlled valve switching.

Product Description

SMC S070C-6AG-32 Pneumatic Solenoid Valve is a compact, direct-acting valve designed for precise pneumatic control in industrial applications. Featuring a body ported mount type and three ports, this valve is engineered to meet the miniaturization requirements of analyzers, medical devices, and semiconductor manufacturing equipment. It ensures low noise operation at 38 dB(A) or less, making it suitable for sensitive environments.

Constructed with die cast zinc body material, the valve offers durability and corrosion resistance. It operates reliably within a temperature range of -10°C to 50°C, with a maximum operating pressure of 0.7 bar, enabling its use in diverse pneumatic systems. The solenoid requires a 24V power supply with a low power consumption of 0.35W, further optimized with an optional power-saving circuit reducing power to 0.1W.

The valve's compact size, measuring 7 mm in width, 12 mm in height, and 32 mm in length, allows seamless integration into limited space assemblies. It features female ports of M5 size with metric thread standards for consistent connection compatibility. Its electrical connection type is a grommet, ensuring reliable wiring and operation in industrial settings.

This product is manufactured in Japan and complies with RoHS standards, highlighting its environmental and quality commitments. Its lightweight construction, only 5 grams, aids in reducing system weight, especially important in precision instruments and automated equipment.

The valve supports 2 position operations with a single solenoid, providing effective pneumatic switching capabilities. Applications include automation, laboratory instrumentation, semiconductor manufacturing, and medical equipment due to its size and operational characteristics.

The model S070C-6AG-32 belongs to the S070 series designed to easily scale station numbers and adaptation for various pneumatic requirements.

For professionals requiring reliable, lightweight, and compact Pneumatic Solenoid Valves, the SMC S070C-6AG-32 offers high performance with low noise and power consumption in a robust die cast zinc body. Explore additional pneumatic valve solutions and accessories on EnvMart for comprehensive industrial automation needs.
