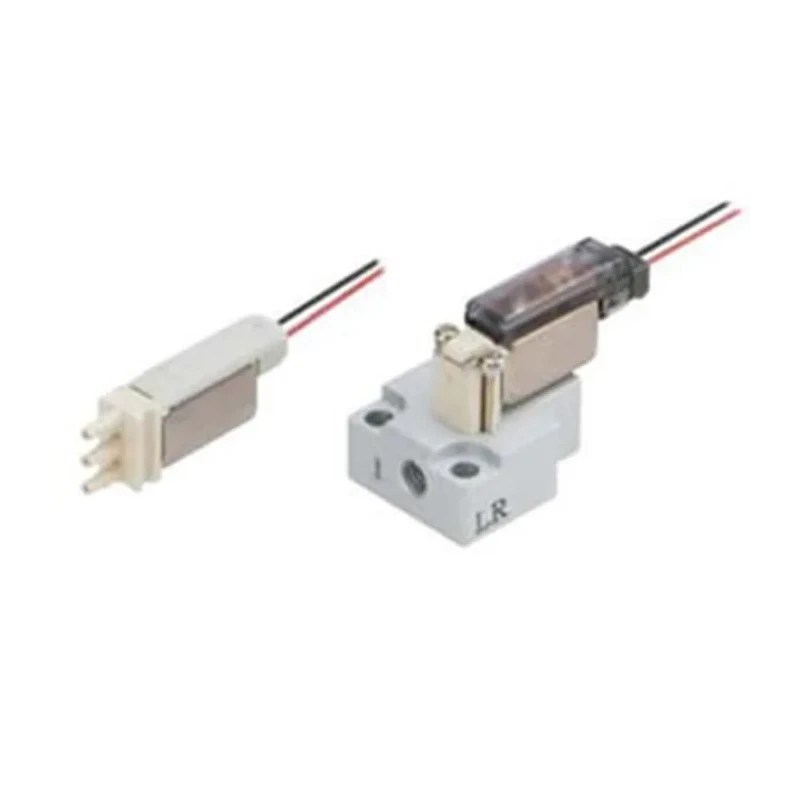

SMC Pneumatic Solenoid Valve 3 Port Die Cast Zinc Body 24V Single Solenoid Base Mount S070B-5BG-M5

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 3 Port Die Cast Zinc Body 24V Single Solenoid Base Mount S070B-5BG-M5



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V
Brand	SMC
Body Material	Die Cast Zinc
Maximum Operating Pressure	0.7 bar
Height	23mm
Length	33.5mm
Model	S070B-5BG-M5
Width	21mm
Mount Type	Base
Series	S070
Number Of Ports	3
Maximum Operating Temperature	50°C
Number of Positions	2
Port Size	M5
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Maximum Flow Rate	15L/min
Standards/Approvals	RoHS
Connection Thread Standard	Metric
Minimum Pilot Pressure	0.25bar
Electrical Connection Type	Grommet
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	0.35W

Key Features

Constructed with a die cast zinc body for durable performance.
Features a base mount type with a grommet electrical connection.
Operates at maximum pressure of 0.7 bar with minimum pilot pressure of 0.25 bar.
Compact design with dimensions 33.5mm length, 23mm height, and 21mm width.
Consumes low power at 0.35 watts for energy-efficient operation.
Two positions and female port gender with M5 metric connection thread standard.
Handles maximum flow rate of 15 liters per minute.
Operates within temperature range of -10°C to 50°C.

Product Description

SMC S070B-5BG-M5 pneumatic solenoid valve is a 3 port, single solenoid valve designed for reliable operation in pneumatic and low vacuum fluid power systems. It features a die cast zinc body providing durability and lightweight design, ideal for industrial, manufacturing, and HVAC pneumatic automation applications.

This valve operates at 24V, consuming only 0.35 watts of power, ensuring energy efficiency and quiet operation with noise levels at or below 38 dB(A). The compact size with 33.5mm length, 23mm height, and 21mm width allows for easy integration in tight spaces.

The valve is base mounted and electrically connected via a grommet, ensuring secure installation and connectivity. It supports a maximum operating pressure of 0.7 bar and a maximum pilot pressure of 0.7 bar, with minimum pilot pressure requirements of 0.25 bar, making it suitable for precise control in pneumatic circuits.

This solenoid valve has two positions and is equipped with female ports following the M5 metric thread standard. It can handle a maximum flow rate of 15 liters per minute, suitable for a variety of air and low vacuum applications.

Operating temperature ranges from -10°C to 50°C, accommodating diverse environmental conditions. The valve is RoHS compliant and manufactured in Japan, ensuring high quality and adherence to environmental and safety standards.

SMC Pneumatic Solenoid Valves are widely used in industrial automation, manufacturing equipment, laboratory setups, HVAC systems, and pneumatic control systems, offering dependable performance and ease of maintenance.

Explore more pneumatic solutions and industrial valve products within the EnvMart catalog to find matching and complementary components. Constructed with a die cast zinc body for durable performance. Features a base mount type with a grommet electrical connection.

Operates at maximum pressure of 0.7 bar with minimum pilot pressure of 0.25 bar. Compact design with dimensions 33.5mm length, 23mm height, and 21mm width. Consumes low power at 0.35 watts for energy-efficient operation.

Two positions and female port gender with M5 metric connection thread standard. Handles maximum flow rate of 15 liters per minute. Operates within temperature range of -10°C to 50°C. Complies with RoHS standards and is manufactured in Japan.
