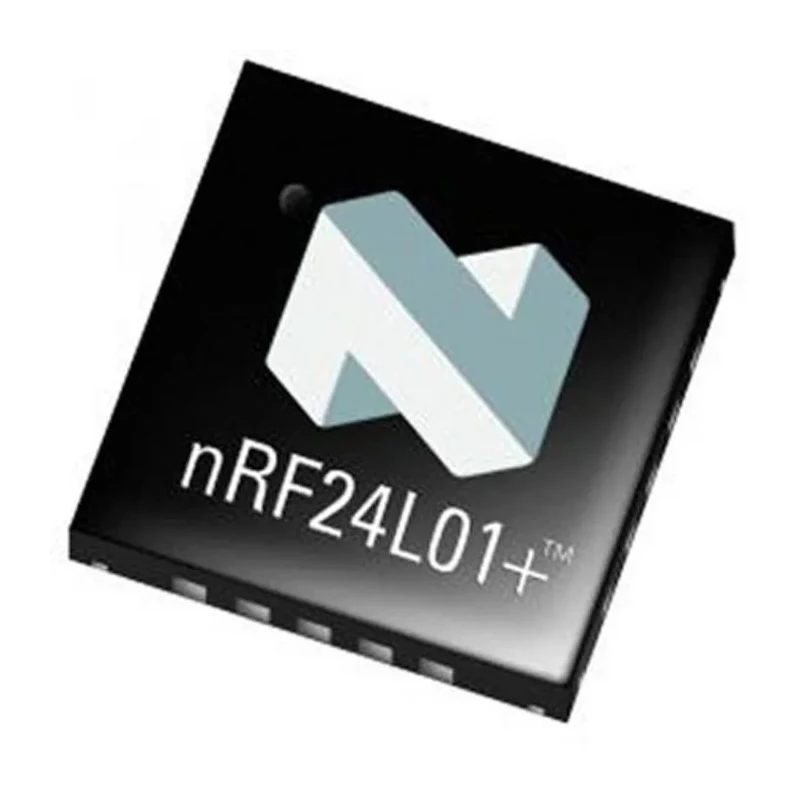

Nordic Semiconductor RF Transceiver IC 20-Pin QFN Low IF/ISM Transceiver SPI Interface 2Mbps 2483.5MHz NRF24L01P-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nordic Semiconductor |
| Height | 0.9mm |
| Length | 4mm |
| Model | NRF24L01P-T |
| Technology | Low IF/ISM Transceiver |
| Width | 4mm |
| Mount Type | Surface |
| Series | nRF24L01 |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Sub Type | Transceiver |
| Minimum Operating Temperature | -40°C |
| RF Frequency Range | 2.400 to 2.4835GHz ISM-Band with 126 channels |
| Receiver Sensitivity | -94dBm @ 250kbps |
| Interface Type | SPI |
| Pin Count | 20 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.9V |
| Host communication | serial SPI up to 10Mbps with Tx and Rx 32-byte FIFOs |
| Modulation Technique | GFSK |
| Operating Band 1 Frequency | 2483.5MHz |
| Number of Operating Bands | 1 |
| 6 x data pipe MultiCeiver™ for 1 | 6 star networks |
Key Features
- Operates in the 2.400 to 2.4835GHz ISM band with 126 frequency channels.
- Supports GFSK modulation technique for reliable signal transmission.
- Powered with a supply voltage range from 1.9V to 3.6V for versatile applications.
- Features a compact 20-pin QFN surface mount package with 4mm x 4mm dimensions and 0.9mm height.
- Offers enhanced ShockBurst™ protocol support for efficient packet communication and auto acknowledgement.
- Includes a serial SPI interface up to 10Mbps with 32-byte FIFOs for host communication.
- Wide operating temperature range from -40°C to 85°C suitable for industrial environments.
- Maximum RF power output of 0dBm and receiver sensitivity of -94dBm at 250kbps data rate.
Product Description
Nordic Semiconductor NRF24L01P-T is a compact, high-performance RF transceiver IC designed for operation in the 2.4GHz ISM band. This 20-pin QFN package device integrates a low IF architecture with GFSK modulation providing a maximum data rate of 2Mbps suitable for low-power wireless communication.
The device supports the Enhanced ShockBurst™ hardware protocol engine, facilitating efficient packet assembly, disassembly, automatic CRC calculation, acknowledgement, and retransmission for robust data transmission. It offers 126 frequency channels spanning 2.400 to 2.4835GHz and supports MultiCeiver™ architecture allowing simultaneous reception on up to six data pipes for star network topologies.
Power supply requirements range from 1.9V to 3.6V, enabling battery-operated and low-voltage systems. The serial SPI interface operates up to 10Mbps and provides flexible host communication with Tx and Rx FIFOs. The IC's minimal footprint and surface mount QFN package (4mm x 4mm x 0.9mm) make it ideal for space-constrained designs.
Designed for industrial, commercial, and consumer applications, this transceiver finds use in wireless PC peripherals, sports sensors, RF remote controls, home automation, asset tracking, active RFID, and ultra low-power IoT sensor networks.
Operates in the 2.4GHz ISM radio band with 126 channels. Up to 0dBm RF power output ensuring strong signal transmission. Receiver sensitivity of -94dBm at 250kbps data rate for reliable reception. Supports Enhanced ShockBurst™ hardware link layer with dynamic payload length and automatic acknowledgment for improved communication efficiency.
Six data pipe MultiCeiver™ support for star network configurations. Serial SPI interface up to 10Mbps with 32-byte FIFOs enables streamlined host interface. Compact 20-pin QFN package with 4mm length and width, and 0.9mm height.
Operates over a wide temperature range from -40°C to 85°C for industrial-grade reliability.
This Nordic Semiconductor RF Transceiver IC advances wireless communication solutions for embedded systems requiring low power consumption and robust data links. Explore more RF ICs and wireless modules at EnvMart for your industrial, commercial, and IoT projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates in the 2.400 to 2.4835GHz ISM band with 126 frequency channels.
This model supports a maximum data rate of 2Mbps.
The device can be powered with a supply voltage ranging from 1.9V to 3.6V.
It utilizes GFSK modulation technique for reliable signal transmission.
The receiver sensitivity is -94dBm at a data rate of 250kbps.
The QFN package measures 4mm x 4mm with a height of 0.9mm.
It supports six data pipes, allowing for star network configurations.
It operates over a wide temperature range from -40°C to 85°C.
It includes a serial SPI interface that operates up to 10Mbps with 32-byte FIFOs.
The maximum RF power output is 0dBm.
This transceiver is suitable for wireless PC peripherals, sports sensors, RF remote controls, home automation, asset tracking, and ultra low-power IoT sensor networks.
The package type is QFN, designed for surface mounting.
