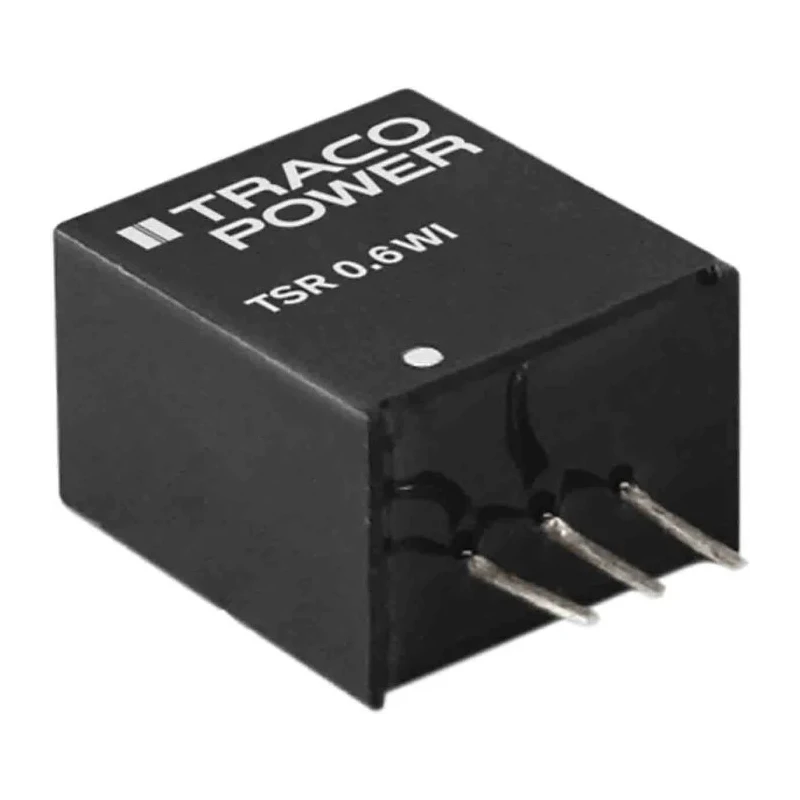

TRACOPOWER Non-Isolated DC-DC Converter Through Hole 12V DC Output 600mA TSR 0.6-48120WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 93% |
| Operating Temperature Range | -40 to +85°C |
| Length | 12mm |
| Model | TSR 0.6-48120WI |
| Depth | 13.4mm |
| Gross Weight | 3g |
| Width | 8.6mm |
| Mount Type | Through Hole |
| Series | TSR 0.6-48120WI |
| Output Current | 600mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Load Regulation | 0.9 % |
| Minimum Operating Temperature | -40°C |
| MTBF | 18160000h |
| Number of outputs | 1 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Input Voltage | 17V dc |
| Line Regulation | 0.6 % |
| Standards/Approvals | RoHS |
| Output Voltage 1 | 12V dc |
Key Features
- Achieves up to 94% efficiency, eliminating the need for a heatsink.
- Provides excellent line and load regulation with 0.6% and 0.9% respectively.
- Includes built-in protection against short circuit, overvoltage, overload, and over temperature.
- Operates reliably across a wide temperature range from -40°C to 85°C.
- Designed for distributed power systems and battery-powered applications.
- Pin compatible with LMxx linear regulators for easy integration.
- Lightweight design with a total weight of 3 grams.
- RoHS compliant ensuring environmental safety.
Product Description
TRACOPOWER TSR 0.6-48120WI Non-Isolated DC-DC Converter is a high performance power supply device providing a regulated 12V DC output voltage and 600mA output current in a compact through hole SIP package. It supports an ultra-wide input voltage range with an efficiency of up to 94%, making it suitable for applications where multiple bus and battery voltages are present.
This converter provides precise line and load regulation with 0.6% line regulation and 0.9% load regulation, ensuring stable output under varying load conditions. Protection features include safeguards against short circuit, overvoltage, overload, and thermal shutdown, enhancing device reliability and longevity.
With an operating temperature range of -40°C to +85°C and a robust package measuring 12mm (length) x 8.6mm (width) x 13.4mm (depth), this module fits well in compact distributed power systems, industrial machinery, telecommunications, and battery-powered setups. Its compatibility with LMxx linear regulators supports easy upgrades and replacements.
Ultra wide 8:1 input voltage range for versatile power inputs. No heatsink required due to high efficiency of up to 94%. Protection features include short circuit, overvoltage, overload, and over temperature. Compact SIP-3 through hole package with low standby current.
Operating temperature range from -40°C to +85°C. Pin compatible with LMxx linear regulators. Lightweight design at just 3 grams. RoHS compliant for environmental standards. 3-year warranty ensuring product reliability.
This product is ideally suited for industrial electronics, telecommunications, laboratory equipment, distributed power networks, and other applications requiring efficient and reliable DC-DC voltage conversion.
Explore more TRACOPOWER DC-DC Converters and related products on EnvMart for advanced power solutions tailored to your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 12V DC and an output current of 600mA.
It achieves an efficiency of up to 94%, which eliminates the need for a heatsink.
The operating temperature range is from -40°C to +85°C.
The dimensions are 12mm in length, 8.6mm in width, and 13.4mm in depth.
This unit is designed for through hole mounting.
It includes built-in protection against short circuit, overvoltage, overload, and over temperature.
It provides excellent line regulation of 0.6% and load regulation of 0.9%.
Yes, it is pin compatible with LMxx linear regulators for easy integration.
The maximum input voltage is 17V DC.
The total weight of this model is 3 grams.
The country of origin for this product is Taiwan.
