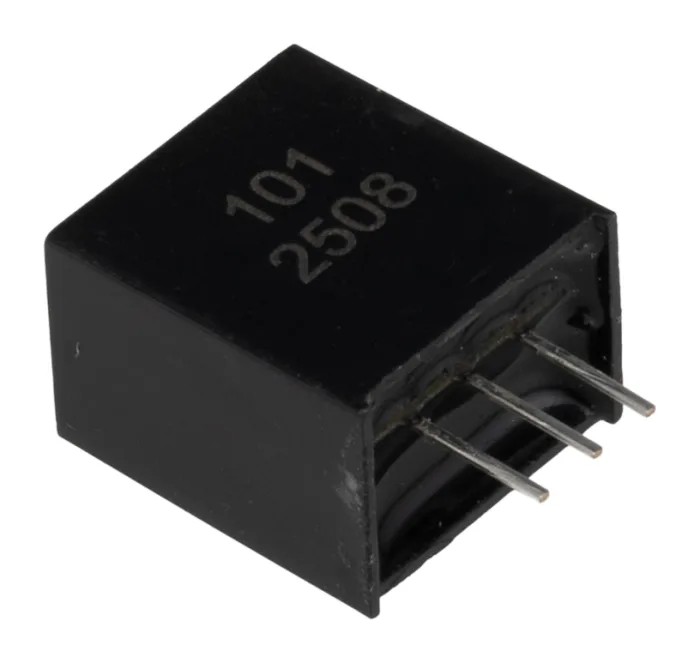

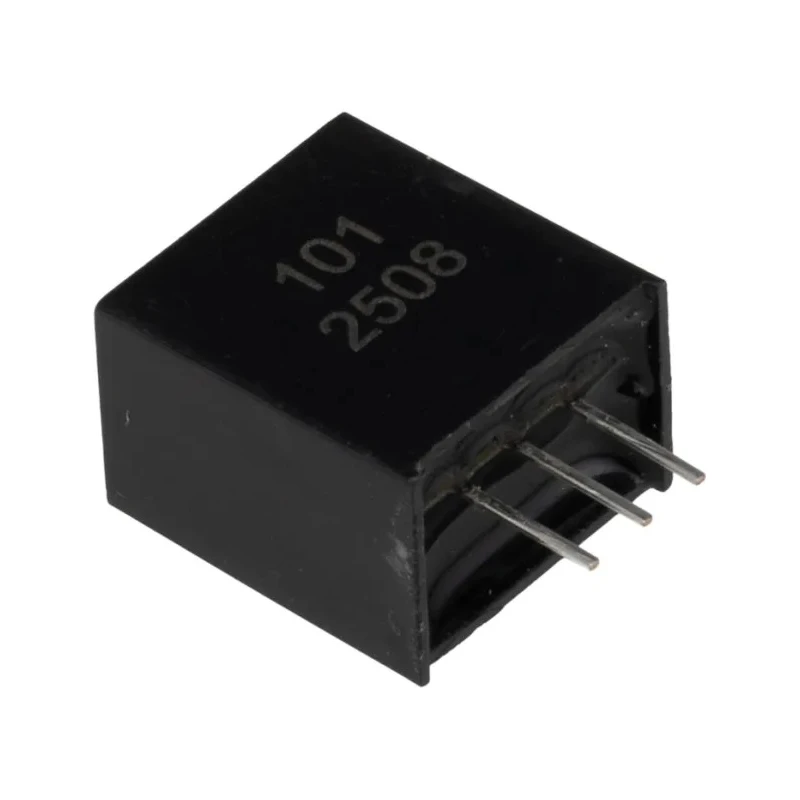

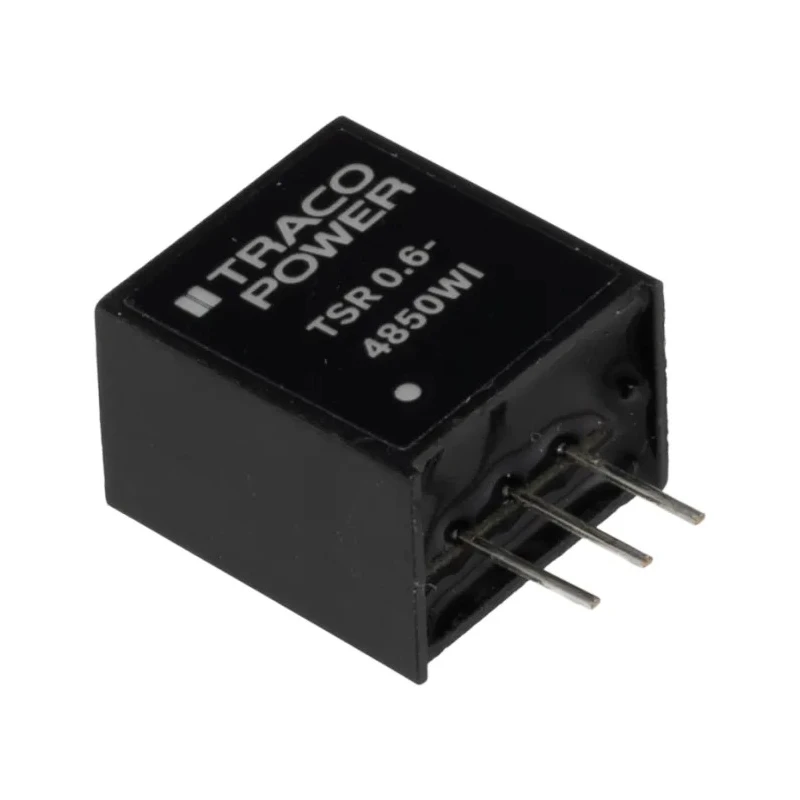

TRACOPOWER Non-Isolated DC-DC Converter Through Hole 5V Output 600mA 9-72V Input TSR 0.6-4850WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 89% |
| Length | 12mm |
| Model | TSR 0.6-4850WI |
| Depth | 13.4mm |
| Gross Weight | 3g |
| Width | 8.6mm |
| Mount Type | Through Hole |
| Series | TSR 0.6-4850WI |
| Output Current | 600mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Load Regulation | 0.9 % |
| Minimum Operating Temperature | -40°C |
| MTBF | 18160000h |
| Number of outputs | 1 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Input Voltage | 72V dc |
| Line Regulation | 0.6 % |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 9V |
| Output Voltage 1 | 5V dc |
| Ultra wide 8 | 1 input voltage range: 9-72 VDC |
Key Features
- High efficiency up to 94% minimizing heat dissipation.
- Compact SIP-3 package with through-hole mounting.
- Operating temperature range from -40°C to +85°C.
- Protection against short circuit, overvoltage, and overload.
- Low standby current for energy saving applications.
- Precise line and load regulation with 0.6% and 0.9% respectively.
- High reliability with MTBF of 18,160,000 hours.
- RoHS compliant for environmental safety.
Product Description
TRACOPOWER TSR 0.6-4850WI is a highly versatile non-isolated DC-DC POL converter series featuring an ultra-wide input voltage range from 9V to 72V DC. Packaged in a compact SIP-3 through-hole form factor, it reliably provides a stable 5V output at up to 600mA current, making it an ideal solution for varied distributed power system applications and battery-powered devices.
This converter boasts an efficiency reaching up to 94%, greatly reducing the need for additional cooling and heatsinks. Its robust design supports operations in harsh environments with operating temperatures from -40°C to +85°C, suitable for industrial, automotive, and communication equipment.
Standard features include precise line and load regulations of 0.6% and 0.9%, low ripple and noise of 50mV Pk-Pk, and protective mechanisms against short circuits, overvoltage, and overload conditions. These features ensure stable and reliable performance, extending the lifespan of connected systems.
The TSR 0.6-4850WI converter’s compact dimensions (12mm length, 8.6mm width, 13.4mm depth) and light weight (3g) allow easy integration onto printed circuit boards with through-hole mounting. The converter meets RoHS standards, aligning with environmental and safety requirements.
Ultra-wide 8:1 input voltage range enabling use with standard bus and battery voltages. High efficiency minimizing power loss and heat generation. Compact SIP-3 package for straightforward PCB integration. Operating temperature suitable for industrial and automotive environments.
Comprehensive protection features ensure safe and reliable operation. Low standby current reduces energy consumption during idle periods. Precise voltage regulation prevents output fluctuations under varying load and line conditions.
Long MTBF enhances system reliability and reduces maintenance. RoHS compliance guarantees adherence to environmental safety standards. Designed for use in distributed power systems, telecommunications, and battery-powered equipment.
This high-performance DC-DC Converter supports diverse industrial, manufacturing, and communication needs. For further selection of DC/DC converters, please explore EnvMart’s extensive range of power supply and converter products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 5V with a maximum output current of 600mA.
It features an ultra-wide input voltage range from 9V to 72V DC, allowing for versatile applications.
The efficiency of this unit can reach up to 94%, which minimizes heat dissipation during operation.
The converter has compact dimensions of 12mm in length, 8.6mm in width, and 13.4mm in depth.
It operates effectively within a temperature range from -40°C to +85°C, suitable for harsh environments.
It includes protection against short circuits, overvoltage, and overload conditions to ensure safe operation.
The load regulation is specified at 0.9%, ensuring stable output under varying load conditions.
This model has a line regulation of 0.6%, which helps maintain output voltage stability despite input variations.
The ripple and noise level is 50mV Pk-Pk, contributing to the stability of the output voltage.
The gross weight of this converter is 3g, making it lightweight and easy to integrate into circuits.
It is RoHS compliant, ensuring adherence to environmental safety standards.
This converter is designed for through-hole mounting, facilitating easy integration onto printed circuit boards.
