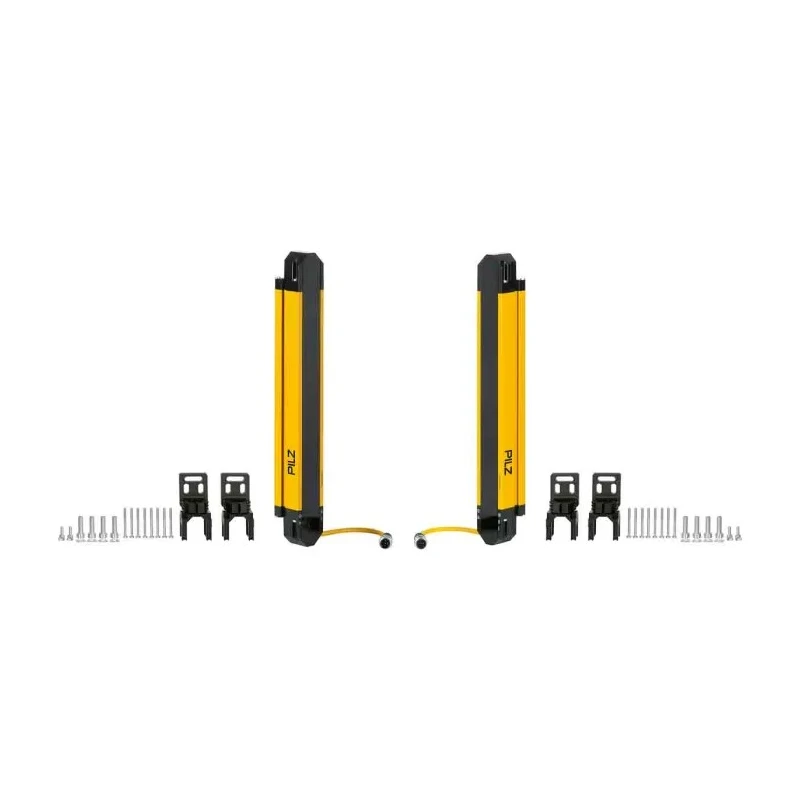

Pilz PSEN Series Light Curtain Receiver, Transmitter, 30 mm Beam Resolution, Type 4 Safety, 24V, 600mm Protective opII4H
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | Pilz |
| Height | 604mm |
| Length | 35mm |
| Model | opII4H |
| Width | 40mm |
| Series | PSEN opII4H |
| Terminal type | 5-Pin M12 |
| Component Type | Receiver, Transmitter |
| Standards/Approvals | KCs, TUV, CE, cULus, EAC |
| Maximum Supply Voltage | 24V |
| Safety Type | Type 4 |
| Protective Height | 600mm |
| Maximum Protective Width | 18m |
| Minimum Scanning Distance | 0.2m |
| Maximum Scanning Distance | 18m |
| Maximum Response Time | 15.2ms |
| Beam Resolution | 30mm |
Key Features
- The receiver and transmitter components create an infrared protected field for industrial safety.
- Features LED indicators for clear status information during operation.
- Constructed with durable aluminium alloy housing and die-cast zinc end caps for shock resistance.
- Optical synchronization ensures precise coordination between transmitters and receivers.
- Designed with 5-Pin M12 terminal connectors for secure electrical connection.
- Provides a protective height of 600 mm and maximum protective width of 18 m.
- Effective scanning distance ranges from 0.2 m minimum to 18 m maximum.
- The unit dimensions are 604 mm in height, 40 mm width, and 35 mm length.
Product Description
Pilz opII4H Series Light Curtain Receiver and Transmitter offer high-precision safety protection for industrial automation environments. This Type 4 safety device creates an infrared protected field with a 30 mm beam resolution, suitable for detecting personnel or objects within a protective zone.
The devices are powered by a 24V supply and feature robust aluminium alloy housings combined with die-cast zinc end caps to ensure shock resistance in demanding industrial applications. The optical synchronization technology allows transmitters and receivers to operate reliably together without interference.
LED indicators provide clear and immediate status information, facilitating easy installation, diagnostics, and maintenance. The safety light curtain has a protective height of 600 mm and supports a maximum protective width of up to 18 meters with scanning distances spanning from 0.2 meters minimum to 18 meters maximum.
Compact in size, the unit measures 604 mm high, 40 mm wide, and 35 mm long making it adaptable for various machine safeguarding setups. Its rapid maximum response time of 15.2 milliseconds ensures swift interruption capability to protect operators.
The receiver and transmitter combination generates an infrared safety field with 30 mm resolution. Durable construction includes aluminium alloy body and zinc end caps for enhanced shock resistance. Type 4 safety rating suitable for highest safety integrity level requirements.
Compatible with industrial automation systems requiring standard approvals like KCs, TUV, CE, cULus, and EAC. 5-Pin M12 terminal connections provide reliable and secure wiring. Protective dimensions cover 600 mm height with 18 m maximum width coverage.
Operational scanning distance range from 0.2 m to 18 m ensures flexible deployment. LED status indicators simplify operational monitoring and fault detection. Compact form factor eases mounting in diverse industrial machinery environments.
This light curtain system is ideal for industrial safety, automation control, manufacturing lines, packaging machinery, and other environments requiring personnel protection and machine safeguarding. Pilz’s opII4H Series ensures compliance with international safety regulations and standards, delivering reliable, fast, and accurate safety field detection.
Explore more Pilz automation and safety products in the Safety Light Curtain category on EnvMart for comprehensive industrial safety solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The protective height of this light curtain system is 600 mm.
This model supports a maximum protective width of up to 18 meters.
The effective scanning distance ranges from a minimum of 0.2 meters to a maximum of 18 meters.
The beam resolution of the Pilz PSEN opII4H series is 30 mm.
This model has a Type 4 safety rating, suitable for the highest safety integrity level requirements.
The light curtain operates on a maximum supply voltage of 24V.
The unit dimensions are 604 mm in height, 40 mm in width, and 35 mm in length.
It features 5-Pin M12 terminal connectors for secure electrical connection.
The maximum response time of this safety device is 15.2 milliseconds.
This model complies with several standards including KCs, TUV, CE, cULus, and EAC.
The light curtain is constructed with durable aluminium alloy housing and die-cast zinc end caps for shock resistance.
This light curtain is suitable for industrial safety, automation control, manufacturing lines, and packaging machinery.
