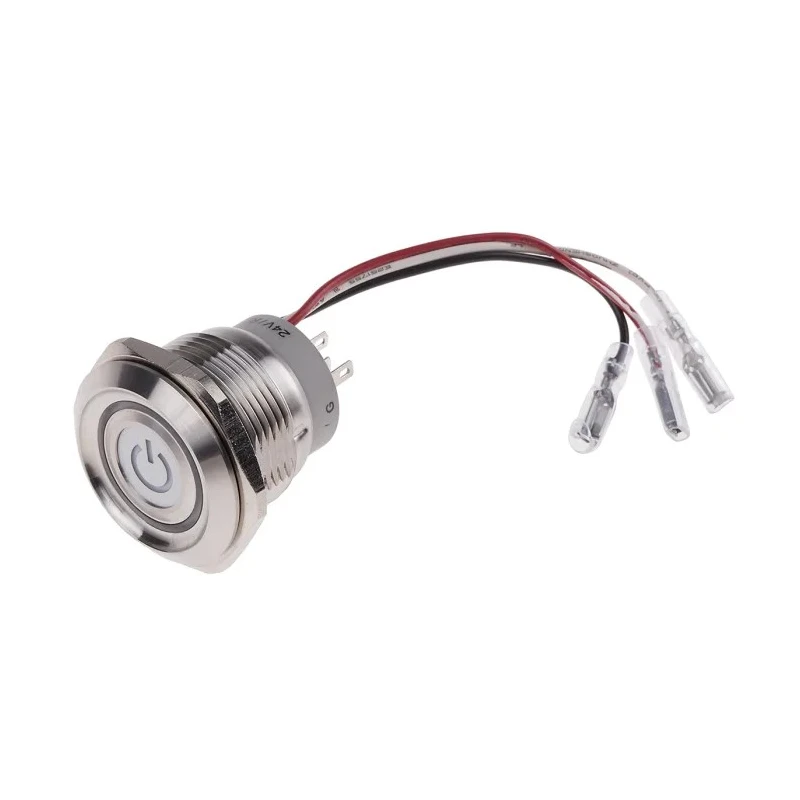

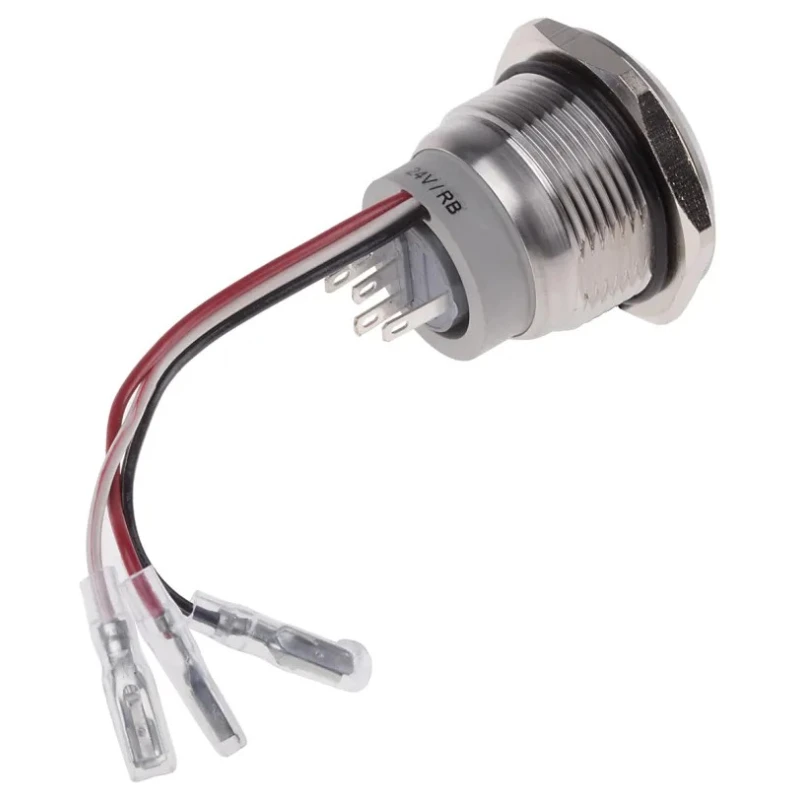

RS PRO Illuminated Momentary Push Button Switch, Panel Mount, 30.2 mm Cutout, SPDT RGB LED, IP67, 250 V AC, 5A 877-1858

RS PRO 877-1858 Illuminated momentary push button switch provides reliable operation for electrical and automation applications requiring high durability and protection. Designed for panel mounting with a precise 30.2 mm cutout, this switch features a Single Pole Double Throw (SPDT) contact configuration that supports a contact current of 5A at 250 V AC or DC, suitable for a wide range of control circuits.

The switch actuator is flat and white, offering an ergonomic interface. It is illuminated with RGB LEDs; the non-actuated state displays a green center and red ring, while the actuated ring transforms to blue for clear status indication. This lighting provides versatile signaling for complex control panels.

Robust construction includes a varnished and polished stainless steel bushing for enhanced resistance to wear and environmental factors. The product holds an IP67 ingress protection rating, making it dust-tight and capable of withstanding immersion in water. Its IK03 impact resistance rating ensures sturdiness against mechanical impacts typical in industrial environments.

Designed to operate reliably within a temperature range from -20°C to 55°C, the switch is well suited for industrial, manufacturing, HVAC, laboratory, and automation control panels where environmental resilience and precise switching are critical. The quick connect terminal type enables straightforward installation and maintenance.

RoHS compliance confirms the switch meets directive requirements for hazardous substances, supporting sustainable and safe industrial usage. The switch also features a power symbol legend for intuitive identification.

This illuminated push button switch from RS PRO offers a durable and visually clear solution for momentary switching in advanced electrical control systems. The actuator is flat and white colored for easy operation. Illumination includes center green and ring red colors when non-actuated, with ring changing to blue when actuated.

Rated electrical contact current of 5A at 250 V AC or DC. IP67 rated for dust-tight and water immersion protection with IK03 impact resistance. Constructed with varnished and polished stainless steel bushing for durability.

Operates reliably between temperatures of -20°C to 55°C. Features quick connect terminals for easy installation. Compliant with RoHS standards ensuring environmental safety. Explore more quality switches and components from RS PRO on EnvMart for industrial and laboratory automation applications.
