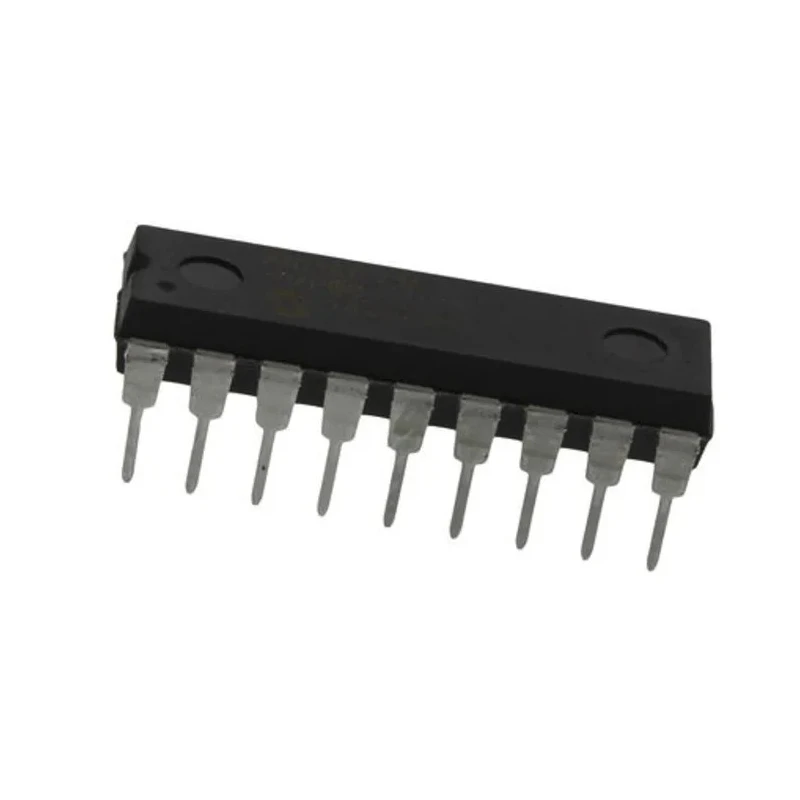

Microchip 8-bit PIC16F716-I/P Microcontroller 20MHz 3.5kB FLASH 18-Pin PDIP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 23.37mm |
| Model | PIC16F716-I/P |
| Width | 7.11mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 128bit |
| Interface Type | SPI |
| Pin Count | 18 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 3.5kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 8bit |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 4 x 8 Bit |
| Program Memory Type | FLASH |
Key Features
- Features SPI interface for communication.
- Operating voltage ranges from 2V to 5.5V.
- Includes 4 channel 8-bit ADCs for analog signal processing.
- Equipped with Power-On Reset, Watchdog Timer, and Brown-Out Reset for reliable operation.
- Temperature operating range from -40°C to 85°C.
- Supports In-Circuit Serial Programming for easy firmware updates.
- Built on Microchip's Mid-range PIC architecture with RISC instruction set.
- Package dimensions approximately 23.37mm length, 7.11mm width, and 4.95mm height.
Product Description
The Microchip PIC16F716-I/P is a versatile 8-bit microcontroller with a 20 MHz maximum clock speed and 3.5 kB of FLASH program memory. Packaged in an 18-Pin PDIP through-hole form factor, this device integrates a 128-bit RAM, SPI interface, and robust power management features, making it ideal for embedded control applications.
This microcontroller supports up to 25 programmable input/output pins and includes four 8-bit Analog to Digital Converters (ADCs), enhancing analog signal interfacing in industrial, automotive, and consumer electronics. The device operates reliably across a broad temperature range from -40°C to 85°C and accepts supply voltages between 2V and 5.5V, enabling usage in various environmental conditions.
Key features include Power-On Reset, Watchdog Timer, Brown-Out Reset, and In-Circuit Serial Programming (ICSP), facilitating robust and flexible system designs. Its Mid-range PIC architecture with a Reduced Instruction Set Computing (RISC) instruction set provides efficient processing and up to 5 MIPS throughput.
Package dimensions of 23.37 x 7.11 x 4.95 mm allow for compatibility with standard printed circuit boards. The maximum power dissipation of 1 Watt ensures power-efficient operation within embedded systems.
20 MHz maximum CPU speed with 35 instructions. 4 x 8-bit analogue comparators integrated ADCs. Power management features including POR, BOR, and WDT. 3 timers configured as two 8-bit and one 16-bit. In-Circuit Serial Programming support simplifies development cycles.
Suitable for industrial, automotive, and embedded control applications. Compact 18-pin PDIP package for through-hole mounting. Operating voltage range 2V to 5.5V with 1W max power dissipation.
This microcontroller is perfect for embedded system designers seeking a reliable and efficient 8-bit solution for a variety of control and processing tasks. Explore more Microchip Microcontrollers on EnvMart to meet your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz.
It operates within a voltage range of 2V to 5.5V.
This microcontroller features 3.5 kB of FLASH program memory.
The operating temperature range is from -40°C to 85°C.
It supports up to 25 programmable input/output pins.
This model is packaged in an 18-Pin PDIP (Plastic Dual In-line Package).
It features an SPI interface for communication.
It includes four 8-bit Analog to Digital Converters (ADCs).
The dimensions are approximately 23.37 mm in length, 7.11 mm in width, and 4.95 mm in height.
It includes Power-On Reset, Watchdog Timer, and Brown-Out Reset for reliable operation.
This microcontroller has three timers configured as two 8-bit and one 16-bit timer.
It is built on a RISC (Reduced Instruction Set Computing) instruction set architecture.
