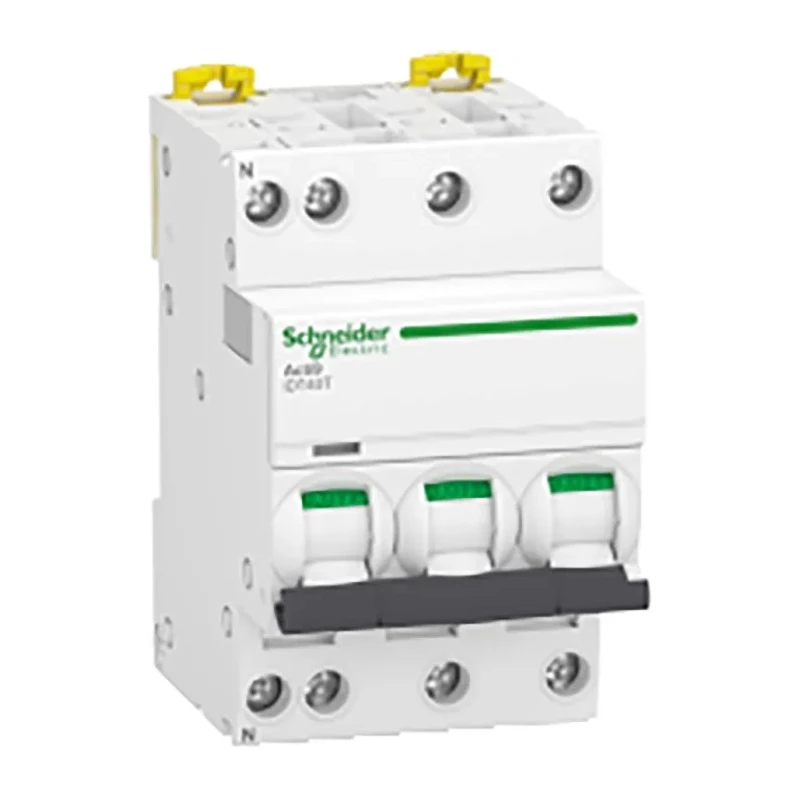

Schneider Electric Acti9 iDT40T Miniature Circuit Breaker 3-Pole 32A Type C 400V AC 6kA Breaking Capacity A9P22732

Schneider Electric A9P22732 Miniature Circuit Breaker 3-Pole 32A Type C is part of the Acti9 iDT40T series, offering robust and reliable circuit protection for industrial, commercial, and residential electrical installations. This device operates at a rated voltage of 400V AC and provides a rated current of 32A, with a breaking capacity of 6kA to safely interrupt fault currents, reducing risk of damage to wiring and equipment.

The breaker employs a thermal magnetic tripping mechanism, ideal for protecting circuits against overload and short circuits. It mounts on standard DIN rails, facilitating easy installation and maintenance, with screw terminal connections offering secure and durable wiring.

Compact in size, with dimensions 85mm (H) x 74mm (W) x 85mm (D), it fits neatly into electrical distribution panels without occupying excessive space. Its IP20 insulation rating ensures protection against solid foreign objects to safeguard users during operation.

Key safety features include Class-2 insulation for operator protection, the VisiTrip red trip indication window to quickly diagnose and resolve faults, and VisiSafe technology to assure safe downstream isolation under all conditions, even overvoltage scenarios. The toggle switch actuator allows manual resetting after trip events, enhancing ease of use.

This circuit breaker complies with international standards including CE marking, EN IEC 60947-2, EN IEC 60898-1, RoHS, and REACH regulations, reflecting its quality, environmental compliance, and safety. It suits applications with high inductive loads and switching surges, commonly found in industrial and commercial environments, making it a versatile solution for electrical safety.

The type C tripping characteristic means the MCB trips when the current reaches 5 to 10 times the rated current, suitable for general applications with moderate inrush currents. Class 2 insulation provides continuous protection for both qualified and unqualified persons against indirect contact and electrical hazards.

Manufactured in Hungary, this product combines high durability with robust construction, ensuring longevity and reliable performance under demanding conditions. It is a critical component in electrical distribution systems, protecting people and equipment by interrupting fault currents safely and efficiently.

Provides thermal magnetic tripping for overload and short circuit protection. Mounts on DIN rail with screw terminal connections. Compact size with 85mm height, 74mm width, and 85mm depth. IP20 rated insulation for enhanced safety.

Includes VisiTrip fault indication and VisiSafe downstream circuit safety. Compliant with CE, EN IEC 60947-2, EN IEC 60898-1, RoHS, REACH standards. Type C tripping characteristic for moderate inrush current protection. Class-2 insulation ensures operator and user protection.
