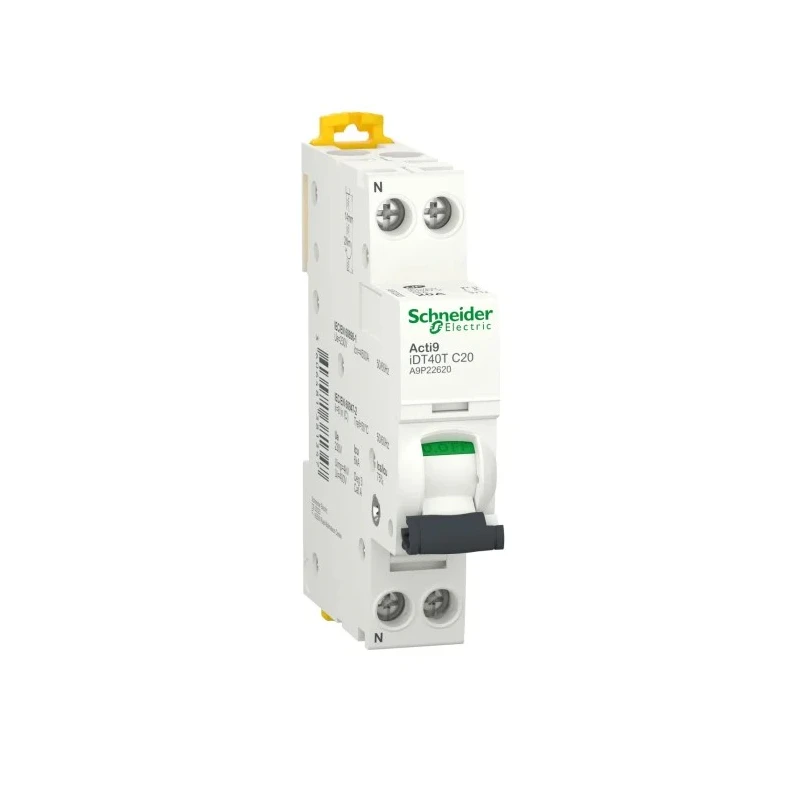

Schneider Electric Acti9 iDT40T Miniature Circuit Breaker, 1-Pole, 20A, Type C, 230V AC, 6 kA Breaking Capacity A9P22620

Schneider Electric A9P22620 Acti9 iDT40T Miniature Circuit Breaker is engineered to protect AC electrical circuits from damage caused by overload or short circuit faults. This single-pole breaker supports a 20A current rating and operates at a nominal voltage of 230V AC, making it ideal for residential and light commercial applications requiring reliable circuit protection.

The Type C tripping characteristic allows for fast reaction to moderate overloads without nuisance tripping, suitable for general-purpose circuits and motor protection. The thermal magnetic mechanism combines both thermal and magnetic trip elements for precise and dependable interruption performance, enhancing safety for connected equipment and wiring.

The unit features a user-friendly toggle switch that indicates breaker status and allows manual reset after fault clearance. Mounting is tool-free on standard DIN rails, facilitating rapid installation and maintenance. Its compact form factor occupies minimal panel space with dimensions of 85 mm height, 74 mm width, and 85 mm depth, optimizing board packing efficiency.

The IP20-rated enclosure delivers finger protection and prevents ingress of solid objects larger than 12 mm, enhancing operational safety. The breaker is constructed to endure mechanical and electrical durability up to 20,000 cycles, ensuring a long service life even under demanding conditions.

Compliance with international standards EN IEC 60898-1 and EN IEC 60947-2, alongside RoHS, REACH, and CE certifications, affirms product quality and environmental responsibility. Additionally, the device is designed for end-of-life component recovery, supporting sustainable manufacturing and disposal practices.

This MCB is suitable for various industrial applications including textile manufacturing, food and beverage production, and oil and gas industries, where precise and reliable circuit protection is critical.

Designed for 1-pole circuits with 20A current rating at 230V AC. Type C thermal magnetic tripping characteristic for sensitive circuit protection. 6 kA breaking capacity ensures safety during short circuit conditions. Toggle switch with visual trip indicator facilitates easy operation and fault indication.

Snap-on DIN rail mounting system for quick installation and removal. Compact size enhances distribution board space utilization. IP20 protection against finger access and solid object ingress. Compliance with EN IEC 60898-1, EN IEC 60947-2, RoHS, REACH, and CE standards.

Durability rated for 20,000 mechanical and electrical operations. For detailed technical information and support, explore the extensive electrical protection products within Schneider Electric's Acti9 series available at EnvMart.
