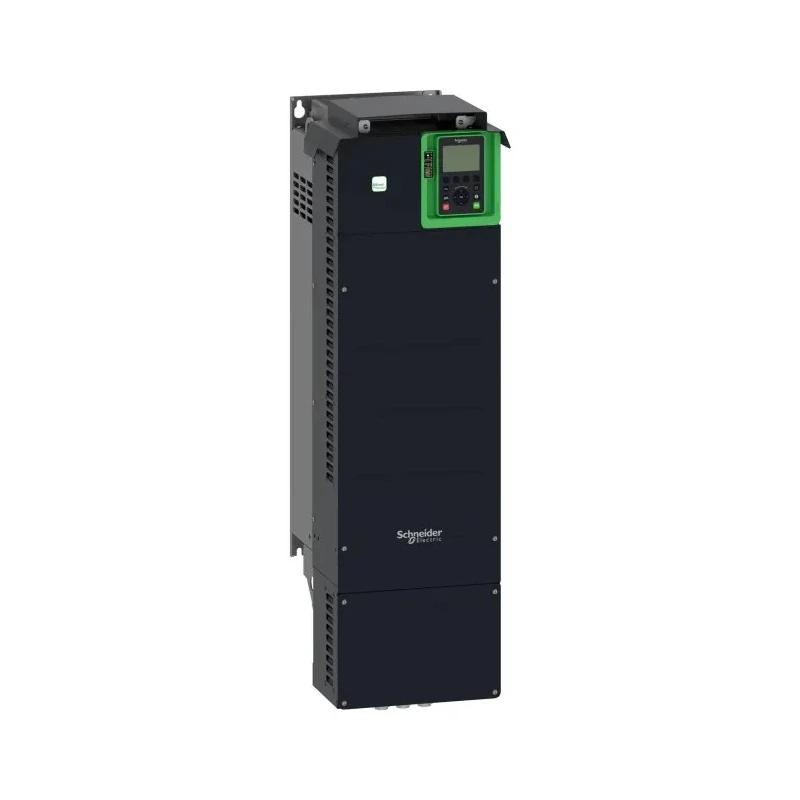

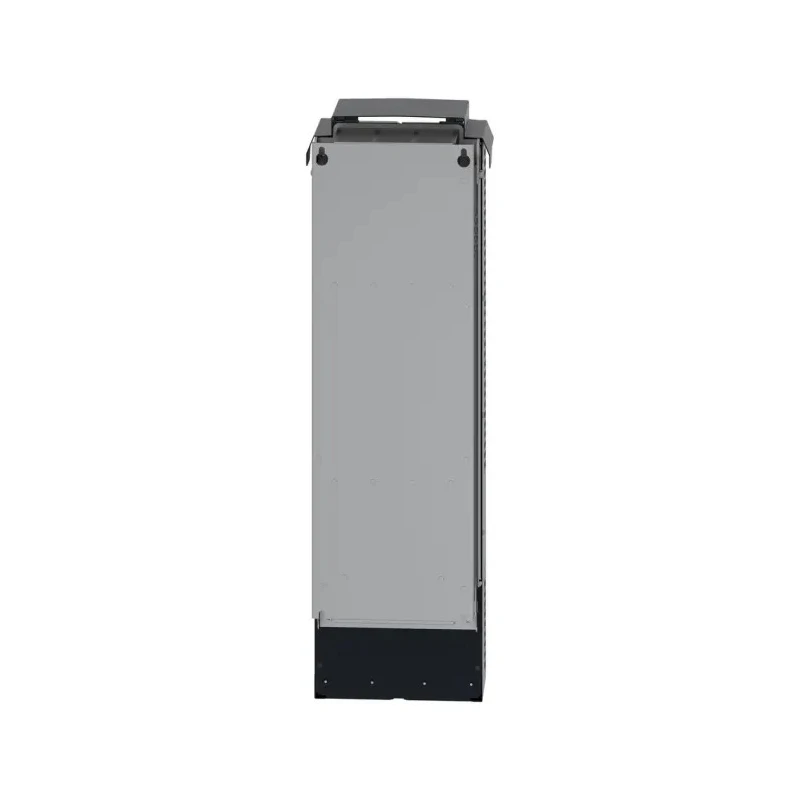

Schneider Electric Variable Speed Drive 90 kW 3 Phase Panel Mount ALTIVAR 630 Series ATV630D90N4

Schneider Electric ATV630D90N4 Variable Speed Drive 90 kW 3 Phase Panel Mount ALTIVAR 630 Series is engineered for precision control of asynchronous and synchronous motors in demanding industrial applications. Operating at a supply voltage of 400V and capable of providing a maximum output current of 173A, it enhances process efficiency and energy management.

This inverter drive features three built-in RJ45 communication ports, one Ethernet port, and two serial ports, enabling seamless integration into automation systems with Modbus TCP and serial protocols. Its variable frequency control optimizes motor operation, delivering energy savings of up to 30% during standby with the innovative Stop and Go function.

The drive supports a power rating of up to 90 kW / 125 hp for slight overload operations (120%) and up to 75 kW / 100 hp for significant overloads (150%). It features panel mounting with an IP21 protection rating, making it suitable for industrial indoor environments. The device operates reliably within a temperature range of -15°C to +60°C, with certifications to major international standards including EN/IEC 61800 and UL508C.

Its compact form factor (290 mm wide, 922 mm high, 323 mm deep) ensures easy installation in control panels. The ALTIVAR 630 Series drive supports applications in fluids management, water and wastewater treatment, mining, minerals and metals processing, oil and gas, food and beverage processing, and other industrial process control operations.

Accessories and options such as fan kits, graphic display terminals, I/O expansion modules, communication modules, and EMC input filters are available to tailor the drive to specific application needs. Designed for vertical mounting with minimal tilt tolerance (+/- 10°), this variable speed drive balances performance, efficiency, and flexibility for process and utility control.

This variable frequency drive supports asynchronous motors with advanced energy-saving features. It offers a maximum output current of 173A at a rated supply of 400V. Robust panel mounting with IP21 rating ensures protection in industrial environments.

Integrated communication ports include Ethernet and Modbus protocols for flexible control. Operating temperature range from -15°C to +60°C suits varied ambient conditions. Compact dimensions of 290mm width, 922mm height, and 323mm depth enable efficient installation.

The ALTIVAR 630 series supports slight to significant motor overloads up to 150%. Designed for fluids management, water treatment, mining, oil and gas, and food and beverage industries. Explore the range of Schneider Electric automation and Inverter Drives on EnvMart for reliable industrial motor control solutions.
