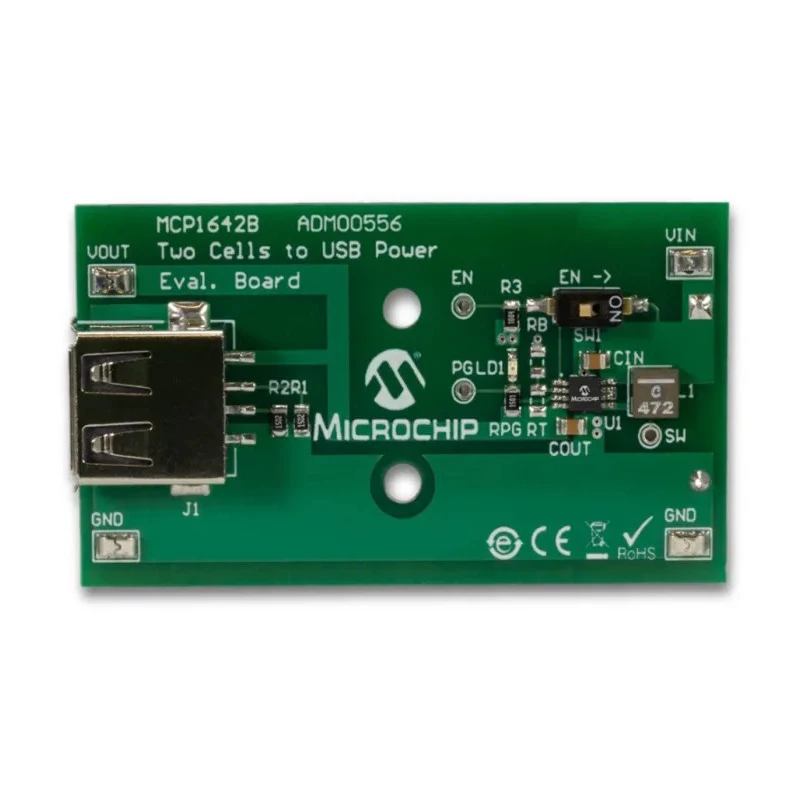

Microchip MCP1642B AA Batteries to USB Boost Regulator Evaluation Board ADM00556
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | ADM00556 |
| Output Current | typical 700 mA @ 5V output, 2.8V input |
| Interfaces | USB A output connector |
| Output Voltage | 5.0V |
| Standards/Approvals | ISO |
| Kit Classification | Development Board |
| Featured Device | MCP1642B |
| Kit Name | AA Batteries to USB |
| PWM switching frequency | 1 MHz |
| Microchip DM164127Brand | Microchip |
Key Features
- The evaluation board provides a boost regulator function to convert AA battery power to USB output voltage.
- Typical output current is 700 mA at 5 V output, with 2.8 V input from batteries.
- The switching frequency of the PWM regulator is 1 MHz, supporting efficient power conversion.
- Includes a USB A output connector for easy integration with USB devices.
- Designed as a development board to facilitate testing and evaluation of the MCP1642B device performance.
- ISO standards compliant ensuring high quality and reliable operation.
- Suitable for power management applications requiring battery to USB voltage regulation.
- Compact and robust platform optimized for educational, laboratory, and embedded system prototyping.
Product Description
Microchip ADM00556 MCP1642B AA Batteries to USB Boost Regulator Evaluation Board is a specialized development platform designed to showcase the performance of the MCP1642B switching boost regulator integrated circuit. This evaluation board converts the voltage from AA battery cells to a stable 5 V USB output, suitable for powering USB devices from battery sources.
The MCP1642B device features a peak current mode control switching regulator that operates at a 1 MHz PWM frequency, achieving highly efficient DC to DC voltage boost conversion. Typical output current capability is 700 mA at 5 V, when powered by an input voltage of around 2.8 V from AA batteries, making it ideal for portable and battery-operated electronics requiring USB power output.
The board includes a USB A output connector for straightforward connection to USB devices, facilitating rapid prototyping and testing. This development kit complies with ISO standards, assuring consistent quality and performance.
Engineers, designers, and developers can utilize this evaluation board for a range of power management applications, including embedded system development, educational projects, and experimental setups involving regulated USB power from AA batteries.
The compact form factor and comprehensive support documentation make it well-suited for laboratory environments and field testing. This evaluation board allows assessment of real-world device behavior, including load handling, efficiency, and regulation under various conditions.
The Evaluation Board supports effective power conversion from AA batteries to USB supply voltage. The MCP1642B device embedded on the board is a high-frequency switching boost regulator. The platform is designed for use in educational, industrial, and commercial development settings.
The USB A output interface simplifies integration with a wide range of USB-powered electronics. ISO compliance ensures the device meets international quality and safety standards.
This Microchip development board is an essential tool for those seeking to implement or evaluate efficient battery-powered USB boost regulation. Explore more from the Power, Motor & Robotics Development Tools category at EnvMart for related products and solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The typical output current is 700 mA at a 5 V output when powered by an input voltage of around 2.8 V from AA batteries.
This evaluation board provides a stable output voltage of 5.0 V.
The PWM switching frequency of the MCP1642B is 1 MHz, which supports efficient power conversion.
The evaluation board includes a USB A output connector for easy integration with USB devices.
The ADM00556 evaluation board is designed to showcase the performance of the MCP1642B switching boost regulator integrated circuit and facilitate testing and evaluation.
The evaluation board complies with ISO standards, ensuring consistent quality and performance.
It is suitable for power management applications requiring battery to USB voltage regulation, including embedded system development and educational projects.
The country of origin for this evaluation board is India.
The model number of this evaluation board is ADM00556.
The compact form factor is optimized for educational, laboratory, and embedded system prototyping.
The board includes a USB A output interface, which simplifies integration with a wide range of USB-powered electronics, facilitating rapid prototyping and testing.
The featured device integrated into the evaluation board is the MCP1642B switching boost regulator.
