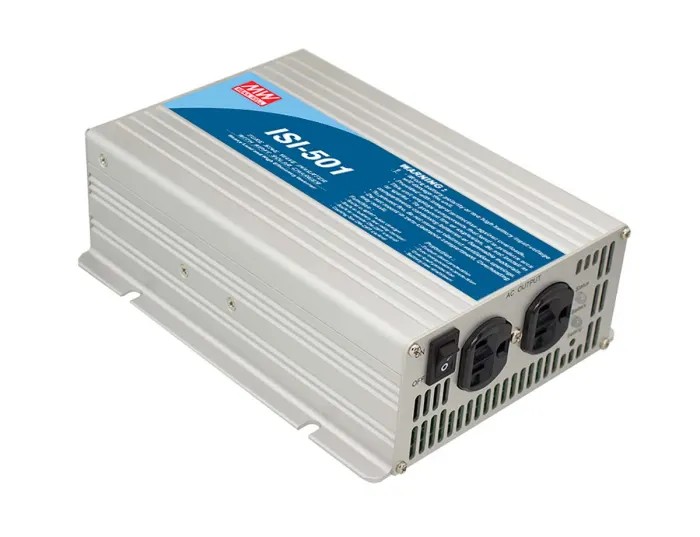

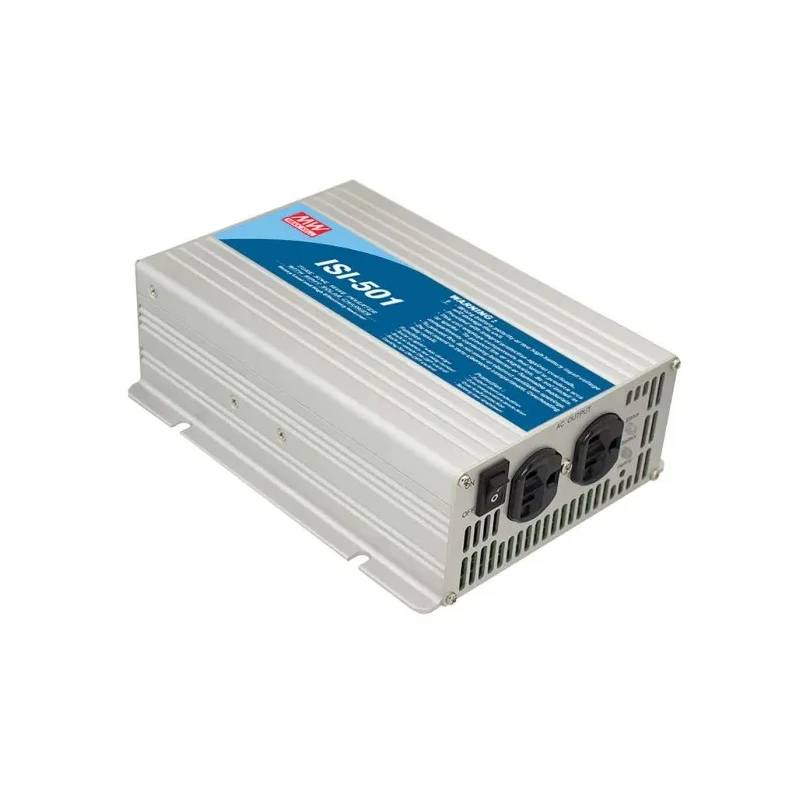

MEAN WELL Surface Mount 500W Power Inverter, 21V dc & 30V dc Input, 230V ac Output ISI-501-224B

MEAN WELL ISI-501-224B surface mount power inverter is a high-performance DC to AC inverter designed to convert 21V or 30V DC input voltage into 230V AC output with a rated power of 500W. This model features true sine wave output, ensuring a clean and stable power supply ideal for sensitive electronic equipment and industrial applications. Its low total harmonic distortion (THD) protects connected load devices from electrical disturbances.

Equipped with a built-in MPPT solar charger, the inverter achieves up to 98% typical MPPT efficiency, optimizing solar energy harvesting for 24V battery charging. This makes it an excellent choice for renewable energy solutions and off-grid solar power systems. The inverter supports surge power up to 1000W, accommodating temporary high loads.

The product boasts a compact form factor housed in a surface mount enclosure measuring 205mm in length, 158mm in width, and 67mm in depth, facilitating easy installation in confined spaces. Its operating temperature range from -20°C to 40°C ensures stable function in diverse environmental conditions.

Reliability is enhanced by a mean time between failures (MTBF) of 57,800 hours. Multiple built-in protections safeguard the device and connected equipment against battery low alarm and shutdown, over voltage, overload, over temperature, output short circuit, and reversed input polarity. These features contribute to increased system longevity and user safety.

Weighing 2.4 kg, the inverter is lightweight yet robust, designed to meet CE standards of safety and quality. It is ideal for industrial automation, laboratory power supply, solar energy systems, telecommunications backup, and other commercial applications requiring stable AC power from DC sources.

True sine wave output for clean power delivery with minimal distortion. Built-in 500W MPPT solar charger with high efficiency maximizes solar utilization. Compact surface mount design fits various installation setups. Wide temperature tolerance supports operation from -20°C to 40°C.

Comprehensive protective features enhance equipment safety and reliability. Energy efficient with 88% conversion efficiency, reducing power wastage. Single output channel with surge capability up to 1000W for transient loads.

CE certified, manufactured in Taiwan, Province Of China, ensuring compliance with international standards. Lightweight at 2.4 kg for easy handling and mounting. Explore more Power Inverters and related electronic components on EnvMart for your industrial and commercial power conversion needs.
