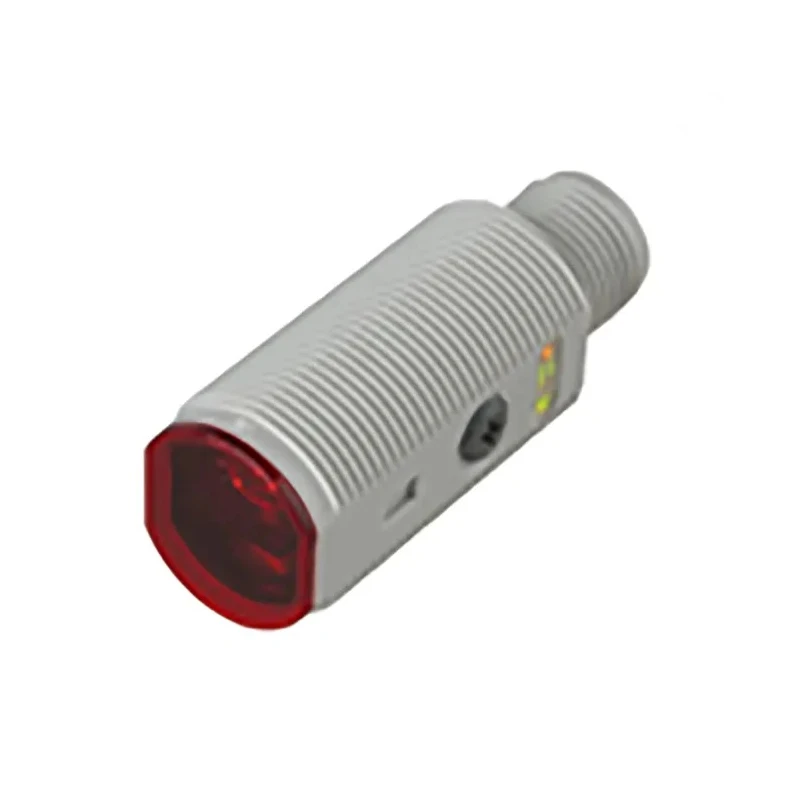

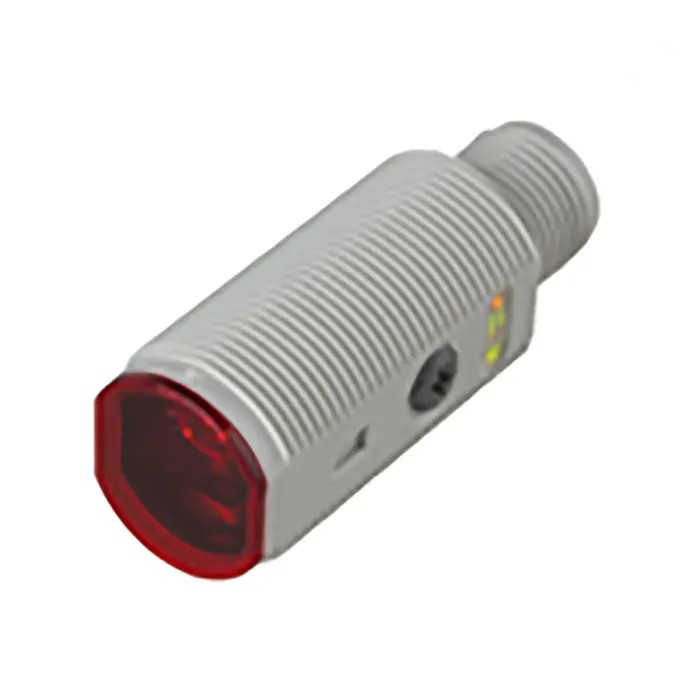

Carlo Gavazzi Diffuse Photoelectric Sensor Miniature Sensor 1 m Detection Range PNP NO/NC IP67 IP69K PA18CAD10PAM1SA
Specifications
| Country of Origin | Lithuania |
|---|---|
| Output | 100 mA, NPN or PNP, N.O & N.C |
| Range | 1 m (Axial), 0.8 m (Radial) |
| Brand | Carlo Gavazzi |
| Response time | 1ms |
| Light Source | LED |
| Detection range | 1 m |
| Model | PA18CAD10PAM1SA |
| IP Rating | IP67, IP69K |
| Housing Material | ABS |
| Output type | PNP NO/NC |
| Series | PA18 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 25mA |
| DetectIon Type | Diffuse |
| Terminal type | M12 Connector |
| Protection | reverse polarity, short circuit and transients |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | UL, IEC, CSA |
| Sensor Style | Miniature |
Key Features
- The sensor operates with a light source LED and provides diffuse type detection.
- Equipped with an M12 connector terminal type for easy installation.
- Supports maximum DC voltage of 30V dc and maximum current rating of 25mA.
- Functions reliably from -25°C to 60°C operating temperatures.
- Features excellent EMC performance and protection against reverse polarity, short circuits, and transients.
- Includes potentiometer for sensitivity adjustment, allowing flexible detection tuning.
- Built in a durable ABS housing, suitable for industrial environments.
- Response time is fast, at 1 millisecond for precise sensing.
Product Description
Carlo Gavazzi PA18CAD10PAM1SA diffuse Photoelectric Sensor is a high-performance miniature sensor designed for precise object detection in industrial automation and control applications. The sensor features a compact 18 mm cylindrical ABS housing that withstands harsh environments, offering IP67 and IP69K ingress protection ratings suitable for washdown and cleaning processes in manufacturing and food processing industries.
This sensor utilizes a red LED light source at 625 nm wavelength for diffuse reflective sensing up to 1 meter in axial range, with 0.8 meter in radial detection capabilities. The output options include PNP normally open and normally closed functions with an output current capacity of 100 mA, compatible with various control systems.
Designed for reliability, the sensor protects against reverse polarity, short circuits, and electrical transients. It has a rapid response time of 1 ms, making it ideal for fast-moving assembly lines and high-speed automation tasks.
The sensitivity can be adjusted via an integrated potentiometer, ensuring optimal performance across diverse applications. Terminal termination via M12 connector allows quick and secure wiring setup.
This product conforms to international standards including UL, IEC, and CSA, ensuring compliance with safety and performance norms. The sensor’s compact design and robust build quality make it suitable for electrical, automation, and control gear environments in laboratory, industrial manufacturing, HVAC, and packaging sectors.
The sensor operates with a light source LED and provides diffuse type detection. Equipped with an M12 connector terminal type for easy installation. Supports maximum DC voltage of 30V dc and maximum current rating of 25mA.
Functions reliably from -25°C to 60°C operating temperatures. Features excellent EMC performance and protection against reverse polarity, short circuits, and transients. Includes potentiometer for sensitivity adjustment, allowing flexible detection tuning.
Built in a durable ABS housing, suitable for industrial environments. Response time is fast, at 1 millisecond for precise sensing. Compatible with NO (normally open) and NC (normally closed) output switching functions. Certified to UL, IEC, and CSA standards for quality assurance.
Carlo Gavazzi sensors deliver trusted performance in a wide range of automation and control applications. Browse more photoelectric and miniature sensors on EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this model is 1 meter in axial range and 0.8 meters in radial detection capabilities.
It offers PNP output options with normally open (N.O) and normally closed (N.C) functions, capable of handling a maximum output current of 100 mA.
The maximum operating temperature for this sensor is 60°C.
This model is equipped with an M12 connector terminal type for easy installation.
The response time is fast, at 1 millisecond, making it suitable for high-speed applications.
It has IP67 and IP69K ingress protection ratings, making it suitable for harsh environments and washdown applications.
The minimum operating temperature for this unit is -25°C.
This sensor utilizes a red LED light source at a wavelength of 625 nm for diffuse reflective sensing.
The housing is constructed from durable ABS material, suitable for industrial environments.
It features protection against reverse polarity, short circuits, and electrical transients.
This model conforms to international standards including UL, IEC, and CSA, ensuring compliance with safety and performance norms.
The sensitivity can be adjusted via an integrated potentiometer, allowing for flexible detection tuning.
