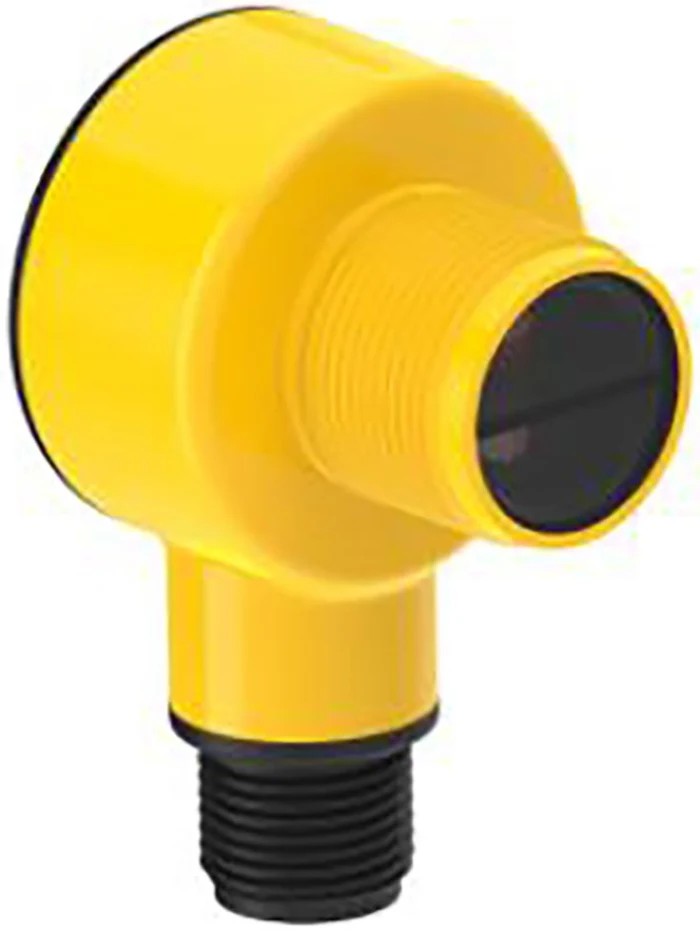

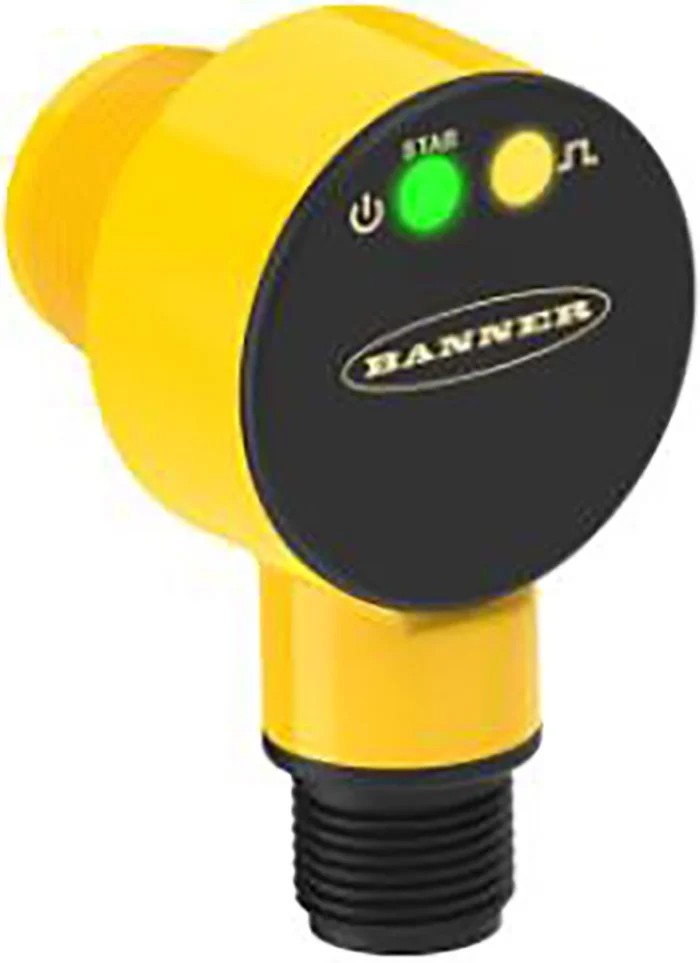

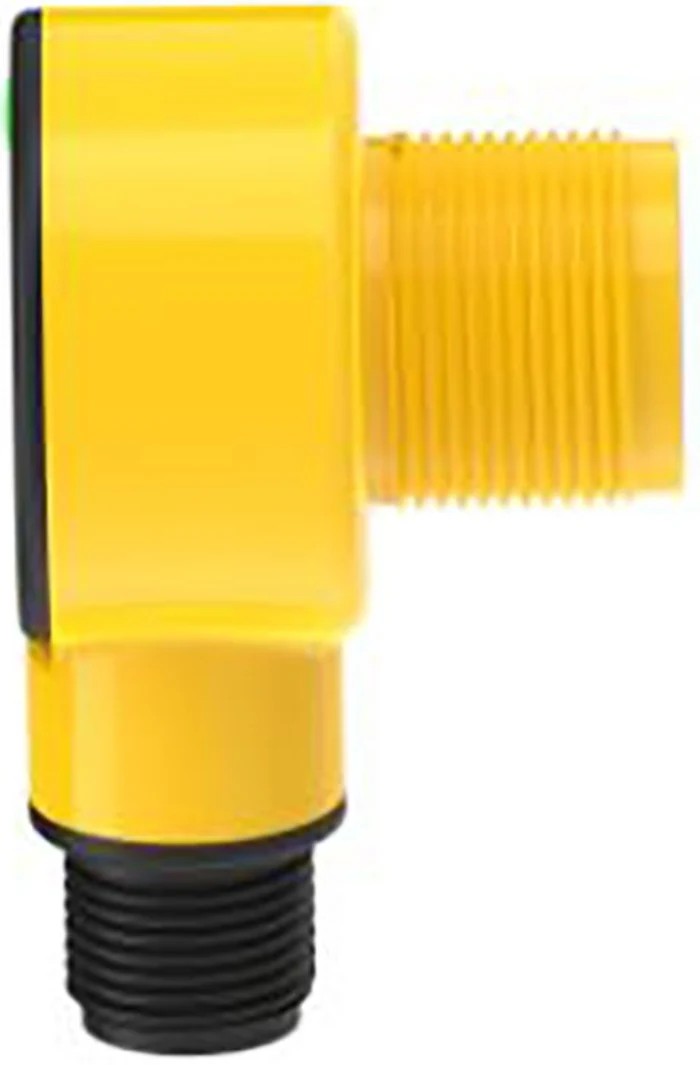

Banner Diffuse Photoelectric Sensor, Barrel Style, 750 mm Detection Range, 30V DC, PNP Output, IP69K Protection T18-2VPDL-Q8

Banner T18-2VPDL-Q8 diffuse photoelectric sensor is a barrel-style sensor engineered for industrial and automation applications where reliable object detection is critical. Offering a detection range of 750 mm, this sensor uses a red LED light source to project a diffuse beam, enabling it to detect objects by reflected light. The PNP output facilitates seamless integration into control systems that require sourcing outputs.

The sensor housing is crafted from tough polybutylene terephthalate polyester (PBT), providing excellent resistance against chemical attack and mechanical abrasion. This durability makes it suitable for harsh environments including food processing and manufacturing lines. Rated IP67, IP68, and IP69K, the sensor is dust-tight, capable of withstanding temporary submersion in water and resistant to high-pressure, high-temperature water jets, ensuring dependable operation in wet or washdown conditions.

Operating reliably in temperatures from -40°C to +70°C, the sensor covers a broad thermal range for extreme environments. Its M12 connector and flange mount design offer easy installation options even in tight or complex machinery spaces. The sensor’s response time of 1.5 to 750 milliseconds supports fast detection processes required in automated systems.

Additional features include built-in ASIC technology which reduces optical and electrical noise for enhanced measurement accuracy and continuous short circuit protection that prevents damage from voltage spikes, minimizing downtime risks. The sensor conforms to CE, cULus, and ECOLAB certifications, reflecting its quality and suitability for demanding industrial and medical imaging applications.

Equipped with a 4-pin terminal and operates at a maximum DC voltage of 30V. Incorporates a highly visible red LED light source for precise alignment. Built with durable polybutylene terephthalate polyester housing resistant to chemicals and abrasion.

Operates reliably within a temperature range from -40°C to +70°C. Designed with M12 thread size and flange mount type for versatile installation. Features ASIC technology to minimize optical and electrical noise, enhancing accuracy.

Short circuit protection safeguards sensor performance during electrical faults. Meets CE, cULus, and ECOLAB standards ensuring high manufacturing quality.

This photoelectric sensor is ideal for food & beverage, medical imaging systems, manufacturing processes, and automated guards and gates in industrial automation environments. The robust design ensures long-term dependability with minimal maintenance.
