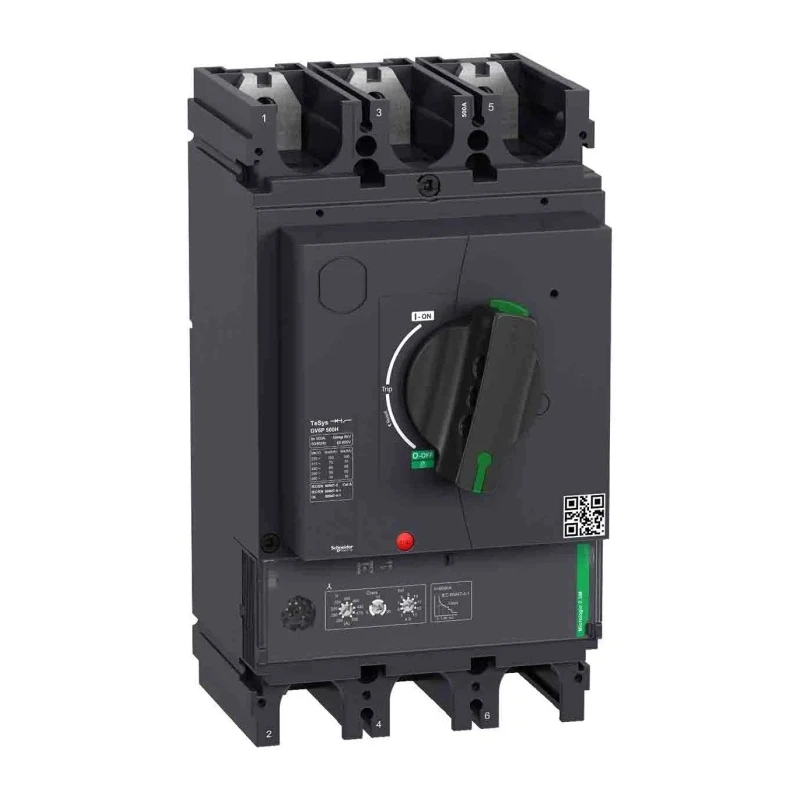

Schneider Electric TeSys GV6P Miniature Circuit Breaker 3-Pole 500A 690V AC 70 kA Breaking Capacity

Schneider Electric GV6P500H Miniature Circuit Breaker is a motor circuit breaker from the TeSys GV6P series offering robust electrical protection with a 3-pole design, 500 amp current rating, and 690V AC operating voltage. Ideal for industrial, manufacturing, and electrical distribution applications, it safely interrupts fault currents up to 70 kiloamperes to protect wiring and equipment from damage.

This breaker features a thermal magnetic tripping mechanism which combines instantaneous and thermal protection, ensuring rapid response to overcurrent conditions and reliable circuit safeguarding. The screw-type terminals facilitate secure and convenient wiring connections, while DIN rail mounting allows versatile installation within electrical panels and control boxes.

The compact dimensions - 179mm (W) x 105mm (H) x 255mm (D) - make it suitable even where space is limited. Its IP20 ingress protection rating provides resistance to solid objects, contributing to operator safety.

Manufactured with strict adherence to UL 60947-4-1, EN IEC 60947-1, EN IEC 60947-2, and CSA C22.2 No. 60947-4-1 standards, this circuit breaker assures compliance with international quality and safety norms. Additionally, it holds a Better World designation indicating design for disassembly, supporting environmental sustainability goals.

Typical applications include industrial automation systems, electrical distribution networks, motor control centers, HVAC systems, and manufacturing plants requiring dependable circuit protection with high breaking capacity.

Provides high breaking capacity of 70 kA for reliable fault interruption. Equipped with thermal magnetic tripping mechanism for instantaneous and thermal protection. Mount type suitable for DIN rail installation ensuring easy integration.

Features IP20 protection rating for safety against solid objects. Terminals employ screw type connection for secure wiring. Complies with international standards including UL 60947-4-1 and EN IEC 60947 series for assured quality.

Compact size fits efficiently in electrical panels and switchgear assemblies. Better World claim for design aiding sustainability through disassembly. Explore more Schneider Electric products and other high-quality Miniature Circuit Breakers in the EnvMart catalog for your industrial and commercial electrical needs.
