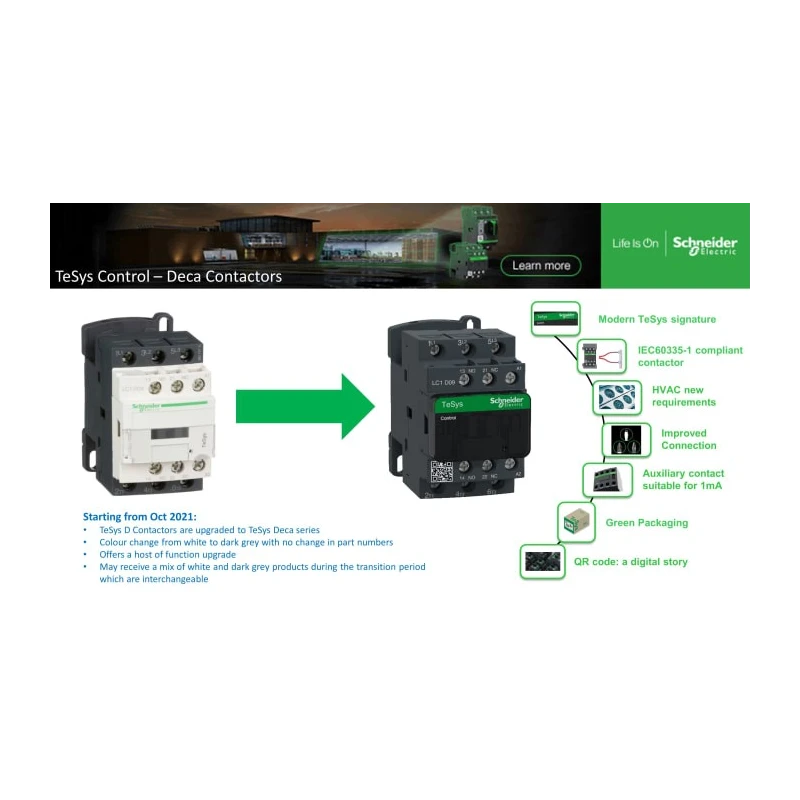

Schneider Electric LC1D TeSys D 3-Pole Contactor, 24V AC Coil, 16 A, 7.5 kW, 3 NO, 300 V DC, 690 V AC LC1D123B7

Schneider Electric LC1D123B7 TeSys D 3-Pole Contactor with a 24V AC coil is designed for robust motor control applications and resistive loads, supporting power ratings up to 7.5 kW and a 16 A contact current. It operates efficiently under AC1 and AC3 utilization categories suitable for various industrial applications including motors, lifts, escalators, conveyors, and pumps.

This contactor provides a long mechanical and electrical lifespan, offering reliable switching with a linear translation mechanism that ensures double break of the poles for enhanced durability. It includes one auxiliary contact block with a 1 NO/1 NC configuration to extend switching capability and supports spring terminal connections with IP20 finger-safe protection and international markings for safety.

Installation flexibility is achieved through DIN rail or panel mounting options. The control circuit operates at 24V AC, with a maximum operating temperature rating of 60°C and minimum operating temperature down to -5°C allowing operation in varied environments. The compact dimensions of Length 99mm, Width 45mm, and Depth 86mm make it suitable for tight installation spaces.

Manufactured with high compliance to UL, IEC, and EN standards, this contactor is a Better World product designed for disassembly to support sustainability efforts. It is made in Indonesia and designed to protect the coil from voltage surges through an integrated peak limiting diode suppressor, ensuring long-term reliability in industrial, manufacturing, and HVAC applications.

Equipped with a 24V AC coil for efficient operation. Three poles with normal state configuration of 3 NO contacts for motor control. Supports contact voltage ratings of 300 V DC and 690 V AC. Includes one auxiliary contact with 1 NO/1 NC configuration.

Spring terminal connection with IP20 finger-safe screw terminals. Mountable on DIN rail or with screws for panel installation. Designed for operation between -5°C and 60°C. Complies with UL, IEC, and EN safety standards.

Compact size supports installation in space-constrained environments. Better World sustainability design for disassembly and recycling.

This Schneider Electric LC1D123B7 contactor is ideal for electrical automation, motor starters, and various control gear setups in industrial, commercial, manufacturing, and HVAC environments. Explore EnvMart for more Schneider Electric Contactors and industrial control gear solutions.
