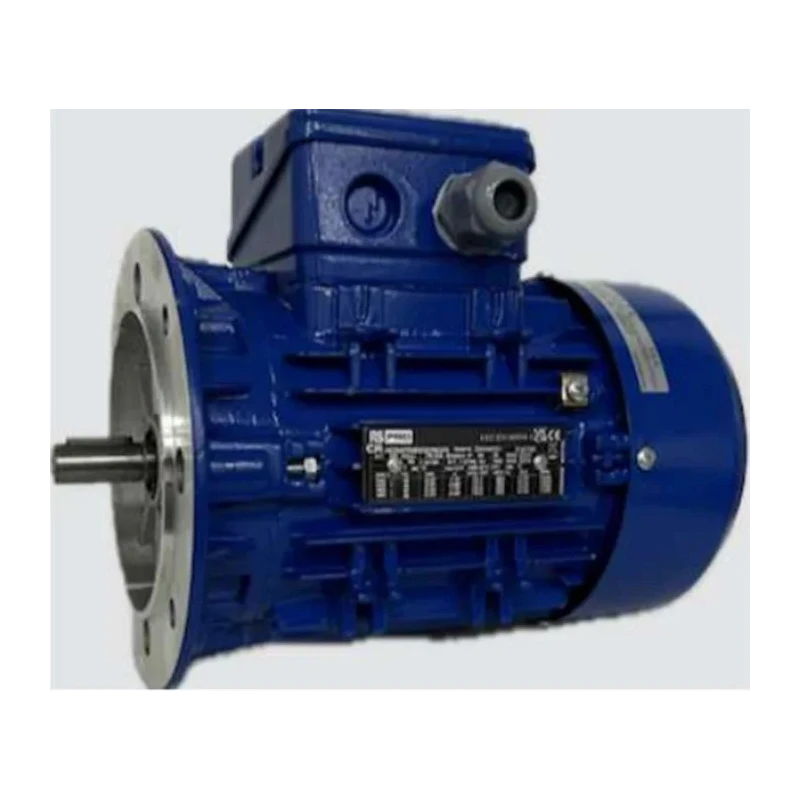

RS PRO 2.2 kW IE3 Squirrel Cage AC Motor, 3 Phase, 2-Pole, 400V, Flange Mounting 187-9870

RS PRO 187-9870 2.2 kW IE3 Squirrel Cage AC Motor is a high-quality three-phase induction motor designed for industrial use. Operated at 400V with a 2-pole configuration, this flange-mounted motor ensures robust power output with excellent efficiency class IE3, complying with RoHS standards.

Manufactured with an aluminium frame, it offers corrosion resistance while maintaining a lightweight structure. The motor includes a 24 mm shaft diameter and 50 mm shaft length designed to fit standard industrial mounting. Deep groove bearings from reputable manufacturers like SKF and FAG, combined with C3 shielding and oil seals at both ends, contribute to low maintenance and enhanced durability.

This AC motor delivers an output speed of 2895 rpm, maximum torque of 7.3 Nm, and a current rating of 5.2 A, allowing application versatility across pumps, blowers, gearboxes, machine tools, and conveyor belts. It is inverter rated and equipped with thermistors fitted as standard, ensuring protection against overheating.

The motor's robust construction features reinforced bearing housing and rustproof RAL7031 painting with 40-micron minimum thickness, suitable for demanding industrial environments. Additionally, the motor provides two earthing terminals and NDE shaft drilled and tapped for easy accessory mounting.

These motors follow IEC 60034 standards and are manufactured in Turkey, ensuring quality and compliance. Ideal for industrial, manufacturing, HVAC, and water treatment applications, these motors provide reliable, low-maintenance operation at competitive efficiency levels.

The motor operates at 400V supply voltage ensuring efficient power delivery. Features a flange mounting design with a shaft diameter of 24mm and shaft length of 50mm. Constructed with aluminium material for durability and lightweight performance.

Equipped with deep groove bearings and oil seals on both ends for low maintenance. Compliance with RoHS standards ensures environmental safety and quality. Output speed rated at 2895 rpm suitable for diverse machinery tasks.

Maximum output torque of 7.3 Nm and current rating of 5.2 A facilitate robust operation. Motor dimensions include 296 mm length, 241 mm width, and 241 mm depth. Protected by IP55 rating and features two earthing terminals for enhanced safety.
