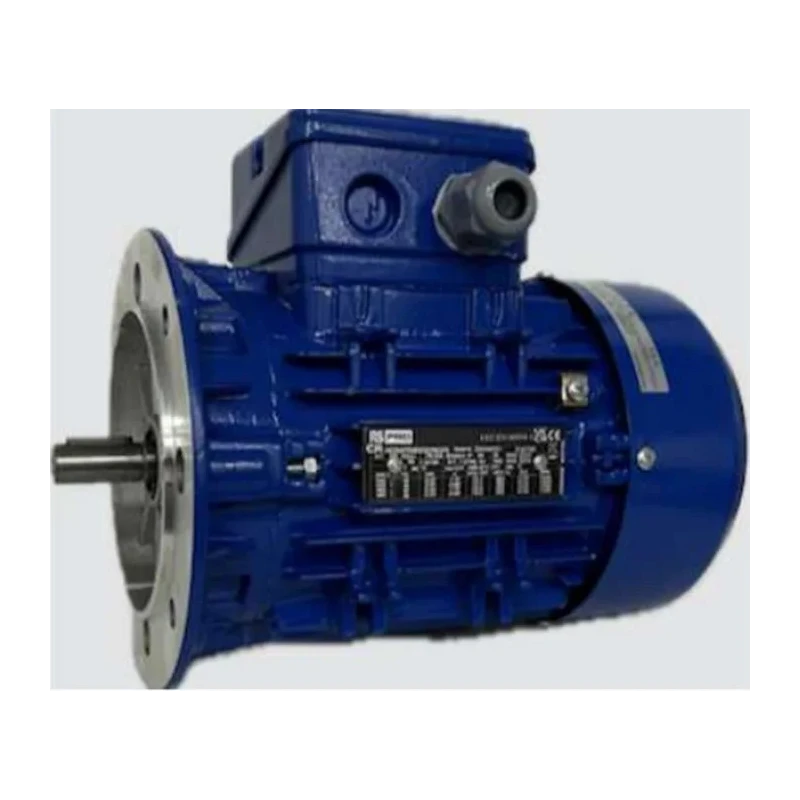

RS PRO AC Motor, 5.5 kW, IE3 Efficiency, 3 Phase, 2-Pole, 400V, Flange Mounting AAP132S2A

RS PRO AAP132S2A AC Motor is a high-quality 3 phase squirrel cage induction motor with a power rating of 5.5 kW and IE3 efficiency class, operating at 400 V. This 2-pole motor features a robust aluminium design that combines lightweight construction with excellent corrosion resistance, suitable for demanding industrial environments.

Manufactured in compliance with IEC 60034 standards, the motor ensures reliable performance and durability. It is equipped with deep groove bearings protected by C3 shielding and uses bearings from reputed manufacturers such as SKF, FAG, NSK, and NTN. The motor includes oil seals fitted at both ends and two earthing terminals to enhance operational safety.

The flange mounting design, along with a 38 mm diameter shaft that is 80 mm long, allows easy installation and compatibility with various industrial setups. It provides an output speed of 2945 rpm and delivers a maximum torque of 17.85 Nm. The motor's inverter rated windings support operation with variable frequency drives, making it versatile for many applications.

Additionally, the motor benefits from IP55 protection and a reinforced bearing housing for low maintenance and longer service life. These features make it well-suited for use in pumps, blowers, fans, gearboxes, machine tools, and conveyor belts found across industrial, manufacturing, and automation sectors.

RS PRO AAP132S2A AC Motor is manufactured in Turkey and complies with RoHS directives, ensuring environmentally responsible production. This product offers a balance of efficiency, durability, and ease of use for a wide range of industrial applications.

This motor features a lightweight aluminium body providing excellent corrosion resistance. Designed to IEC 60034 standards for high quality and durability. Equipped with deep groove bearings, C3 bearing shielding, and SKF, FAG, NSK, or NTN bearing make.

Oil seal fitted at both ends and two earthing terminals for enhanced safety. The motor delivers an output speed of 2945 rpm and a maximum torque of 17.85 Nm. Includes inverter rated windings suitable for variable frequency drives.

Flange mounting with shaft diameter of 38 mm and length of 80 mm. The motor has IP55 protection and a reinforced bearing housing ensuring low maintenance. Application areas include pumps, blowers, fans, gearboxes, machine tools, and conveyor belts.

Country of origin is Turkey, and the product is RoHS compliant.
