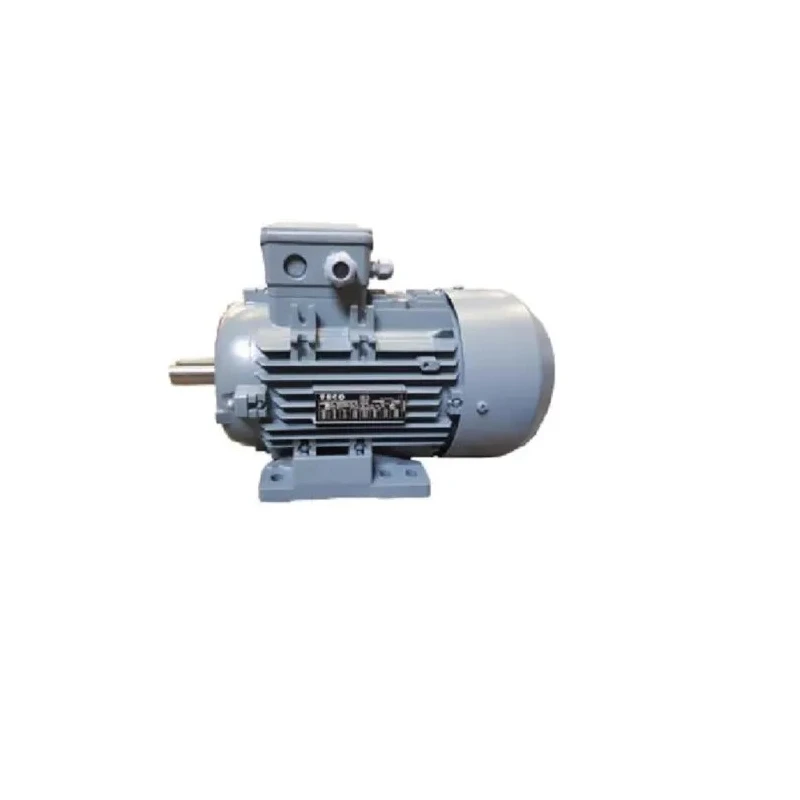

RS PRO 3 Phase Squirrel Cage Induction AC Motor 1.1 kW IE3 Efficiency Class 3 Phase 2-Pole 400V Foot Mounting AAP80M4B
Specifications
| Country of Origin | Turkey |
|---|---|
| Brand | RS PRO |
| Material | Aluminium |
| Length | 237.5mm |
| Model | AAP80M4B |
| Depth | 211mm |
| Width | 211mm |
| Mount Type | Foot |
| Current Rating | 2.52A |
| Series | AAP80M4B |
| Power Rating | 1.1kW |
| Sub Type | Squirrel Cage Motor |
| Output Speed | 2835rpm |
| Shaft Diameter | 19mm |
| Shaft Length | 40mm |
| Efficiency Class | IE3 |
| Number of Phases | 3 |
| Supply Voltage | 400V |
| Bearing Type | Deep Groove |
| Number of Poles | 2 |
| Standards/Approvals | RoHS |
| Maximum Output Torque | 3.7Nm |
Key Features
- High-efficiency IE3 classification ensures lower energy consumption and enhanced performance.
- Lightweight aluminium construction provides excellent corrosion resistance and durability.
- Foot mounting type with 2-pole design ensures stable installation and operational reliability.
- Outputs a speed of 2835 rpm suitable for various industrial machinery.
- Equipped with SKF, FAG, NSK, NTN deep groove bearings with C3 shielding for extended life.
- Oil seals fitted at both ends prevent contamination and reduce maintenance needs.
- RAL7031 rustproof painting with a minimum 40 micron thickness enhances surface protection.
- Conforms to IEC 60034 standards for quality and performance assurance.
Product Description
RS PRO AAP80M4B is a 3 Phase Squirrel Cage Induction AC Motor with a power rating of 1.1 kW, designed for industrial use requiring high efficiency and reliability. This motor features an IE3 efficiency class and operates at 400V supply voltage with a 2-pole configuration, capable of an output speed of 2835 rpm. Its aluminium construction provides a lightweight yet durable structure with excellent corrosion resistance.
The motor is foot-mounted, facilitating easy and secure installation in various industrial settings. It includes SKF, FAG, NSK, and NTN deep groove bearings with C3 shielding, enhancing bearing life and performance. Oil seals at both ends protect the motor internals from dust and moisture, minimizing maintenance requirements.
Painted with a rustproof RAL7031 coating of minimum 40 microns thickness, the motor withstands harsh operational environments. Manufactured to meet IEC 60034 standards, the motor guarantees quality and durability for a range of applications. It is equipped with thermistors and features two earthing terminals for safety.
This motor suits multiple industrial applications such as pumps, blowers, fans, gearboxes, conveyor belts, and machine tools, offering a low-maintenance, energy-efficient solution. Its inverter-rated windings support variable speed drives, adding to versatility.
High-efficiency IE3 classification provides energy savings and meets modern efficiency regulations. Lightweight aluminium housing with high corrosion resistance. Foot mounting ensures stability and easy integration into existing machinery.
Designed to IEC 60034 standards ensuring reliable industrial performance. Deep groove bearings with C3 shielding for long service life. Oil sealed ends prevent contamination and reduce wear. Equipped with thermistors for temperature monitoring to enhance safety.
Includes two earthing terminals for operational safety. Suitable for diverse industrial applications like pumps, fans, gearboxes, and conveyor belts. RS PRO motors represent reliable industrial equipment available on EnvMart. Explore more AC Motor solutions to find the right match for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The motor has a power rating of 1.1 kW, making it suitable for various industrial applications.
This model features an IE3 efficiency class, ensuring lower energy consumption and enhanced performance.
It outputs a speed of 2835 rpm, which is suitable for various industrial machinery.
The motor operates at a supply voltage of 400V, making it compatible with standard industrial power systems.
It is equipped with deep groove bearings from brands like SKF, FAG, NSK, and NTN, featuring C3 shielding for extended life.
The motor has dimensions of 237.5 mm in length, 211 mm in depth, and 211 mm in width.
This model features a foot mounting type, ensuring stable installation in various industrial settings.
The motor is constructed from lightweight aluminium, which provides excellent corrosion resistance and durability.
It includes thermistors for temperature monitoring and features two earthing terminals for operational safety.
The motor conforms to IEC 60034 standards, ensuring quality and performance assurance.
It is suitable for various industrial applications such as pumps, blowers, fans, gearboxes, conveyor belts, and machine tools.
The maximum output torque of this motor is 3.7 Nm, providing adequate power for various applications.
