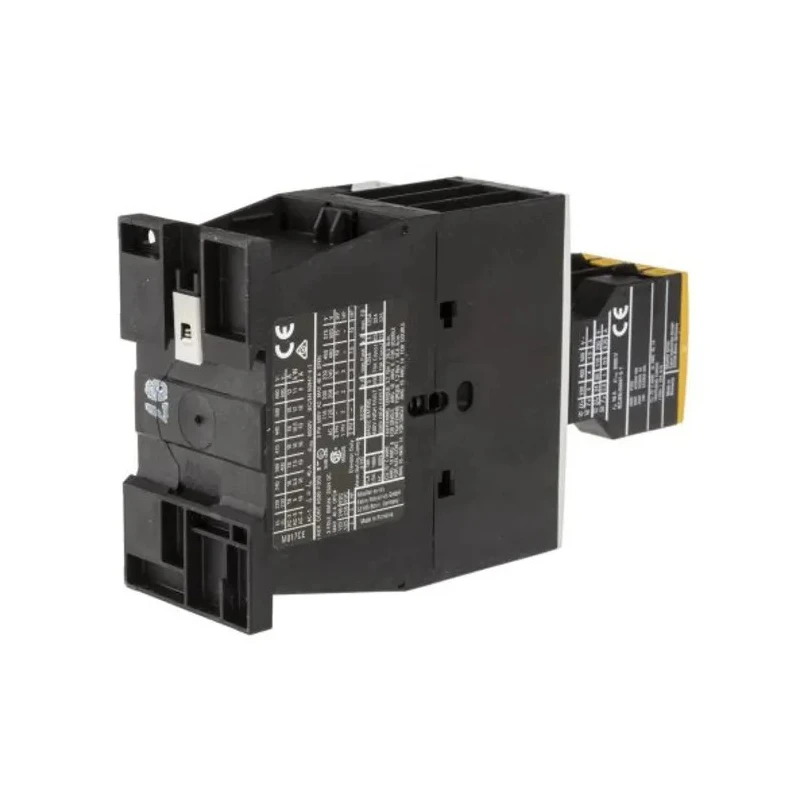

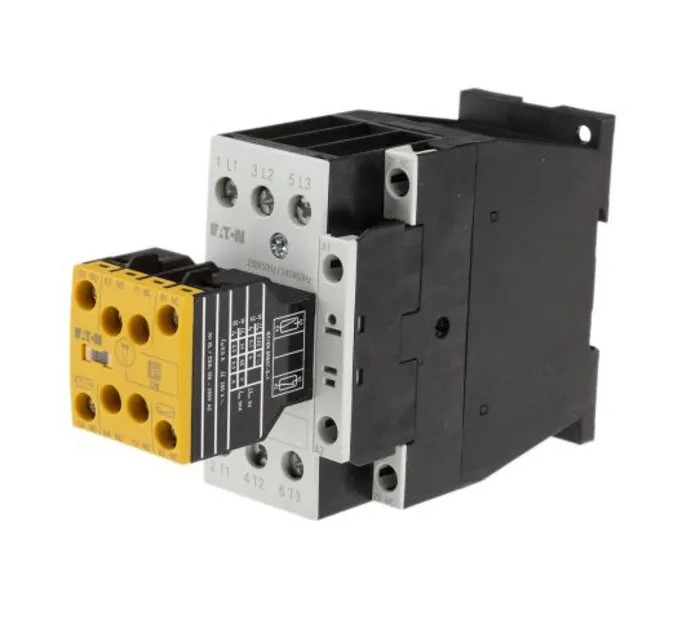

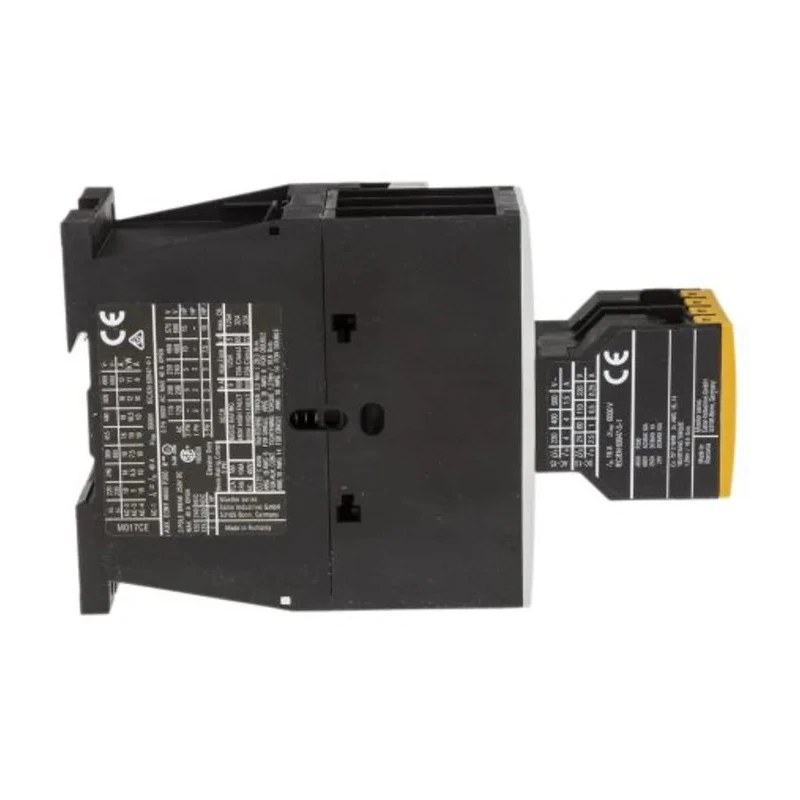

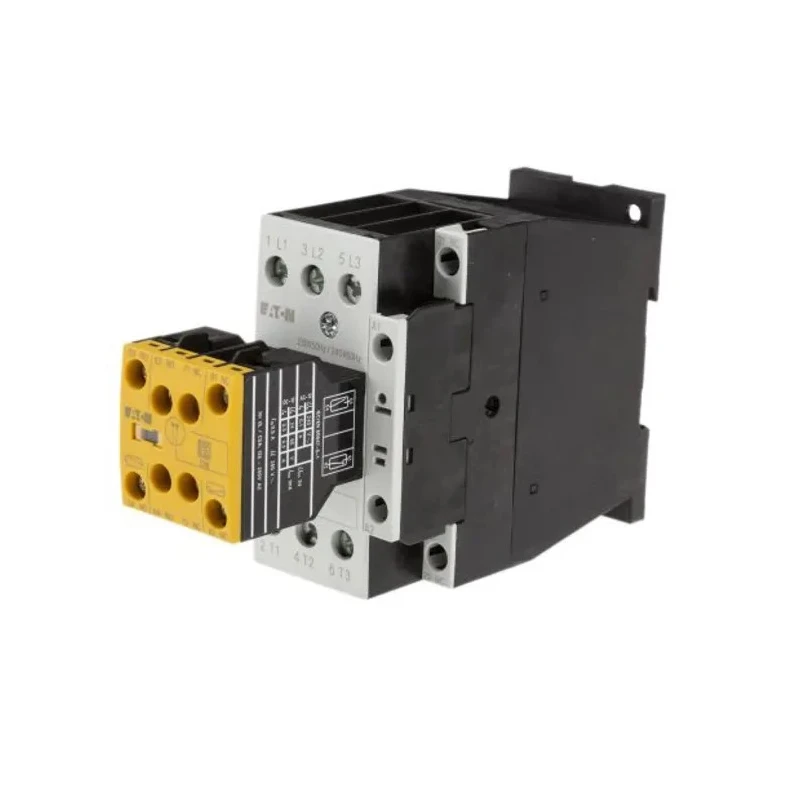

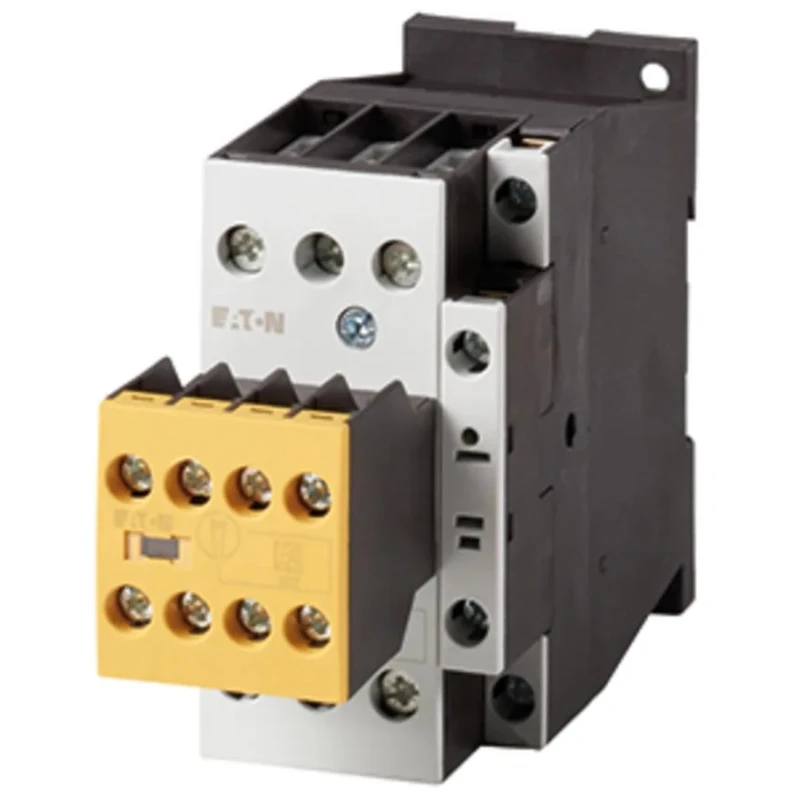

Eaton Safety DILMS Contactor 240V AC Coil, 3-Pole, 18A, 7.5 kW 230V AC, 3 NO Auxiliary 191757 DILMS17-R23(230V50HZ,240V60HZ)
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | Eaton |
| Function | Safety |
| Length | 56mm |
| Model | 191757 DILMS17-R23(230V50HZ,240V60HZ) |
| Depth | 85mm |
| Width | 138mm |
| Mount Type | Table |
| Series | DILMS |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | CSA, IEC, UL |
| Contact Voltage | 400V ac |
| Coil Voltage | 240V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 18A |
| Number of Auxiliary Contacts | 5 |
| Auxiliary Contact Configuration | 2 NO/3 NC |
| Operational Current Ie | 18A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Safety |
| Pole and Throw Configuration | 3P |
Key Features
- Equipped with a 240V AC coil ensuring efficient operation.
- Features a 3-pole configuration suitable for diverse applications.
- Rated contact current of 18 amperes to handle moderate loads.
- Includes 3 normally open (NO) auxiliary contacts with robust safety function.
- Supports operational control voltage of 230V AC with screw clamp terminals.
- Mount type designed for table installation with integrated safety features.
- Wide operating temperature range from -25°C to 60°C for reliable performance.
- Complies with CSA, IEC, and UL standards, ensuring industrial quality.
Product Description
Eaton 191757 DILMS17-R23(230V50HZ,240V60HZ) safety contactor is engineered for industrial automation and control applications requiring reliable and safe switching operations. It features a 240V AC coil designed to operate in various power environments and industrial settings. The device has a 3-pole configuration capable of handling contact currents up to 18A and a power rating of 7.5 kW at 230V AC, making it suitable for controlling motors and heavy electrical loads.
This contactor integrates a top-mounted, non-detachable auxiliary contact, enhancing safety with mirror and interlocked opposing contacts. Its yellow cover (RAL1004) allows quick visual identification, while the built-in inspection window above the switch-position indicator ensures real-time monitoring of operating status. These features help prevent manual activation and support emergency stop applications with controlled start, meeting category 4 safety requirements.
The product is designed for table mounting with screw clamp terminals, enabling secure and easy installation. Its control circuit voltage of 230V AC and auxiliary contact configuration of 2 NO and 3 NC provide versatility for machine control circuits. The contactor is suitable for harsh industrial environments, operating reliably within a temperature range of -25°C to 60°C.
Certified to CSA, IEC, and UL standards, the DILMS contactor series offers safe status monitoring and machine control solutions that comply with international safety norms. Manufactured in Romania, Eaton ensures quality and durability in this component, making it ideal for use in manufacturing plants, industrial automation systems, and safety equipment setups.
Equipped with a 240V AC coil voltage for efficient switching control. Three-pole, 18A contact current rating for medium power industrial loads. Safety-focused design featuring non-detachable auxiliary contacts. Yellow cover and inspection window for operational status monitoring.
Meets CSA, IEC, and UL safety and quality standards for industrial use. Wide operating temperature range ensures dependable performance. Screw clamp terminals for secure electrical connections. Supports emergency-stop applications with controlled startup mechanisms.
Compact dimensions: 138mm width, 85mm depth, 56mm length. Explore more Eaton automation and control gear products on EnvMart for optimized industrial performance.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this contactor is 7.5 kW at 230V AC.
It can handle a maximum contact current of 18A.
The coil voltage for this model is 240V AC.
The dimensions are 138mm in width, 85mm in depth, and 56mm in length.
It operates reliably within a temperature range of -25°C to 60°C.
This contactor features a 3-pole configuration.
It includes 2 normally open (NO) and 3 normally closed (NC) auxiliary contacts.
It uses screw clamp terminals for secure electrical connections.
It complies with CSA, IEC, and UL standards.
This contactor is designed for safety applications in industrial automation and control systems.
The Eaton DILMS17-R23 contactor is manufactured in Romania.
It is designed for table mounting.
