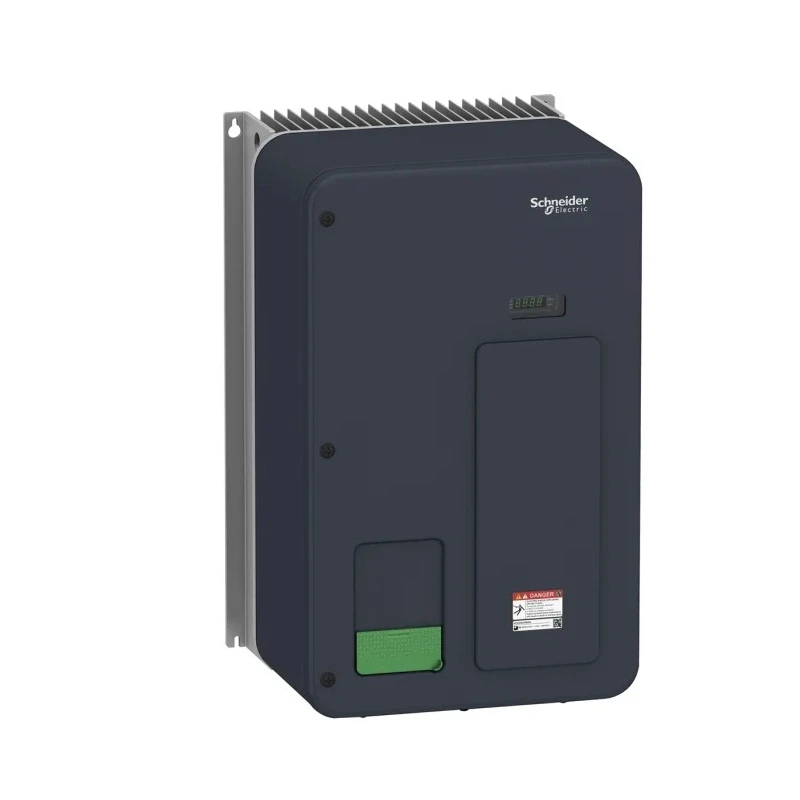

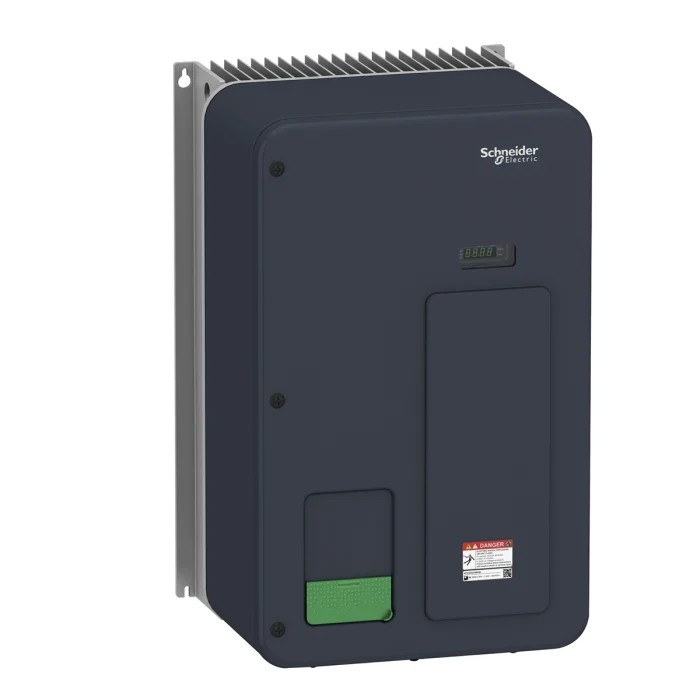

Schneider Electric Variable Speed Drive 5.5 kW 3 Phase Altivar Series 500V AC 14.3 A ATV320U55N4W
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Model | ATV320U55N4W |
| IP Rating | IP66 |
| Drive Type | Variable Speed |
| Mount Type | Wall |
| Overall Length | 320mm |
| Series | Altivar |
| Overall Width | 300mm |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | +60°C |
| Output Frequency | 0.1, 599Hz |
| Minimum Operating Temperature | -10°C |
| Interfaces | EtherNet/IP - Modbus TCP, Profinet EtherCAT, Profibus, CANopen and DeviceNet |
| Number of Phases | 3 |
| Maximum Output Current | 14.3A |
| Maximum Supply Voltage | 500V ac |
| Overall Depth | 521mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Synchronous, AC Motor, Asynchronous Motor |
Key Features
- Equipped with embedded EMC C2 filter and IP66 protection for harsh environments.
- No fan required; supports washable drive for dust and chemical resistance.
- Supports Modbus and CANopen protocols via front RJ45 connection.
- Operates safely within -10°C to +60°C temperature range with 14.3A maximum output current.
- Certified to international standards including CSA, UL, IEC, and NOM.
- Ideal for conveyors, packaging, woodworking, metal processing, and food & beverage industries.
- Provides advanced connectivity with EtherNet/IP, Profinet, EtherCAT, Profibus, CANopen, and DeviceNet interfaces.
- Includes five configurable safety functions via SoMove software.
Product Description
Schneider Electric ATV320U55N4W Variable Speed Drive is a 5.5 kW, 3 Phase Altivar series drive engineered for precise motor control in industrial applications. It supports synchronous and asynchronous AC motors and operates efficiently at voltages from 380V to 500V AC with a maximum output current of 14.3 A.
This variable speed drive features an IP66 rating, enabling operation in harsh environments requiring protection against dust and chemical contaminants. Its fanless design coupled with an embedded EMC C2 filter ensures reliable performance with minimal maintenance. Connectivity is enhanced with Modbus and CANopen protocols accessible through an RJ45 connector on the front panel.
The ATV320U55N4W supports operating temperatures from -10°C up to +60°C and conforms to rigorous certifications including CSA, UL, EN/IEC standards, and NOM certification, ensuring industrial safety and compliance.
Typical applications include conveyors, carton packers, gantry cranes, woodworking machinery, metal processing, fans, and the food & beverage industry. It integrates seamlessly into automation systems with interfaces such as EtherNet/IP, Profinet, EtherCAT, Profibus, CANopen, and DeviceNet, facilitating advanced connectivity and control.
This drive includes five safety functions configurable via SoMove software to meet machinery safety requirements, supporting both standalone and multi-drive installations. Altivar Machine software compatibility allows development, configuration, and commissioning of the entire machine logic within a single environment, ideal for industrial automation projects.
Rated 5.5 kW power for high efficiency motor control. 3 Phase support for synchronous and asynchronous motors. IP66 washable fanless design for harsh industrial conditions. Embedded EMC C2 filter minimizes electromagnetic disturbances.
Multiple communication protocols for flexible integration. Certified to international standards ensuring quality and safety. Includes five safety functions configurable through software. Compact size suitable for wall mounting installations.
Operates reliably between -10°C and +60°C. Supports material handling, packaging, textiles, and mechanical actuator applications.
The Schneider Electric ATV320U55N4W is a robust solution tailored for industrial automation, offering versatility, safety, and connectivity. Browse more products in the Automation & Control Gear category at EnvMart for your precise industrial needs.
Explore more products in our Inverter Drives category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ATV320U55N4W has a power rating of 5.5 kW.
This model has a maximum output current of 14.3 A.
It operates reliably within a temperature range of -10°C to +60°C.
It is compatible with synchronous and asynchronous AC motors.
The overall dimensions are 320mm in length, 300mm in width, and 521mm in depth.
This unit has an IP66 rating, making it suitable for harsh environments by protecting against dust and chemical contaminants.
It supports multiple protocols including EtherNet/IP, Modbus TCP, Profinet, EtherCAT, Profibus, CANopen, and DeviceNet.
This variable speed drive is designed for wall mounting.
No, it features a fanless design, which reduces maintenance needs.
It is certified to international standards including CSA, UL, IEC, and NOM.
This drive includes five configurable safety functions that can be managed via SoMove software.
The output frequency ranges from 0.1 to 599 Hz.
