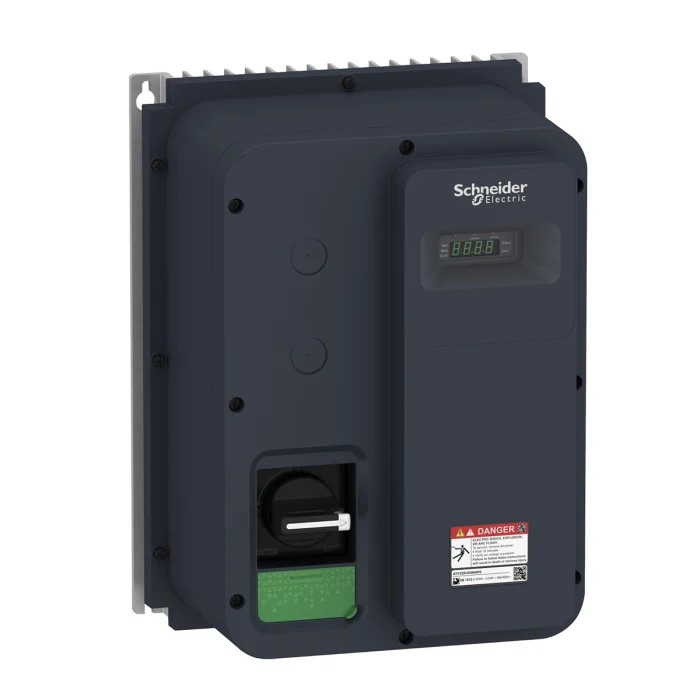

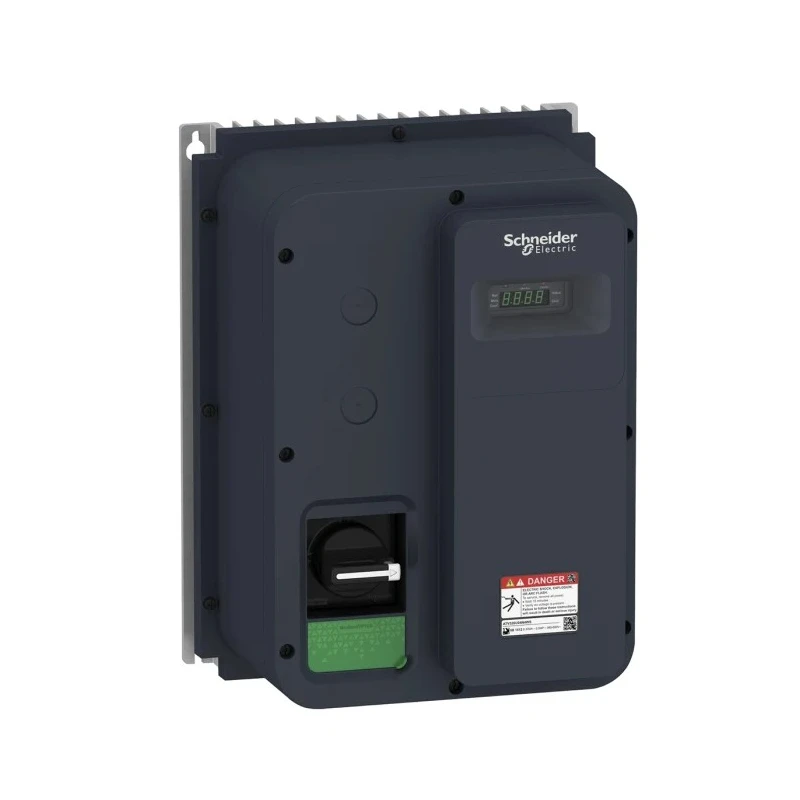

Schneider Electric Variable Speed Drive 370 W 3 Phase Altivar Series IP65 ATV320U04N4WS

Schneider Electric ATV320U04N4WS Variable Speed Drive is a high-performance Altivar Series device offering 370 W power and 3-phase power supply compatibility from 380V to 500V AC. Designed for controlling synchronous and asynchronous AC motors, it is engineered to meet the demanding requirements of industrial automation.

This drive features an IP65-rated enclosure that provides washable protection, making it suitable for environments with dust and chemical exposure. It operates with a maximum output current of 1.5 A and supports output frequencies ranging from 0.1 to 599 Hz. The device is wall mountable, with compact dimensions of 250mm length, 200mm width, and 340mm depth, fitting easily into various machine layouts.

Integrated EMC C2 filtering ensures electromagnetic compatibility, while embedded communication protocols including Modbus and CANopen via the front RJ45 connector promote advanced connectivity and integration with automation architectures such as EtherNet/IP, Profinet, EtherCAT, Profibus, and DeviceNet. Safety functions included in the drive are configurable with SoMove software, enhancing machine compliance with international safety standards.

The ATV320U04N4WS operates reliably across a temperature range of -10°C to +60°C, making it robust for industrial and manufacturing environments. It is compliant with multiple global certifications like IEC, UL, CSA, NOM, and REACH, assuring quality and interoperability.

It is widely used in material handling, packaging, woodworking, metal processing, conveyor systems, gantry cranes, and food & beverage processing applications. The Altivar Machine series provides easy integration with EcoStruxure Machine software, enabling streamlined machine development, configuration, and commissioning.

Power rating of 370 W suitable for precise motor control. Supports 3-phase power supply ranging 380V to 500V AC. Maximum output current of 1.5 A for efficient motor operation. Built-in EMC C2 filter and washable IP65-rated enclosure for harsh environment durability.

Compatible with Modbus and CANopen protocols via RJ45 connector. Integrated safety functions configurable through SoMove software. Compact dimensions of 250mm length, 200mm width, and 340mm depth for wall mounting. Operating temperature range from -10°C to +60°C, suitable for industrial conditions.

Conforms to multiple international standards including IEC, UL, CSA, and REACH. Ideal for applications in conveyors, packaging, gantry cranes, fans, and Food & Beverage industry. Explore more Schneider Electric industrial automation products and variable speed drives on EnvMart to optimize your manufacturing and control systems.
