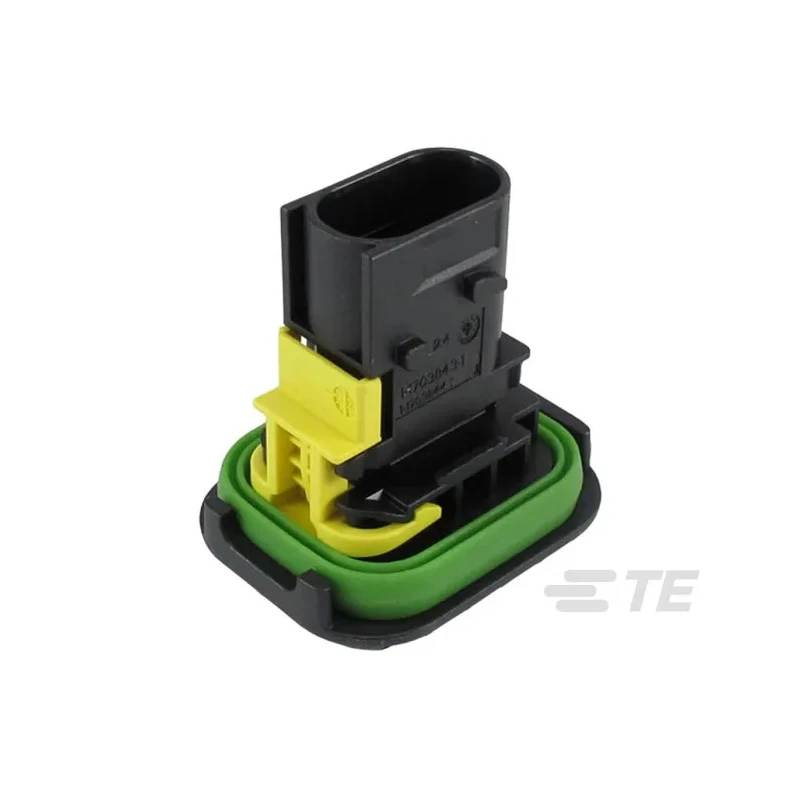

TE Connectivity HDSCS Automotive Connector Female Black Flange 3 Way Crimp Termination 1-1703843-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Current | 20A |
| Height | 19mm |
| Depth | 47.1mm |
| IP Rating | IP67, IP6K9K |
| Width | 27.6mm |
| Gender | Female |
| Mount Type | Flange |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Series | HDSCS |
| Termination Type | Crimp |
| Maximum Operating Temperature | 140°C |
| Sub Type | Tab Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Contact Plating | Tin |
| Number of Contacts | 3 |
Key Features
- This connector features three contacts designed for secure electrical connections.
- The housing is made from fibreglass reinforced polybutylene terephthalate for durability.
- Contact plating is tin for reliable conductivity and corrosion resistance.
- Rated for current up to 20 Amperes with IP67 and IP6K9K ingress protection.
- Operating temperature ranges from -40°C up to 140°C, suitable for harsh automotive environments.
- Mount type is flange with a single row of contacts for compact installation.
- Its black color and heavy-duty design ensure visibility and ruggedness under automotive conditions.
- Connector series HDSCS includes a slide lock mechanism for secure mating.
Product Description
TE Connectivity 1-1703843-1 HDSCS automotive connector female is a high-quality, heavy-duty electrical automotive connector designed for reliable power and signal transmission. This connector has a black flange mount housing that is fibreglass reinforced, providing excellent mechanical strength and withstands demanding automotive environments. It features a 3-way contact configuration with crimp termination suitable for cable-to-device or cable-to-cable connections.
The contact plating utilizes tin to ensure robust electrical conductivity and minimize corrosion risks. It can carry currents up to 20 Amperes, meeting the high power demands common in automotive electrical systems.
The connector supports an ingress protection rating of IP67 and IP6K9K, guaranteeing resistance to dust and water jets, crucial for automotive applications subjected to harsh weather and cleaning procedures. The operational temperature range from -40°C to 140°C further confirms its suitability for extreme temperature environments often encountered in vehicles.
This single-row flange mount connector offers easy installation with a slide lock mechanism ensuring firm and vibration-proof mating. Its series HDSCS design supports AMP MCP contact types including 6.3/4.8K, 2.8, and 1.5K sizes, providing compatibility versatility.
Ideal for industrial automotive electrical harnesses, manufacturing lines, and maintenance operations where durability and reliability are critical. This connector features three contacts designed for secure electrical connections.
The housing is made from fibreglass reinforced polybutylene terephthalate for durability. Contact plating is tin for reliable conductivity and corrosion resistance. Rated for current up to 20 Amperes with IP67 and IP6K9K ingress protection.
Operating temperature ranges from -40°C up to 140°C, suitable for harsh automotive environments. Mount type is flange with a single row of contacts for compact installation. Its black color and heavy-duty design ensure visibility and ruggedness under automotive conditions.
Connector series HDSCS includes a slide lock mechanism for secure mating. Discover more Automotive Connector products and accessories from EnvMart for your professional electronic and automotive projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for a maximum current of 20 Amperes, making it suitable for high power demands in automotive applications.
The connector has a height of 19mm, a width of 27.6mm, and a depth of 47.1mm, allowing for compact installation in automotive environments.
It operates effectively within a temperature range of -40°C to 140°C, suitable for extreme conditions often found in vehicles.
This model features crimp termination, which is suitable for secure cable-to-device or cable-to-cable connections.
It has an ingress protection rating of IP67 and IP6K9K, ensuring resistance to dust and water jets, which is essential for automotive applications.
The housing is constructed from fibreglass reinforced polybutylene terephthalate, providing mechanical strength and durability in demanding environments.
This automotive connector features three contacts, designed for secure electrical connections.
It utilizes a flange mount type, which allows for easy installation in compact spaces.
Yes, it includes a slide lock mechanism that ensures secure mating and helps prevent disconnection due to vibration.
The connector is black in color, which enhances visibility and ruggedness under automotive conditions.
The country of origin for this connector is India.
This connector is part of the HDSCS series, which includes various contact types for compatibility in automotive applications.
