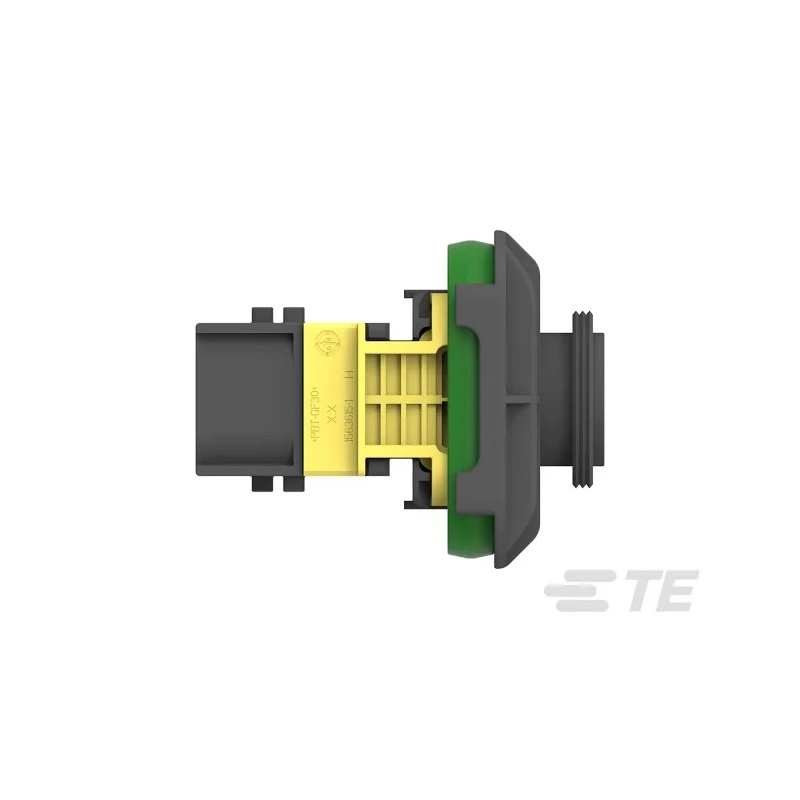

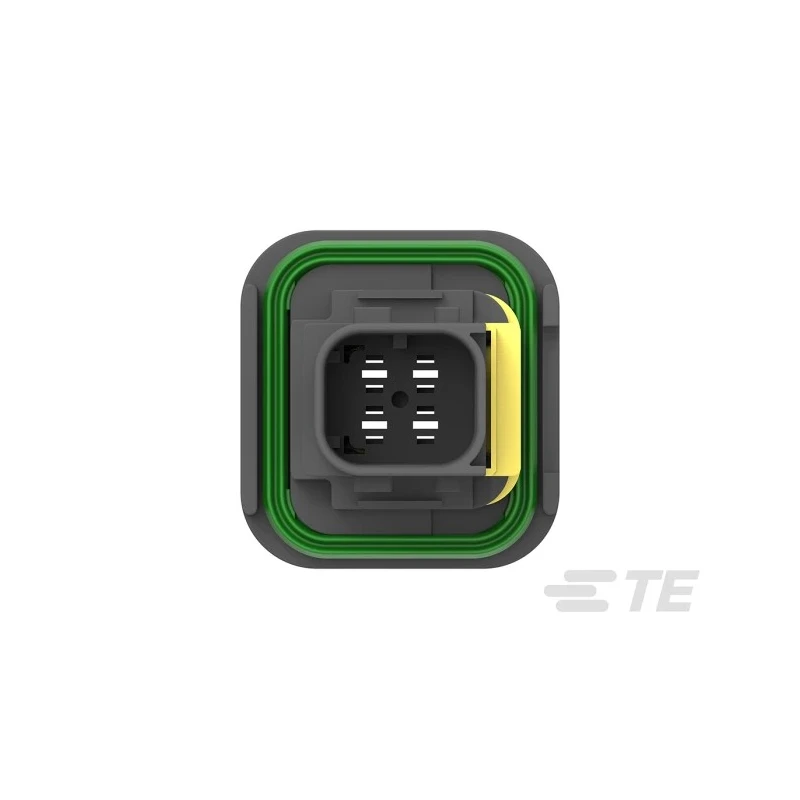

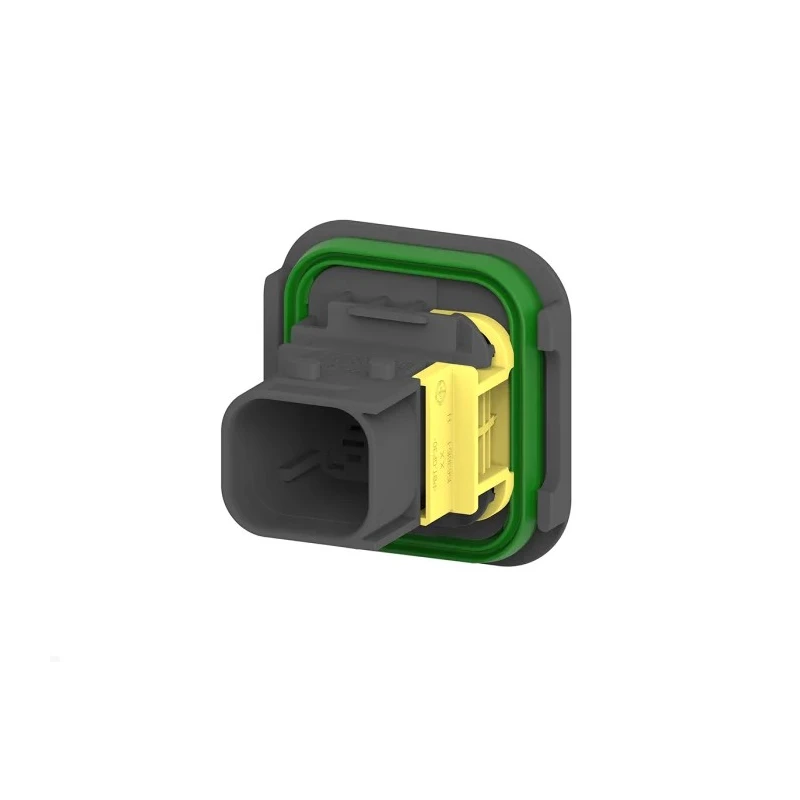

TE Connectivity HDSCS Automotive Connector Female Black Flange 4 Way Crimp Termination 1-1703808-1

TE Connectivity 1-1703808-1 is a high-performance automotive connector designed for use in demanding electrical systems. This female-type connector features a 4-way configuration with a flange mount, providing secure and stable attachment points in automotive assemblies. Manufactured with a fibreglass reinforced polybutylene terephthalate housing, it offers enhanced mechanical strength and resistance to harsh operating conditions.

The connector's contacts are made from copper iron alloy and plated with tin, ensuring excellent electrical conductivity and protection against corrosion. Rated to carry currents up to 40A, it is suitable for heavy-duty electrical loads often encountered in automotive systems.

With an IP6K9K and IP67 ingress protection rating, this connector is sealed to prevent moisture, dust, and high-pressure water ingress, making it reliable for outdoor and engine compartment environments. It operates effectively within a temperature range from -40°C to 140°C, accommodating extreme thermal conditions typical to automotive applications.

Its compact size, measuring 27.6mm in width, 47.1mm in depth, and 27mm in height, allows for easy integration in space-constrained locations. The two rows of contacts facilitate organized wiring and connection layout. This automotive connector accepts standard AMP MCP contact sizes and supports crimp termination, simplifying installation and maintenance.

Offers 4 contact points with flange mount for secure installation. Supports crimp termination for robust connection. Rated for 40A current capacity to handle demanding electrical loads. Constructed with fibreglass reinforced polybutylene terephthalate housing for durability.

Features copper iron alloy contacts plated with tin for corrosion resistance. Black color housing ensures visual identification and uniformity. Provides IP6K9K and IP67 ratings for excellent environmental protection. Operates reliably between -40°C and 140°C temperature range.

Compact dimensions with 27.6mm width, 47.1mm depth, and 27mm height. Designed with 2 rows of contacts for efficient wiring layout.

This automotive connector is ideal for use in vehicles and automotive manufacturing, providing secure and reliable electrical connections in automotive electrical systems, power applications, control modules, and heavy-duty wiring harnesses. Its robust design supports industrial and commercial automotive electrical requirements.
