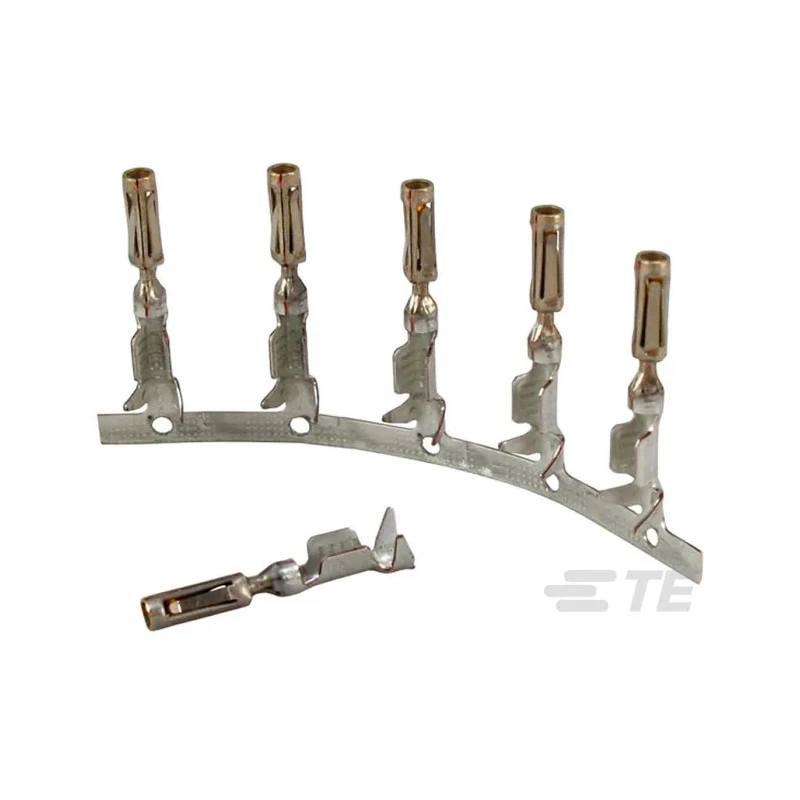

TE Connectivity Ampseal Automotive Connector Female Cable Crimp Termination 17A Current 770520-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 17A |
| Model | 770520-3 |
| Gender | Female |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Series | Ampseal |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Receptacle Strip Form |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Gold |
Key Features
- Constructed with copper alloy contacts for excellent conductivity.
- Gold-plated contact surfaces enhance corrosion resistance and conductivity.
- Termination type is crimp for secure and reliable cable connection.
- Suitable for cable mount applications without a cord included.
- Operates reliably within temperature range of -40°C to 125°C.
- Female gender connector with receptacle strip form sub type.
- Part of the Ampseal series known for automotive quality connectors.
- Designed to accommodate 16-20 AWG wire sizes for flexible installation.
Product Description
TE Connectivity 770520-3 Ampseal Automotive Connector is a female cable crimp termination designed for demanding automotive electrical applications. This connector accepts wire sizes from 16 to 20 AWG (1.5 to 0.50 mm²) and supports a current rating of 17 amps, ensuring reliable power transmission in vehicle wiring systems.
The contacts are precision 1.3 mm stamped and formed sockets made from copper alloy, which are gold plated to provide excellent resistance against corrosion while maintaining optimal electrical conductivity. The crimp termination type offers a secure and durable wire connection suitable for various automotive harness assemblies.
Designed specifically for cable mount use, this connector belongs to the Ampseal series renowned for high performance and durability in tough environments. It operates efficiently within a wide temperature range from -40°C to 125°C, making it suitable for under-the-hood and other automotive applications exposed to temperature extremes.
The female gender and receptacle strip form ensure compatibility with mating male connectors in automotive electrical systems. As no cord is included, this product is intended for integration into existing cable assemblies or custom wiring harness fabrication.
Constructed with copper alloy material and gold plating for enhanced reliability. Current rating of 17 amps supports moderate to high power automotive circuits. Operating temperature range from -40°C to 125°C handles automotive thermal conditions.
Termination type: crimp ensures firm wire retention and electrical contact. Female connector with receptacle strip form fits standard automotive wiring layouts. Compatible with 16-20 AWG wire sizes, offering flexible wiring options.
Part of the established Ampseal series known for automotive connector quality. Designed for cable mounting without cord to suit custom harness needs.
This connector is ideal for automotive manufacturers, repair shops, and electrical engineers requiring dependable and high-quality connectors for vehicle electrical systems. Typical uses include engine harnesses, lighting circuits, and other automotive electrical assemblies needing robust connections.
Explore the extensive range of TE Connectivity Automotive Connectors and related components on EnvMart for reliable electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector has a current rating of 17 amps, suitable for moderate to high power automotive circuits.
It is designed to accommodate wire sizes from 16 to 20 AWG (1.5 to 0.50 mm²), allowing for flexible installation options.
The operating temperature range is from -40°C to 125°C, making it suitable for various automotive applications exposed to temperature extremes.
This model features a crimp termination type, ensuring a secure and reliable cable connection.
The contacts are made from copper alloy and are gold plated, enhancing corrosion resistance and conductivity.
It is a female connector with a receptacle strip form sub type, designed for compatibility with mating male connectors.
Yes, it is specifically designed for cable mount use, intended for integration into existing cable assemblies or custom wiring harnesses.
This connector is part of the Ampseal series, known for high performance and durability in automotive applications.
The specific dimensions and weight of this connector are not provided in the available data.
Typical uses include engine harnesses, lighting circuits, and other automotive electrical assemblies requiring robust connections.
The country of origin for this connector is India.
No, this product does not include a cord and is intended for integration into existing cable assemblies or custom harness fabrication.
