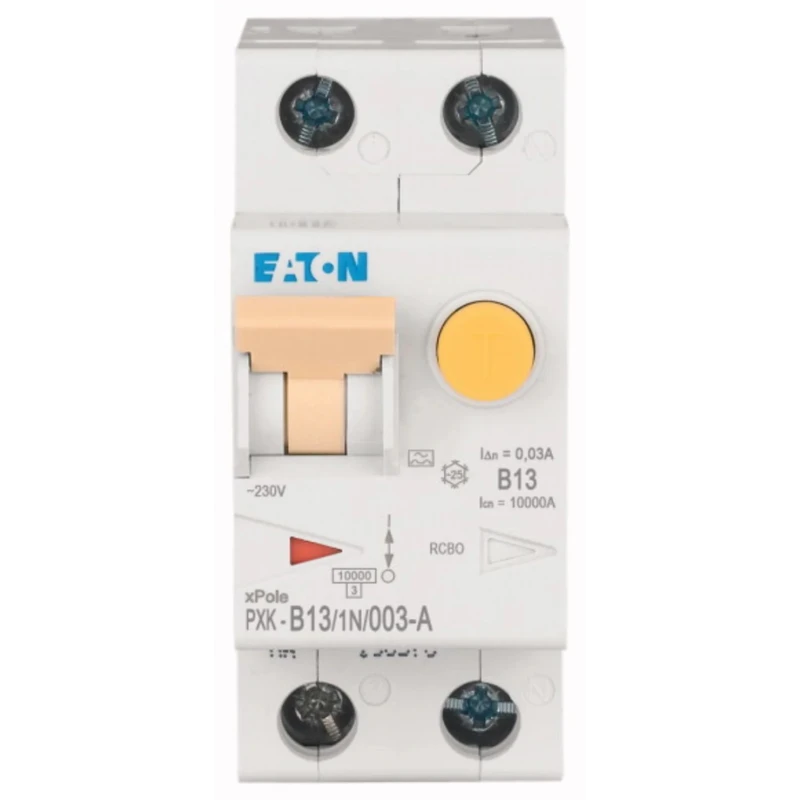

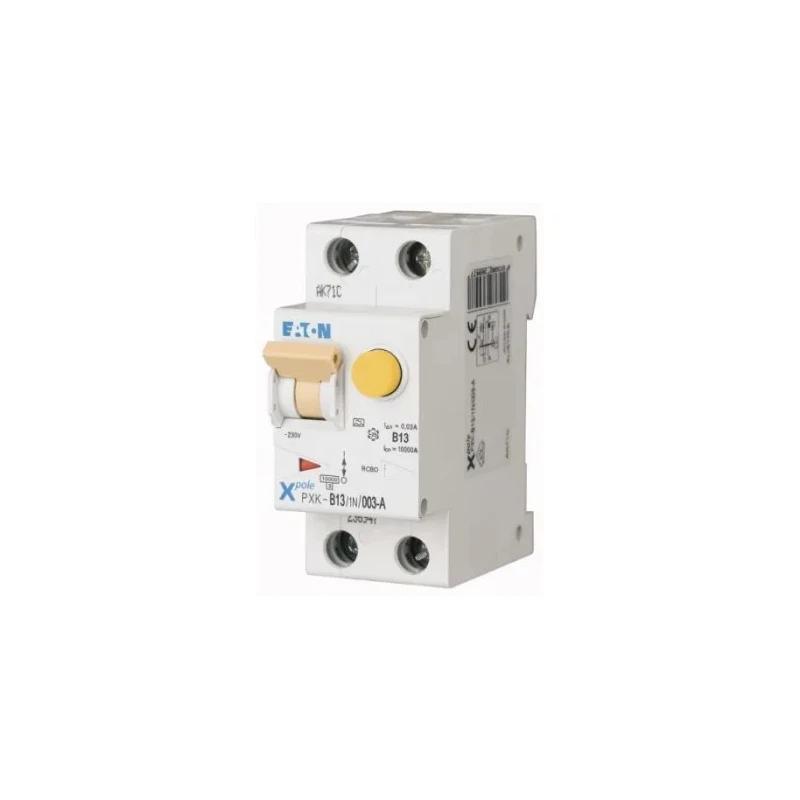

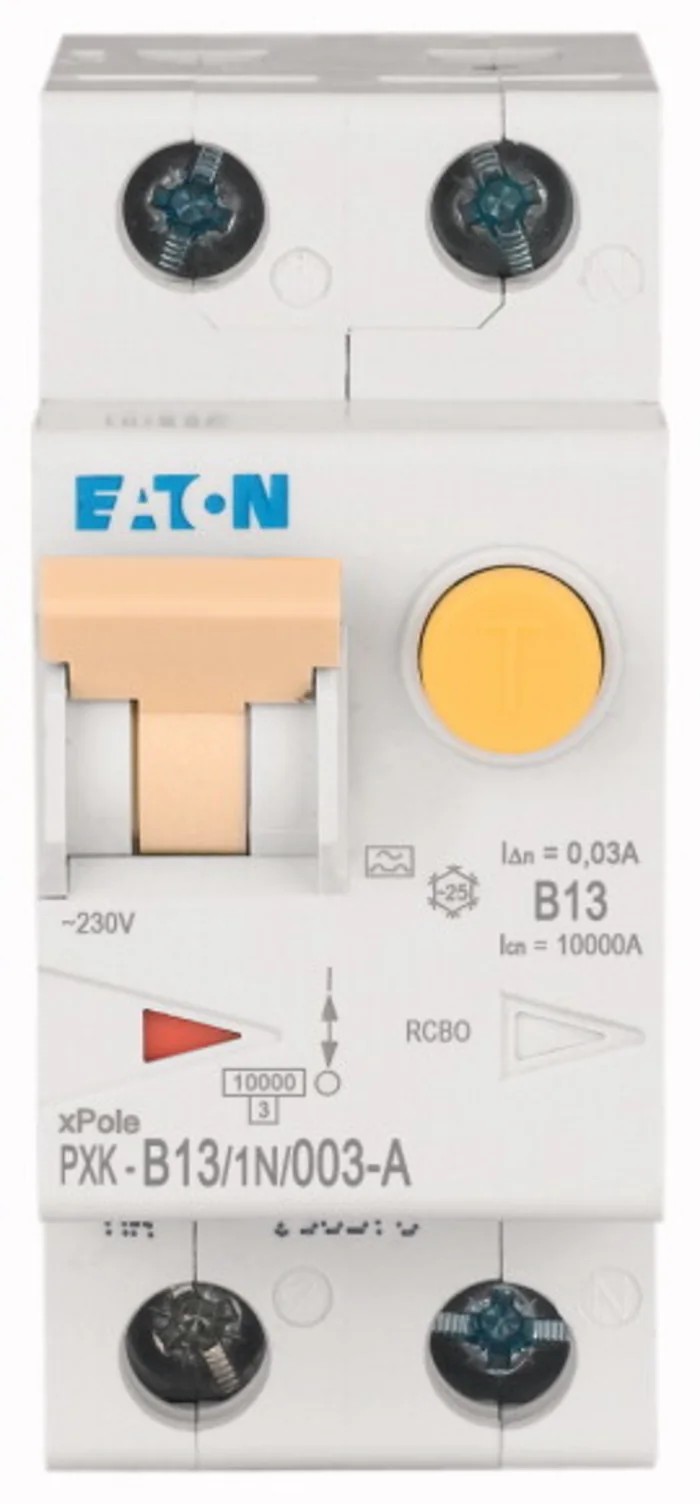

Eaton Residual Current Circuit Breaker with Overload Protection 13A Current Rating 1-Pole 30mA Trip 236947 PXK-B13/1N/003-A

Eaton 236947 PXK-B13/1N/003-A Residual Current Circuit Breaker with Overload Protection is a high-performance device designed to protect electrical circuits from faults and overloads in both commercial and residential settings. This 1-pole RCBO features a 13A current rating and a trip sensitivity of 30 mA, ensuring reliable disconnection in case of earth leakage or residual currents.

Combining the functions of a residual current device and miniature circuit breaker, this device offers both leakage current detection and overcurrent protection. Its Type B tripping characteristics are ideal for installations carrying high-frequency AC currents, such as ventilation systems, charging stations, lifts, and escalators. The non-delayed tripping mechanism allows for rapid reaction to electrical faults, enhancing safety.

The device operates with a rated AC voltage of 240V AC and withstands breaking capacities up to 10 kA, ensuring durability against short-circuit faults. Its high-rated insulation voltage of 440V permits usage across diverse applications and environments.

Installation is straightforward, requiring compatible line and neutral wires connected to appropriate terminals within a consumer unit. The device also supports earth wire connection to the busbar for effective earth leakage protection of Type A.

Compactly sized with a depth of 69.5 mm, it fits easily within standard consumer units. Compliance with IEC/EN 61009 standards guarantees quality, safety, and performance. Designed for commercial and residential electrical installations.

Combines residual current device and miniature circuit breaker functionality. Type B trip characteristics suitable for high-frequency AC currents. Features a non-delayed tripping mechanism for swift disconnect. Rated AC voltage of 240V AC with 10kA breaking capacity.

High insulation voltage of 440V for varied environments. Easy ON/OFF switch for simple operation and reset. Compact design with 69.5mm depth for consumer unit compatibility. Manufactured under IEC/EN 61009 standards for safety and performance.

Provides protection against earth leakage with Type A earth leakage protection.

This Eaton RCBO is suited for protecting ventilation machinery, lifts, escalators, and charging stations by ensuring swift electrical fault detection and disconnection. Its reliable performance in various settings makes it indispensable for maintaining electrical safety in commercial and residential installations.
