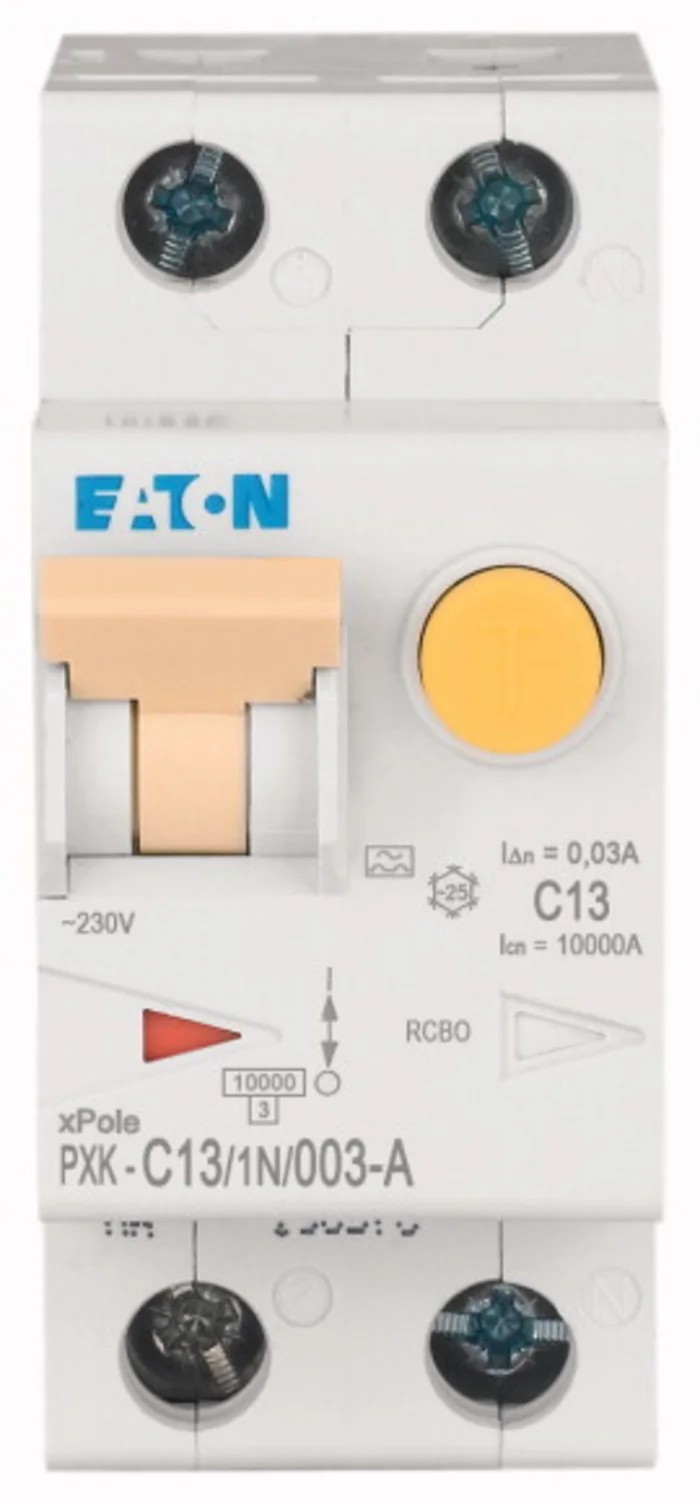

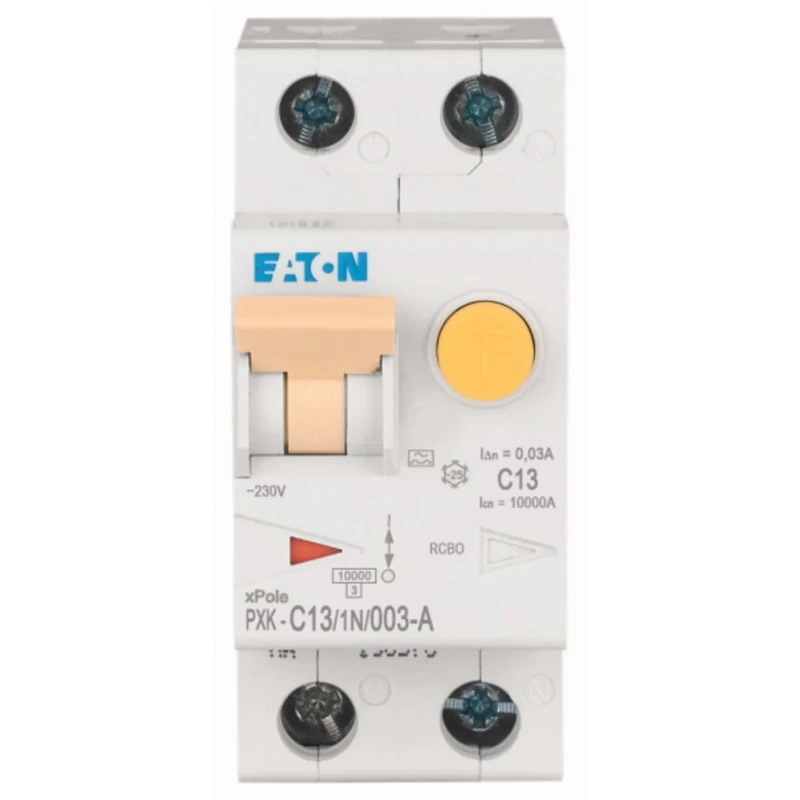

Eaton Residual Current Circuit Breaker with Overload Protection, 13A Current Rating, 1-Pole, 30mA 236963 PXK-C13/1N/003-A

The Eaton 236963 PXK-C13/1N/003-A is a high-quality residual current circuit breaker (RCBO) designed for simultaneous protection against earth fault currents, overloads, and short circuits. Featuring a 13A current rating and a 1-pole configuration, this device is ideal for both residential and commercial electrical systems requiring reliable and compact overcurrent protection.

This RCBO combines the functions of a residual current breaker and a miniature circuit breaker, ensuring fast disconnection in the event of faults, thereby preventing electric shocks, equipment damage, and fire hazards. The 30mA trip sensitivity enhances safety by providing high responsiveness to leakage currents.

Equipped with a Type C tripping characteristic, the device can handle moderate inrush currents typically encountered in lighting and office IT loads without nuisance tripping. The 10kA breaking capacity assures secure interruption under fault conditions, helping maintain system integrity.

With compact dimensions (69.5mm depth and 2mm width), the PXK-C13/1N/003-A fits efficiently into distribution panels where space is critical. It complies with IEC/EN 61009 standards, certifying adherence to international safety and quality norms. Its earth leakage protection type A provides enhanced detection capabilities for AC and pulsating DC residual currents.

This circuit breaker is suitable for installation in a wide range of industrial, residential, commercial, and HVAC applications where safety and reliability are paramount. The IP20 ingress protection rating ensures safe operation by preventing contact with live parts and entry of solid objects larger than 12mm.

Combines residual and miniature circuit breaker functions for comprehensive protection. Provides 13A current rating with Type C tripping for moderate surge tolerance. 30mA trip sensitivity to reduce risk of electric shock.

10kA breaking capacity to prevent damage from fault escalation. Compact footprint ideal for panel installations. Complies with IEC/EN 61009 safety standards. Earth leakage protection type A for AC and pulsating DC faults.

Ensure electrical safety and system reliability by integrating the Eaton PXK-C13/1N/003-A RCBO into your electrical distribution setup. Explore more products like this in the Residual Current Circuit Breaker category on EnvMart.
