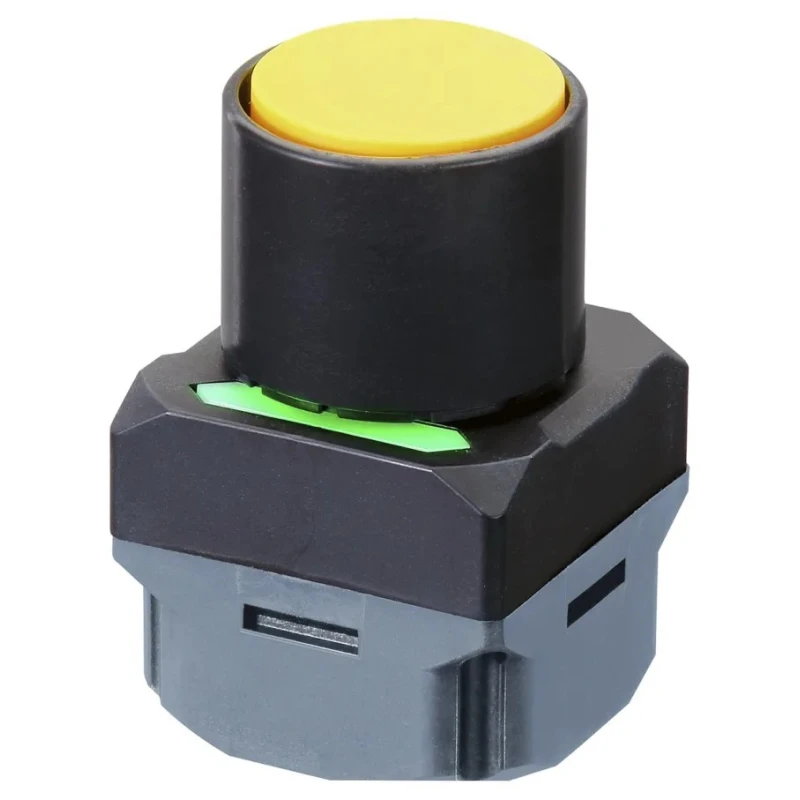

Omron Illuminated Push Button Complete Unit Momentary Switch Green Red Yellow LED IP65 24 V dc A2W-TB-WC1 EU2YB

Omron A2W-TB-WC1 EU2YB Illuminated Push Button Complete Unit is a high reliability momentary switch with green, red, and yellow LED illumination operating at 24 V dc. This unit features a yellow actuator color and wireless terminal type, combining ease of use with robust wireless communication. IP65 rated, it is dust-tight and protected against water jets, making it suitable for industrial and automation applications.

The push button is designed to operate in harsh environments with an operating temperature range from -10°C to 55°C and compact dimensions of 65mm height by 42mm width. The switch is capable of handling a contact current of 50mA and uses a momentary operation suitable for temporary control signals.

This wireless push button uses a sub-GHz band for communication, eliminating the need for batteries or power supply by generating power from the button operation itself. The colored LEDs provide clear operational feedback and enhance operator interaction under various lighting conditions. Its robust standards compliance includes EN 300 220-1/-2, EN 301 489-1/-3, IEC 623680-1, and EN 62368-1, ensuring compatibility and safety compliance in industrial settings.

Applications include signaling ON/OFF status, issuing instructions to automated or manned guided vehicles, and controlling machine operations such as stopping or opening doors. The wireless design and high interference resistance at 922.5 MHz frequency band support reliable operation in challenging environments.

This product is made in Japan and represents a high-quality solution for industrial, laboratory, manufacturing, and automation control panels. Omron’s A2W series illuminated push button units provide wireless reliability combined with user convenience for diverse industrial uses.

Explore more in the Push Button Complete Unit category for compatible and complementary controls at EnvMart. This unit features a yellow actuator color for easy identification. The switch operates momentarily, ideal for temporary control signals.

LED illumination in green, red, and yellow enhances visibility and status indication. Designed with a wireless terminal type for flexible installation. Rated IP65, providing dust-tight and water resistance suitable for industrial environments.

Operating temperature range from -10°C to 55°C ensures reliable performance in varied conditions. Compact dimensions of 65mm height and 42mm width fit standard control panels. Switch contact current rating is 50mA for low power switching applications.
