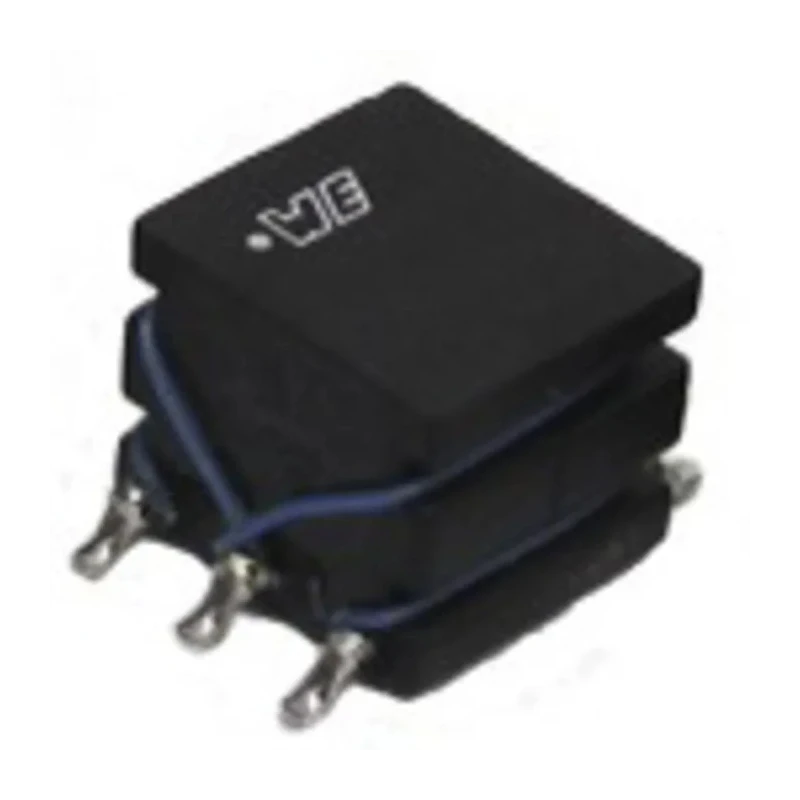

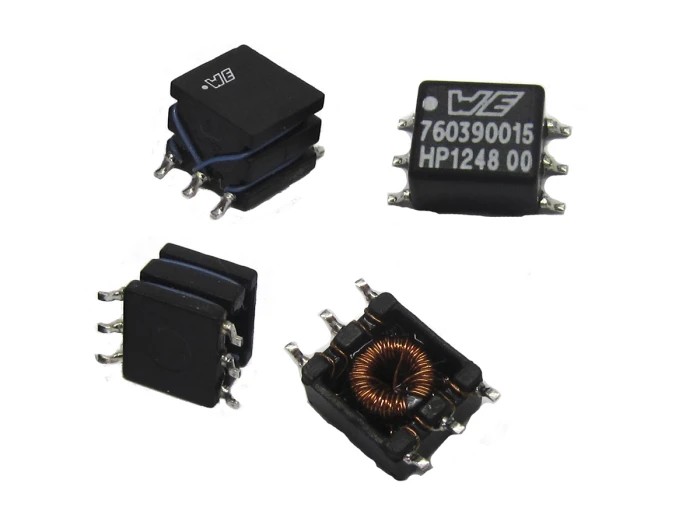

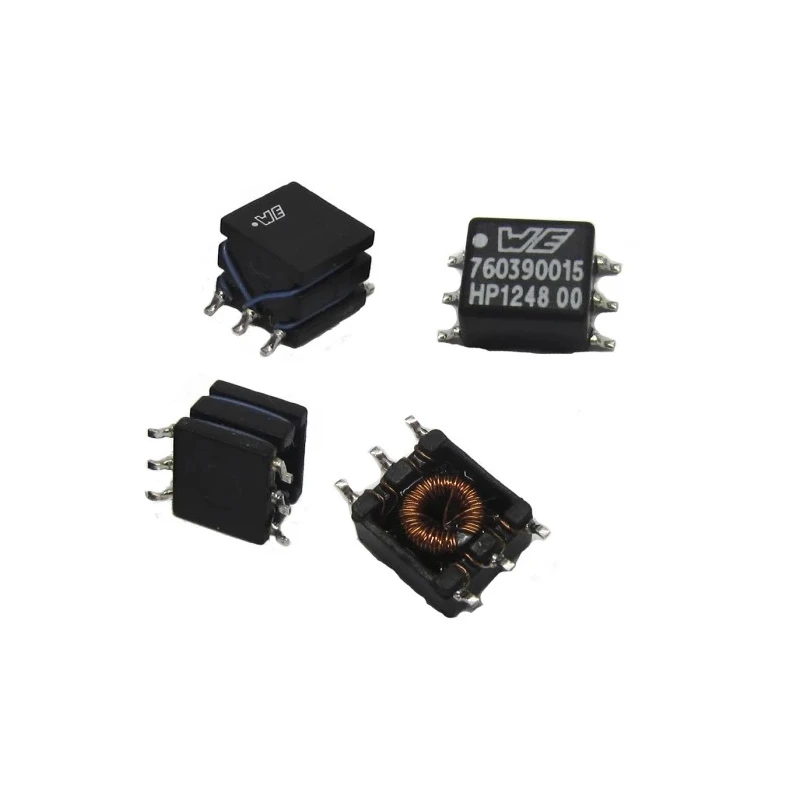

Wurth Elektronik 5 V dc 1 Output Surface Mount PCB Transformer UL6681CSA6681 Model 750313734
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Length | 8mm |
| Depth | 9.14mm |
| Operating Temp | -40°C to 125°C |
| Width | 7.62mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | LAN |
| Number of outputs | 1 |
| Standards/Approvals | UL6681CSA6681, CSA, REACH, IEC6681, Free JEDEC JS709B, IEC6180051, IEC606641, EN6681, RoHS, cULus Approva, ASNZS668.1 and J6681 |
| Number of Pins | 6 |
| Primary Voltage | 5 V dc |
| Secondary Voltage | 5 V dc |
| Minimum Operating Frequency | 250kHz |
| Maximum Operating Frequency | 550kHz |
| PCB Transformer Current | 350mA |
Key Features
- Features a compact size with dimensions 8 mm length, 7.62 mm width, and 9.14 mm depth.
- Operates at a frequency range of 250 kHz to 550 kHz for versatile applications.
- Supports a PCB transformer current of 350 mA suitable for low power circuits.
- Designed to operate within a temperature range of -40°C to 125°C ensuring durability.
- Surface mount type with 6 pins for easy PCB integration.
- Complies with multiple international standards including UL6681, CSA6681, REACH, IEC6681, RoHS, and others.
- Ideal for isolated interface power supplies used in industrial automation, medical equipment, and communication interfaces like CAN, RS-485, and LAN.
- Manufactured in China with a new product condition status.
Product Description
Wurth Elektronik 750313734 5 V dc 1 Output Surface Mount PCB Transformer is engineered for high performance in industrial and electronic circuits. With a compact footprint of 8 mm length, 7.62 mm width, and 9.14 mm depth, this surface mount transformer is designed to deliver reliable power isolation and signal integrity.
It operates efficiently between 250 kHz and 550 kHz frequencies, making it suitable for switching power supplies and high-frequency applications. The transformer supports a PCB transformer current rating of 350 mA, providing adequate current capacity for various low-power electronic systems.
Designed for robust industrial use, it withstands operating temperatures from -40°C to 125°C, ensuring stable performance even in harsh environments. The surface mount design with 6 pins allows for seamless PCB assembly and integration into compact device layouts.
This PCB transformer complies with a comprehensive set of safety and environmental standards including UL6681, CSA6681, REACH, IEC6681, Free JEDEC JS709B, IEC6180051, IEC606641, EN6681, RoHS, cULus Approval, ASNZS668.1, and J6681, which validates its quality and reliable safety credentials.
Compact size with 8 x 7.62 x 9.14 mm dimensions. Frequency range of 250 kHz to 550 kHz. 350 mA transformer current rating. Wide operating temperature from -40°C to 125°C. 6-pin surface mount configuration. Multiple international safety and environmental approvals.
Suitable for isolated interface power supplies and industrial automation. Manufactured in China with new product condition.
This transformer is widely used in industrial automation, process control, medical instrumentation, PLC analog and digital modules, isolated gate driver power supplies, AC motor drives, uninterruptible power supplies (UPS), solar inverters, polyphase energy meters, and protection relays. Its design supports reliable performance in demanding electrical and electronic environments.
Choose Wurth Elektronik products for precision and trusted industrial-grade electronic components. Browse the EnvMart catalog for more PCB Transformers and related power supply components designed for optimal performance and integration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a compact size with dimensions of 8 mm in length, 7.62 mm in width, and 9.14 mm in depth.
It operates efficiently within a frequency range of 250 kHz to 550 kHz, suitable for high-frequency applications.
The transformer supports a PCB transformer current rating of 350 mA, making it suitable for low power circuits.
It is designed to operate within a temperature range of -40°C to 125°C, ensuring stable performance in various environments.
This unit features a 6-pin configuration for easy surface mount integration onto PCBs.
It complies with multiple standards including UL6681, CSA6681, REACH, IEC6681, RoHS, and others, validating its safety and environmental credentials.
This model is designed as a surface mount type, facilitating easy integration into compact device layouts.
It is ideal for isolated interface power supplies used in industrial automation, medical equipment, and communication interfaces like CAN, RS-485, and LAN.
The primary voltage rating for this model is 5 V dc, suitable for various electronic systems.
The secondary voltage rating is also 5 V dc, providing consistent output for low power applications.
This transformer is manufactured in China, ensuring compliance with international standards.
The maximum operating temperature for this model is 125°C, allowing it to function effectively in high-temperature environments.
