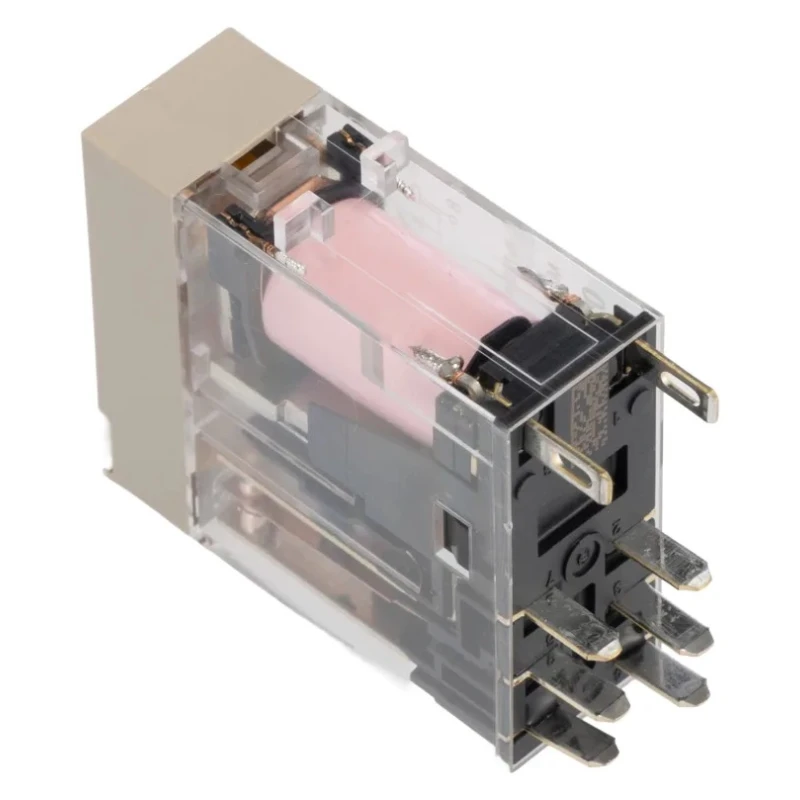

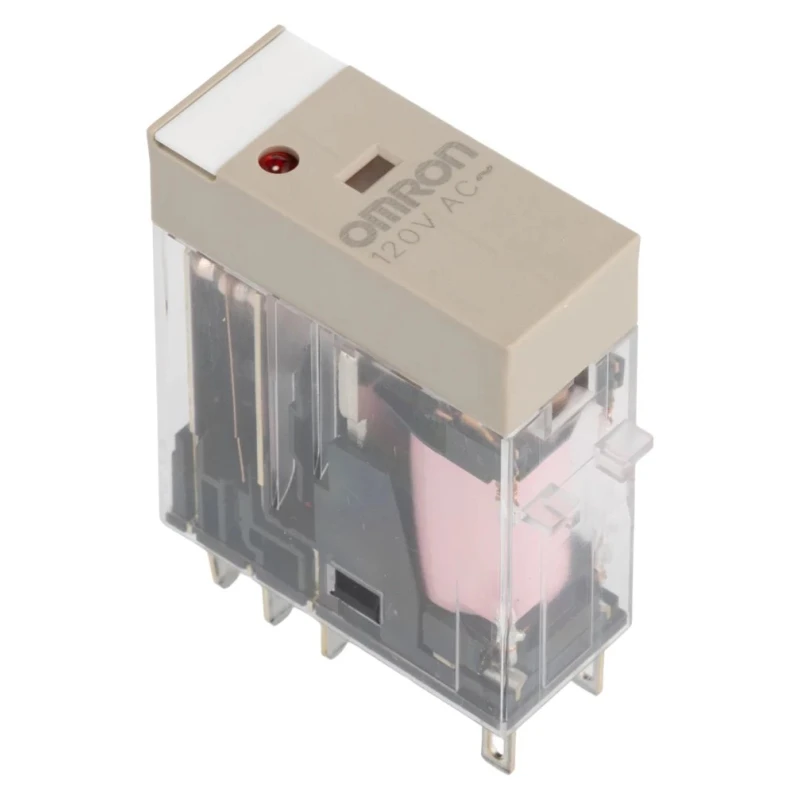

Omron Power Relay, DPDT Contact Configuration, 120V AC Coil Voltage, 5A Switching Current, Plug-In G2R-2-SN 120VAC (S)

Omron G2R-2-SN 120VAC (S) is a high-performance power relay designed for industrial automation and electrical control systems. It features a dual pole double throw (DPDT) contact configuration, a coil voltage of 120V AC, and supports a switching current of 5A. This plug-in type relay from the renowned G2R series offers efficient and reliable circuit switching in a compact form factor measuring 29mm length, 13mm width, and 35.5mm height.

This relay supports high switching power up to 10A per pole, making it suitable for demanding industrial and manufacturing applications. Its self-diagnostic function helps in identifying coil disconnections early, improving system reliability. The contact material used is AgSnIn, ensuring durability and extended operational life under various electrical loads.

Compliant with multiple international safety standards including UL 508, CSA 22.2 No.0, IEC/VDE EN 61810-1, and CE marking, this relay delivers dependable performance in control panels, relay logic circuits, and timed control applications. Its capability to operate within a wide temperature range from -40°C to +70°C makes it suitable for diverse environmental conditions.

The relay supports a maximum switching voltage of 440V AC and 125V AC, and can handle inductive loads up to 5A at 250V AC, allowing flexibility across different electrical load types. Plug-in terminals facilitate straightforward installation and replacement, enhancing maintenance efficiency. Compatible with push-in Plus sockets, it simplifies electrical arrangements in complex control systems.

Supports high switching power up to 10A per pole. Self-diagnostic function detects coil disconnection. High-quality AgSnIn contact material for longer life. Compliance with UL 508 and international standards. Compact plug-in design for easy installation.

Suitable for relay logic and control panel circuits. Wide operating temperature range from -40°C to +70°C. Max switching voltage: 440V AC and 125V AC. Rated for inductive loads up to 5A at 250V AC. Compatible with push-in Plus sockets.

Widely used in industrial automation, manufacturing, HVAC, and electrical control systems, the Omron G2R-2-SN 120VAC (S) power relay ensures reliable switching and operational safety in critical applications. Explore more Power Relays and Omron automation products on EnvMart for your comprehensive control system needs.
